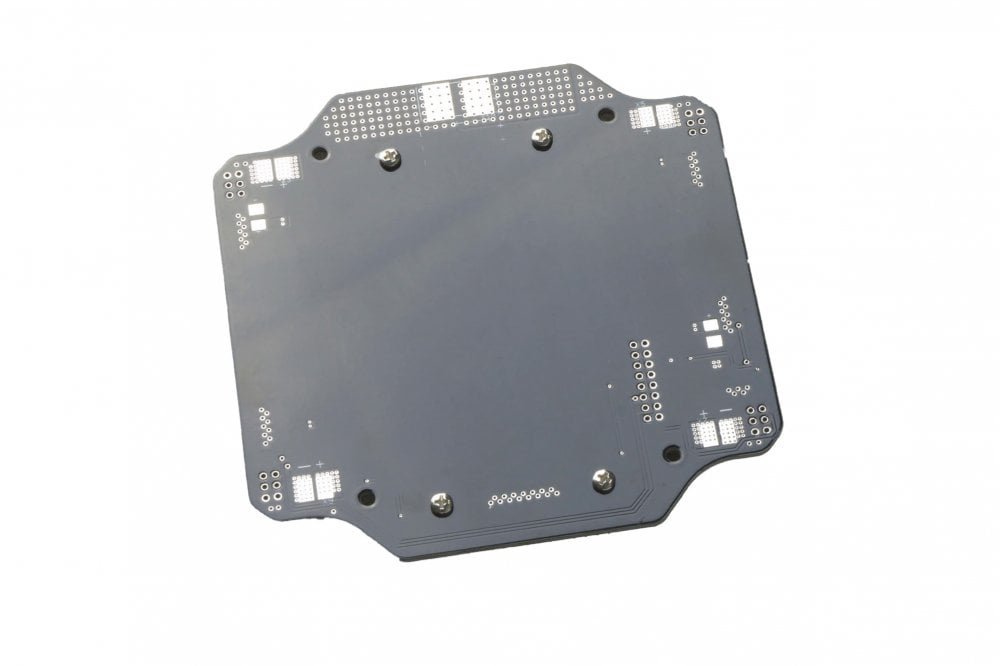

AIRBOT SYSTEMS Airbot- Power Distribution Board 180A – X8

Thepower distribution boardis the most reliable solution for connecting motors through ESCs. The Airbot Systems board can connect up to 8 motors and can handle up to180 Amps.

Airbot Systems' distribution board not only simplifies the connection of ESCs, but also greatly reduces the number of cables and wires. Installation on a guarantees a much cleaner aesthetic result.

The dimensions of the board allow the autopilot to be installed directly on it.

The distribution board is compatible with many flight controllers, such as the Pixhawk 2.1 (a slot with the mounting holes is present on the board), but also with other systems, such as DJI flight controllers.

This Package Contains:

• 1 x PDB, 180A – X8

Technical Characteristics

• Dimensions: 114 x 115 mm

• Mounting Hole Dimensions: 65 x 85 mm

• Weight: 65g

• PWM Distribution: Yes (8 signals)

• Compatible Autopilots: Pixhawk 2.1, Pixhawk, APM, DJI, others

• Max. Current: 180A

• Number of engines: 8 motors max

• Battery connection: 2 batteries in parallel

• Pads connection accessories: 4 (2 above / 2 below)
