AIRBOT SYSTEMS - Mini PDB Pro V2 200A

The MINI PDB PRO v2 1200A is the most efficient set to integrate a Cube into a vehicle. This set grants a high level of connectivity in a very compact size. Equipped with a PDB integrating two voltage converters (5V3 & 5V3/12V), current and voltage sensors, this set provides all the environment necessary for a complete setup, and in an ultra compact format.

**200 Amp version**

The Pro version integrates a power distribution board which includes two voltage converters, a current sensorand a voltage probe. This very compact set includes all the elements necessary to accommodate a Cube, allows easy assembly and significant space saving.

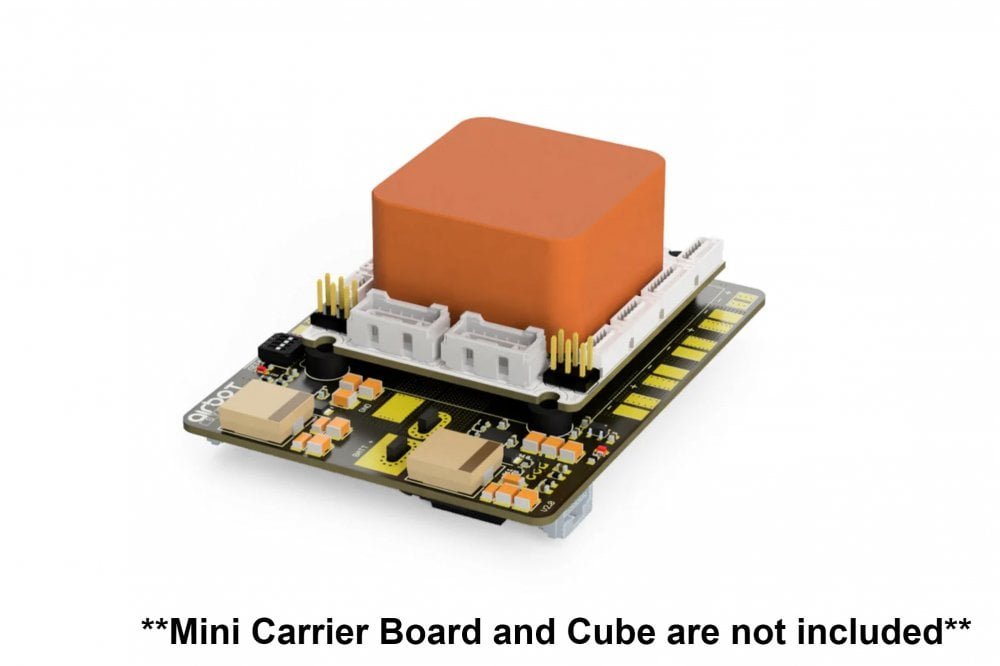

*Airbot Mini Carrier Board and Cube not included**

Mini Distribution Board Pro 200A:

• Dimensions: 65.5*85mm (2.58*3.35 inch)

• Weight: 44gr (0.097lb)

• Max current: 100A / 200A

Power supply 1:

• Output voltage: 5.3V

• Max output current: 3A (4A peak tolerant)

• Max voltage input: 50.4V (12S)

Power supply 2:

• Output voltage: 5.3V or 12V

• Max output current: 3A (4A peak tolerant)

• Max voltage input: 50.4V (12S)

TOTAL weight: 68g / 0.150lbs

Design, quality control and packed in France

Manufactured in China

For more information, please see https://airbot-systems.gitbook.io/airbot-public-wiki/combo-pro/v-2.0

Package contains:

• 1 x Airbot Mini PDB Pro V2 200A
