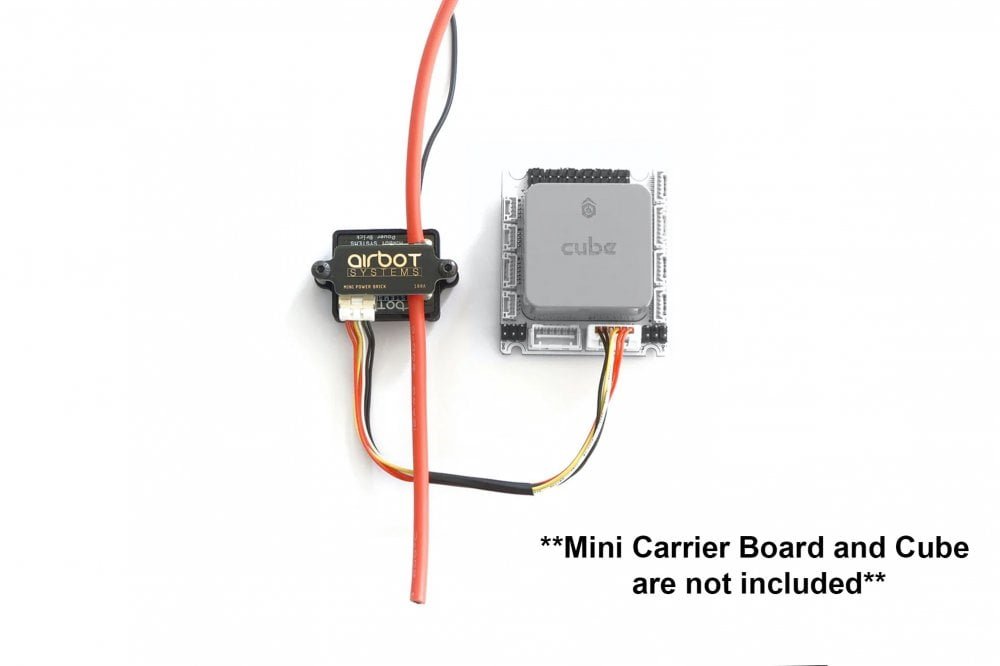

AIRBOT SYSTEMS - Mini Power Brick 100A

Airbot Systems Mini Power Bricksencapsulate a highquality switch voltage regulatorthat can supportup to 12S voltage and 3Acontinuous power out. It has been developed to be as compact as possible and can be installed in any kind of RC model.

TheMini power bricksintegrates built in voltage and current sensing. The voltage & current information are used to determine the consumed power, and to estimate remaining battery capacity. This in turn allows the flight controller to provide failsafe warnings and other actions in the event of low power.

Specifications

• Overall dimensions: 44*27*17.6mm

• Mounting holes diameter: M3

• Mounting holes distance: 38mm

• Weight: 31g

• Power supply max voltage input: 12S

• Power supply max current output: 3A

• Power supply max peak current output: 4A (

• Voltage sensing: Up to 12S

• Current sensing: 100A

Package contains:

• 1x - Airbot Systems Mini Power Brick

• 1x - Cable
