AS150-Male - Red - Anti-Spark

Code: AM-B-01-01-AS150-M-RED-AS

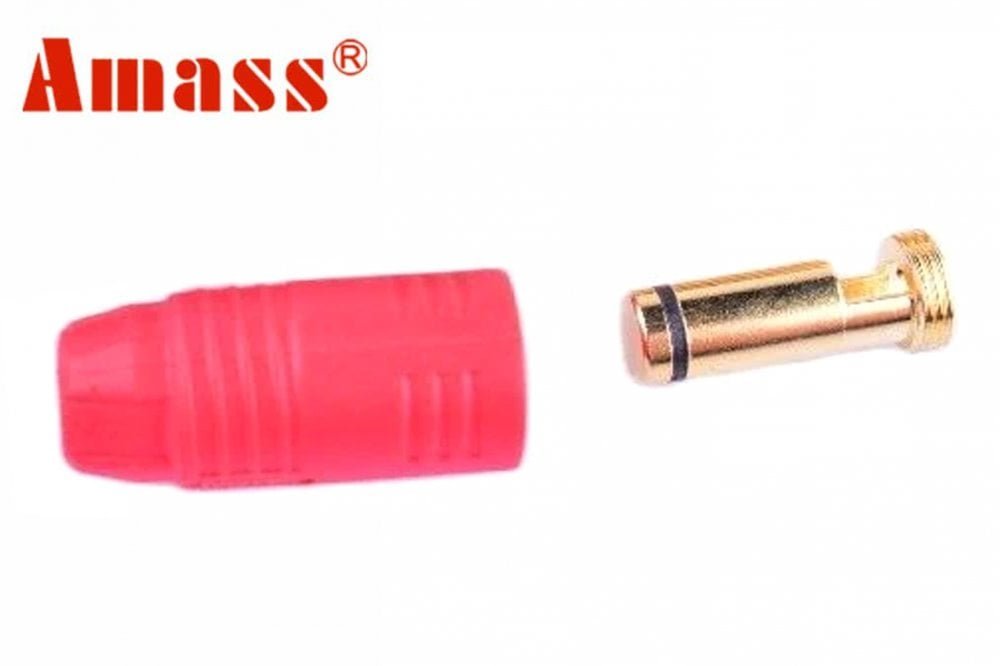

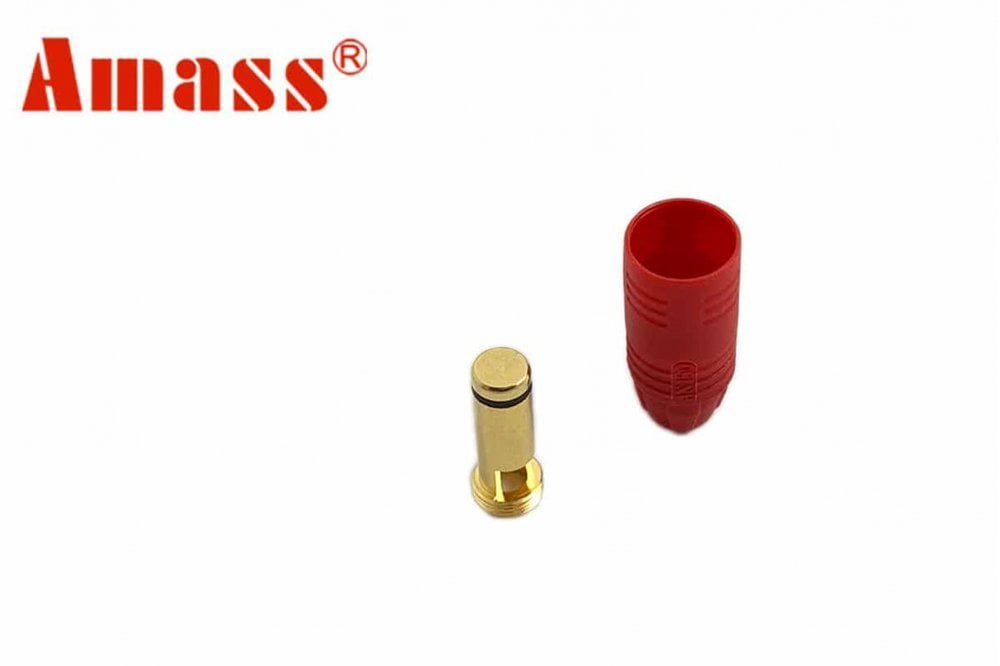

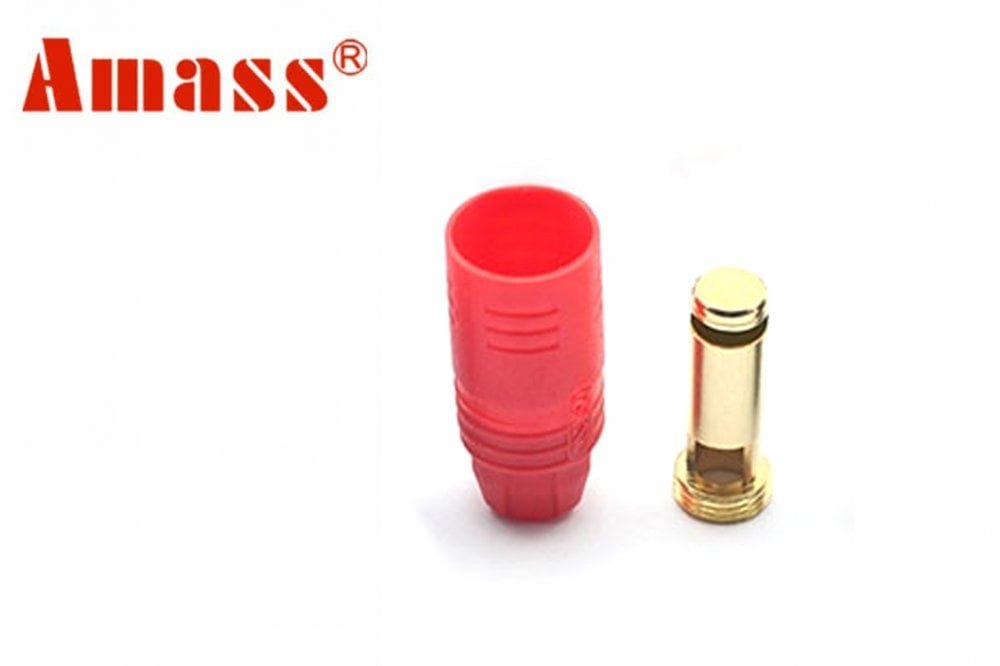

AS150 manufactured by AMASS 1 x AS150 Male Red Anti-Spark

Specification:

Manufacturer: Amass

Model: AS150

Connector: plug

Type of connector: DC supply

MPN: AS150-F.G2.R

Operating Temperature: -20°C to 120°C

Wire Size: AWG 6.00

Housing Material: Polyamide

Gender: Male

Voltage Rating: 500V

Contact Material: Gold Plated Brass

Mechanical mounting: for cable

Electrical mounting: soldering

Colour: Red

Current Rating: 60A

Number of Poles: 1

Size: 7mm Bullet

Application: for power transfer, chargers, and other high-voltage battery

Product Advantages:

1.Large size 7mm, gold plated, resistance to high current, patented anti-arcing design for high-voltage battery.

2.The shell is made of durable injection moulded nylon super, super retardant from the fire is put out

3.Newdesign, when welding wire counterparts slot design, safety wire does not melt.

Includes:

1 X Amass AS150 Male Anti-Spark 7mm Connector

1 X Amass AS150 Male Enclosure
