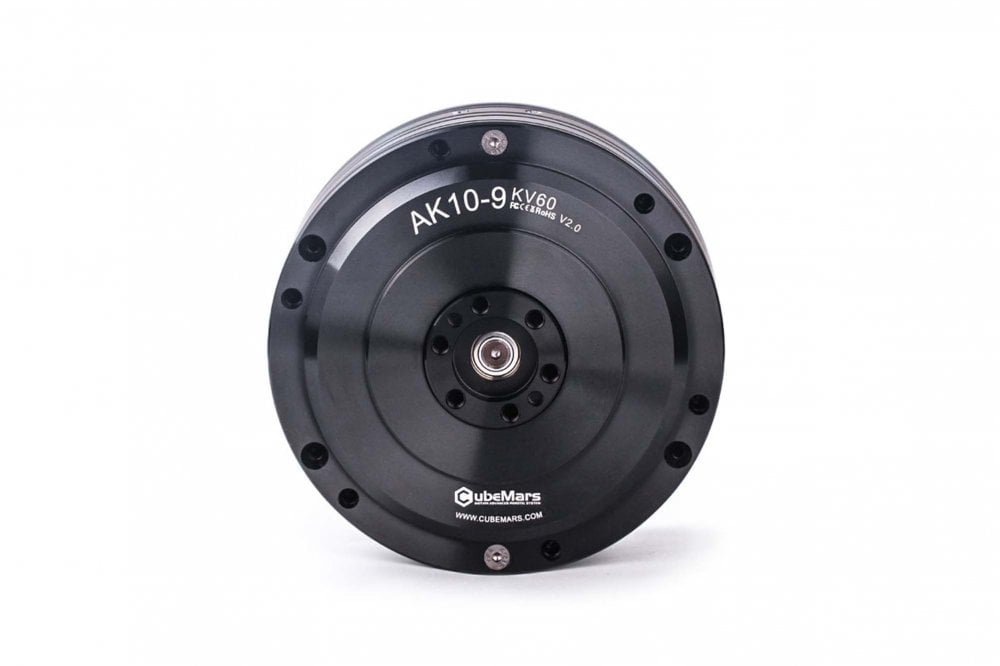

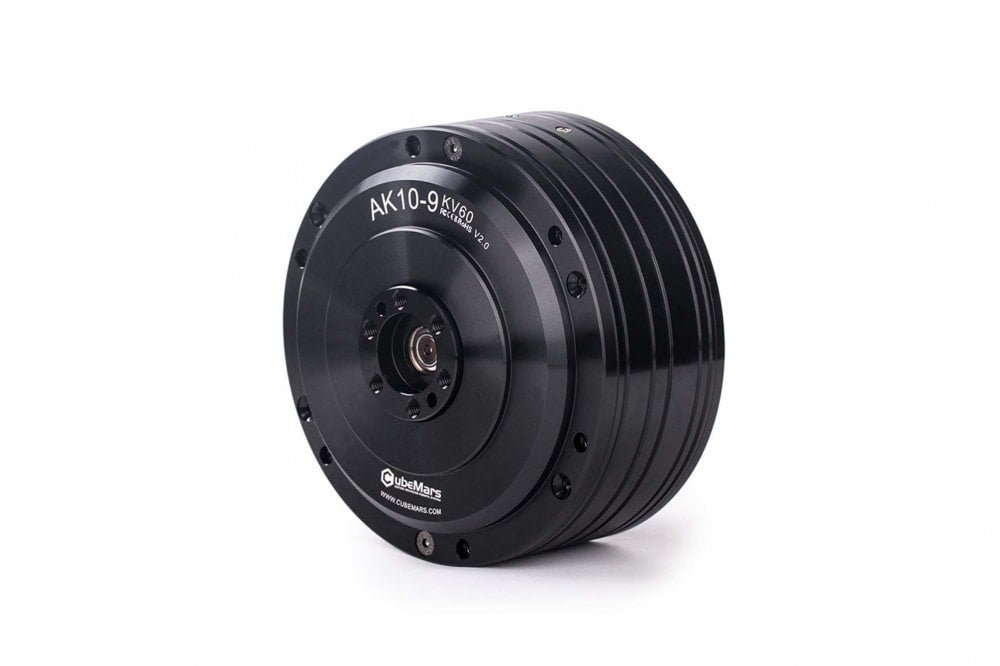

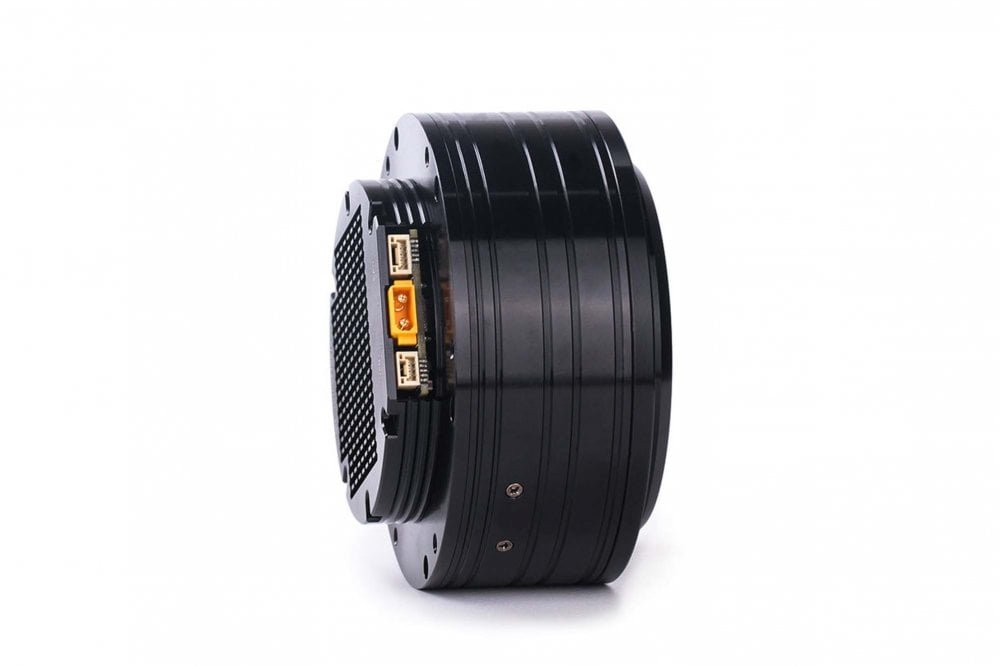

CubeMars - AK10-9 - KV60

Code: CM-AK10-9-KV60

The AK10-9 V2.0actuator integrates a high-performance brushless DC motor, a self-developed planetary reducer, an encoder, and an integrated drive, enabling smooth operation with high torque.

Utilizing a portable drive solution, the AK10-9 V2.0 Power Module supports both servo and MIT modes. It breaks away from conventions by achieving synchronized control of position, velocity, and acceleration, adapting to PID settings automatically and eliminating complexity to reach the target efficiently. CubeMars offers highly customizable motor modules.

Features:

• 6-8S MIT Power

• Highly integrated

• MIT power and servo control modes

• Input & output dual encoders

• Rated torque 18Nm

• Peak torque 48Nm

• Max speed 26rad/s

Specification:

• Operating Voltage: 48V

• Rated Torque: 18Nm

• Rated Speed: 220rpm

Package contains:

• 1x CubeMars- AK10-9 - KV60 Motor with / without Driver
