CUBEPILOT - Kore Carrier board for Cube Autopilot (HX4-06038)

CubePilot- Kore Carrier board for Cube Autopilot (HX4-06038)

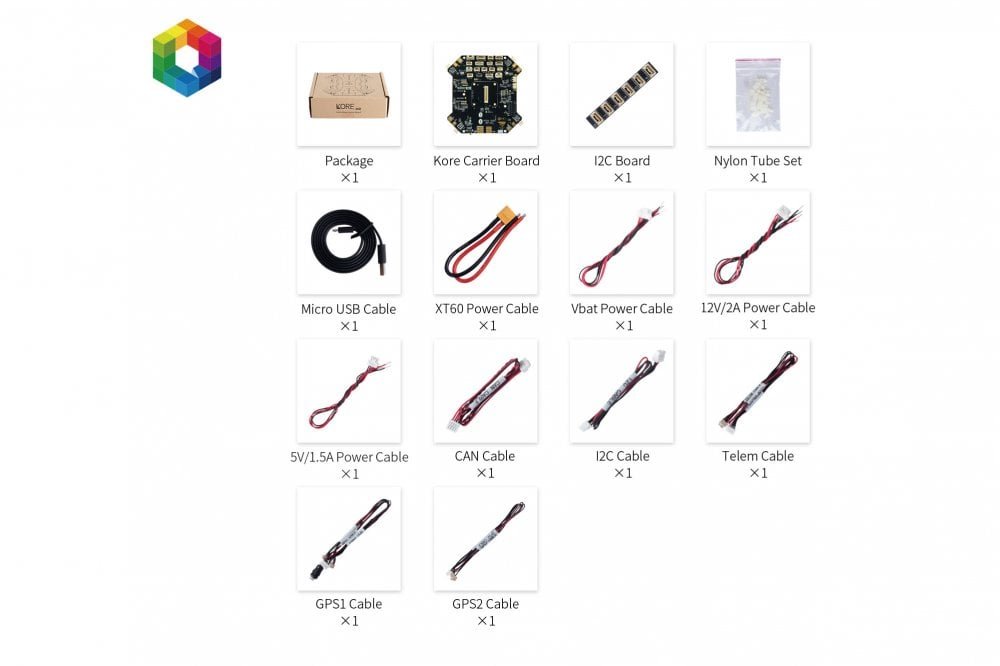

Package Contains:x1 Kore Carrier Board

Note- This carrier board for the Cube autopilot (The Cube is not included), providing a convenient layout for RC model (specifically Quads), Octocopters and Octo-Quads (X-8s)

Overview:

The primary purpose of the Kore Carrier Board for The CUBE is to reduce the rat’s nest of wires and modules typically associated with a assembly. It provides built-in power distribution, redundant power supplies for the autopilot, built-in fail-over power selection, a separate load power regulator, and many other features.

While this carrier board is geometrically optimized for quadcopters, X8 configurations, and octocopters, it provides connections for every function of The CUBE autopilot. Therefore, this board can be integrated into any vehicle type that is supported by The CUBE, including all other frame types, plane, rover, sub, and antenna tracker.

Features At-A-Glance

• Up to 12-cell Lithium battery (50.4V)

• 140A continuous current with 280A surges

• Power and signal for ESCs conveniently located in corners

• 12V navigation light power available at each corner

• Built-in power distribution

• Built-in voltage and current sense

• Redundant power supplies for flight critical components

• Load connectors with resettable fuses for 5V, 12V, and direct battery power

• Good power and error indicator lights

• Built-in buzzer with volume control

• Connectors for every function of The CUBE

• Easily accessible PWM voltage level selector (3.3V or 5V)

• Resistant to ground bounce on PWM signal

• Connector-compatible with standard ProfiCNC carrier board

• Connector ports for debugging IO and FMU processors

Standard Cables:

• 4-pin JST GH

• 6-pin JST GH

Load Power Cables:

• 4-pin Clik-Mate 1.25mm (for 5V load power)

• 5-pin Clik-Mate 1.25mm (for 12V load power)

• 6-pin Clik-Mate 1.25mm (for battery load power) NOTE: Pixhawk 2.1
