EC3 Connector - 10 Pairs

Code: AM-B-03-01-EC3-PR-X10

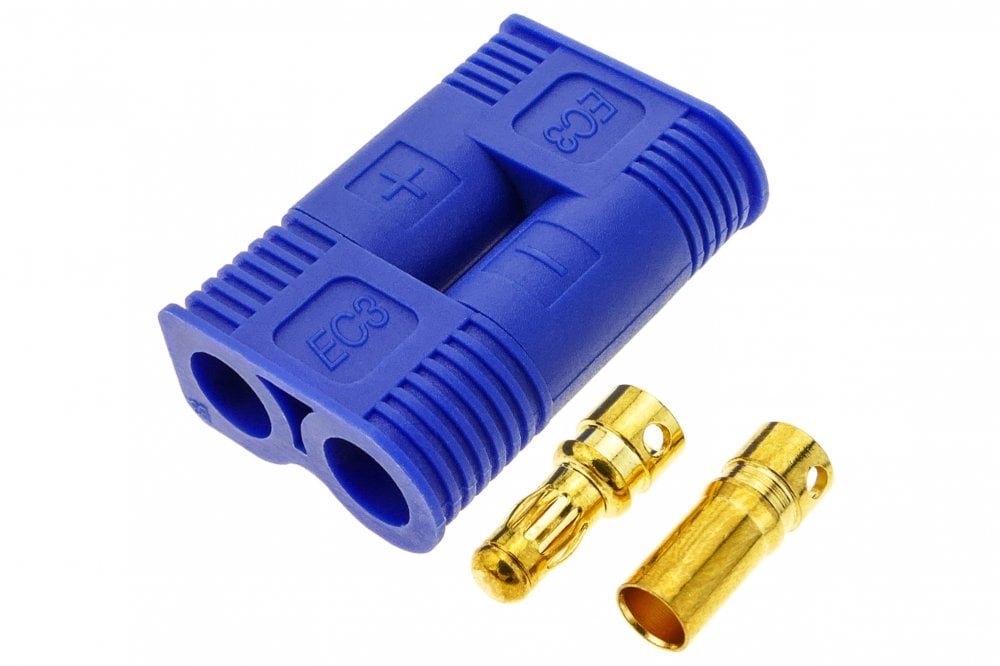

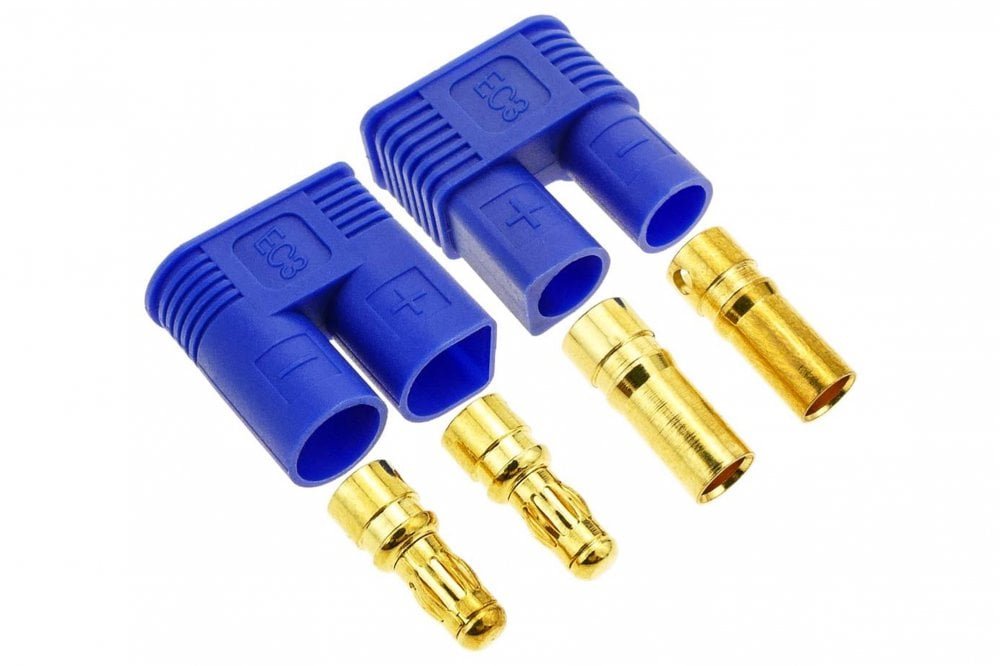

Amass EC3 Connector

Specification

Manufacturer:AMASS

Connector:plug

Type of connector:DC supply

Connector series:EC3

Kind of connector:male and female

Number of pins:2

Mechanical mounting:for cable

Electrical mounting:soldering

Contact plating:gold flash

Colour:blue

Current rating:25A

Flammability rating:UL94V-0

Operating temperature:20...120°C

Rated voltage: 500V

Spatial orientation: straight

Contact material:brass

Mechanical durability:1000 cycles

Body material:polyamide

Wire size:12AWG

Includes:

10 X Amass EC3 Male

10 X Amass EC3 Female
