Gremsy - AEVO

Code: GREMSY-GIMBAL-AEVO

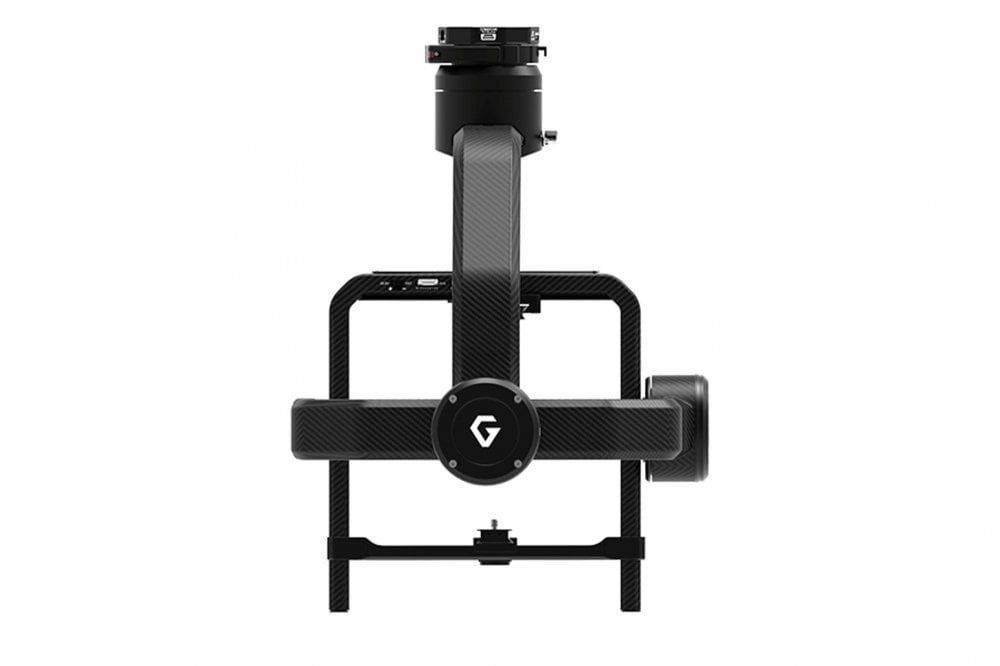

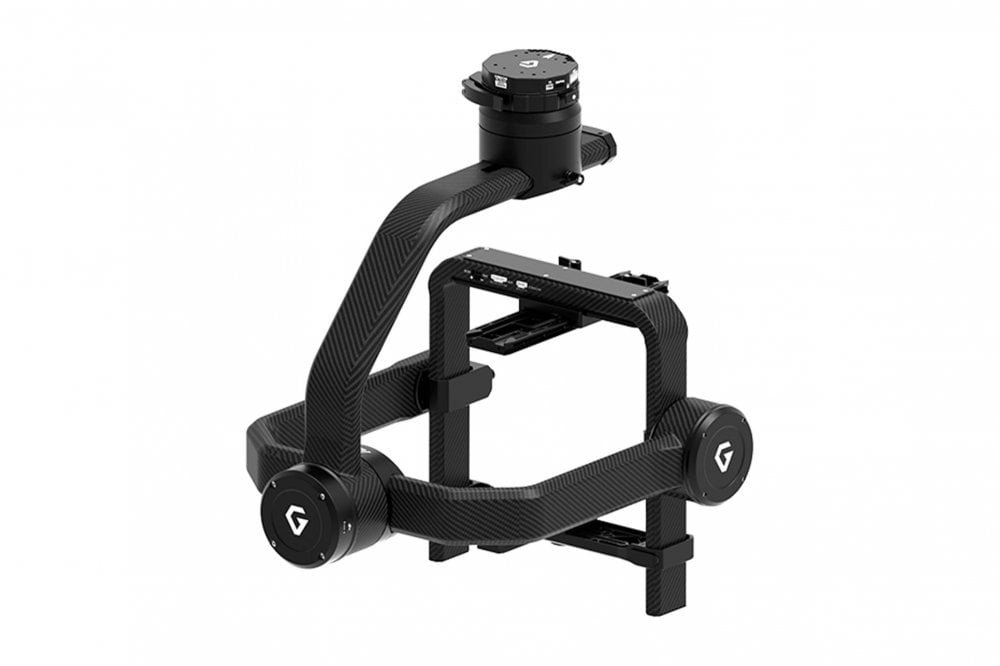

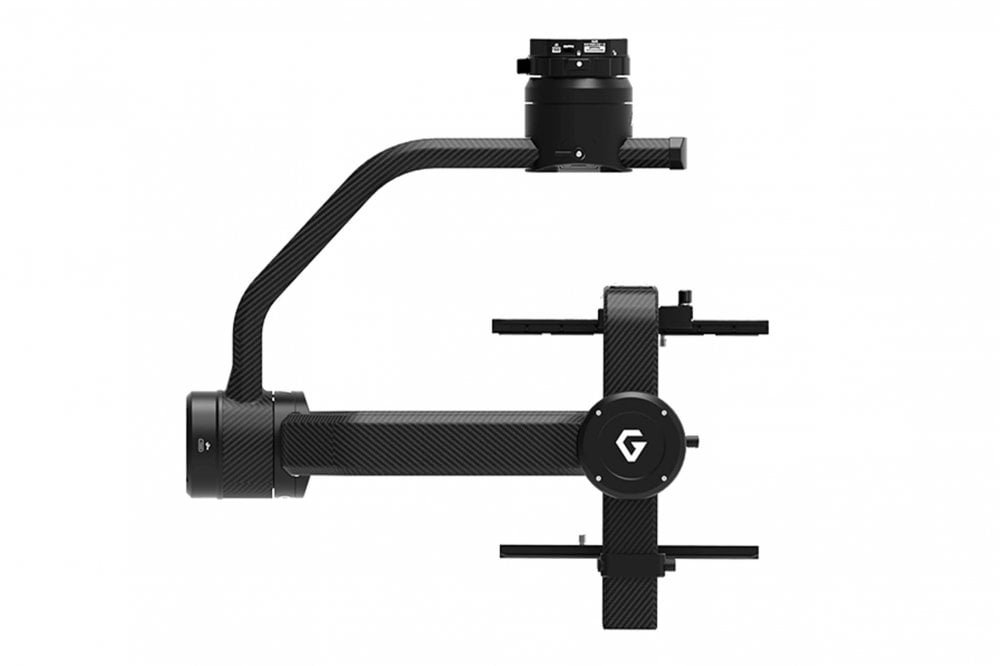

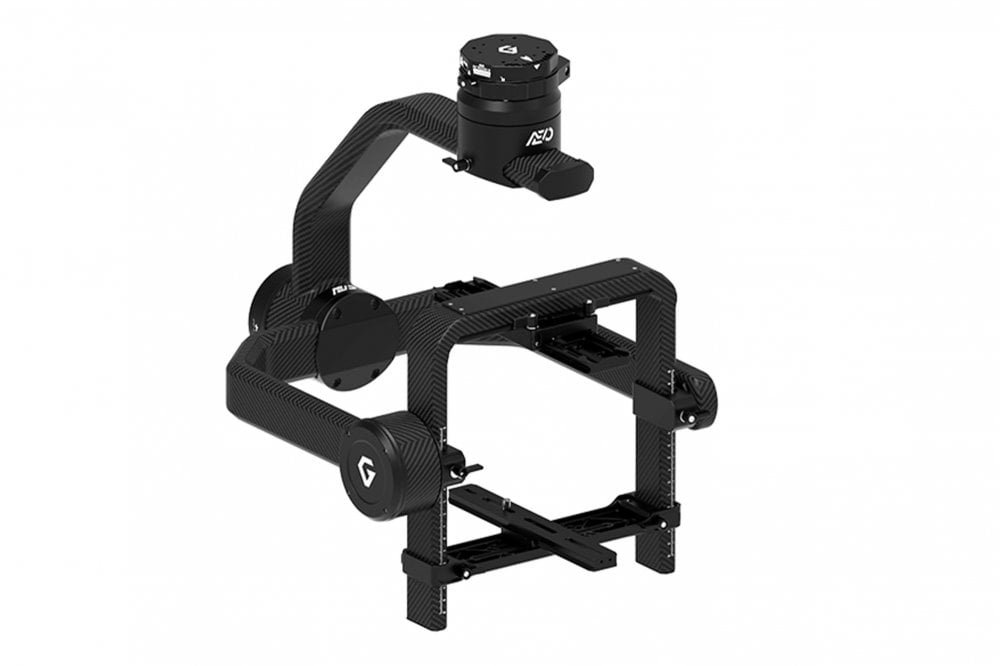

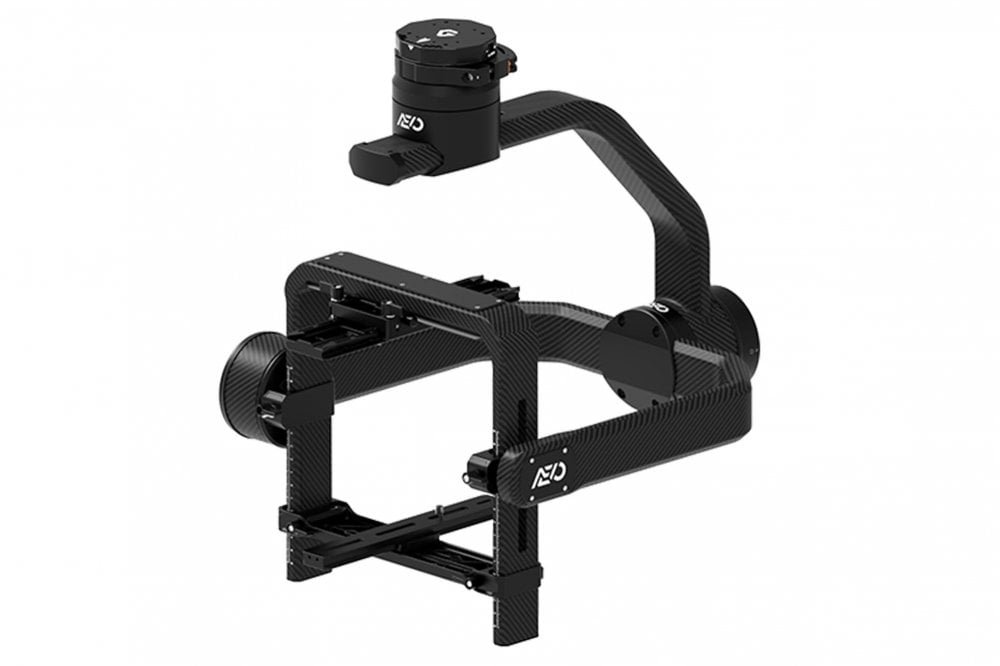

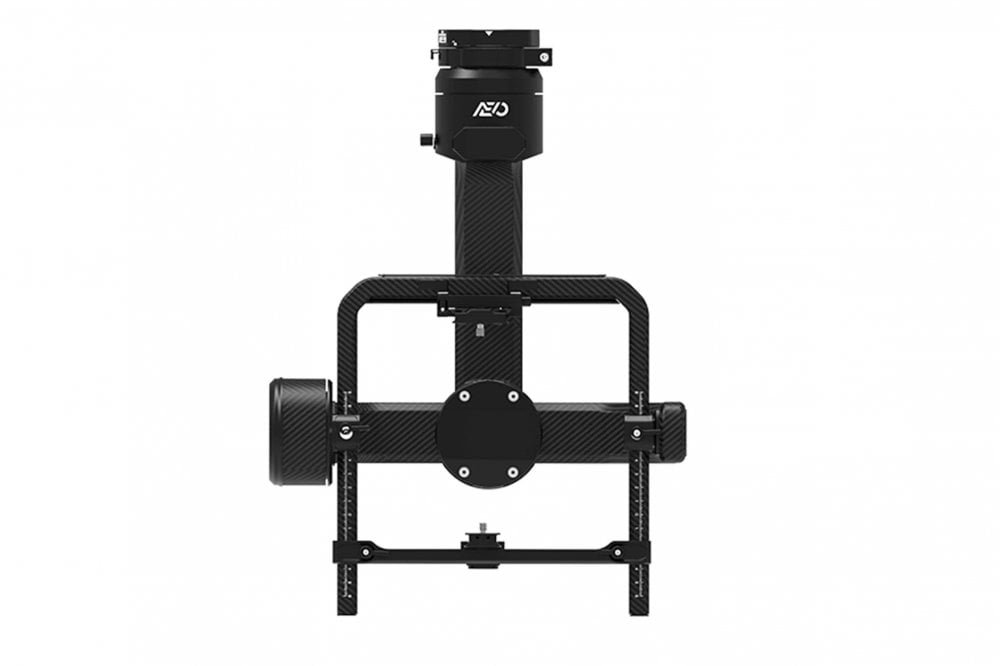

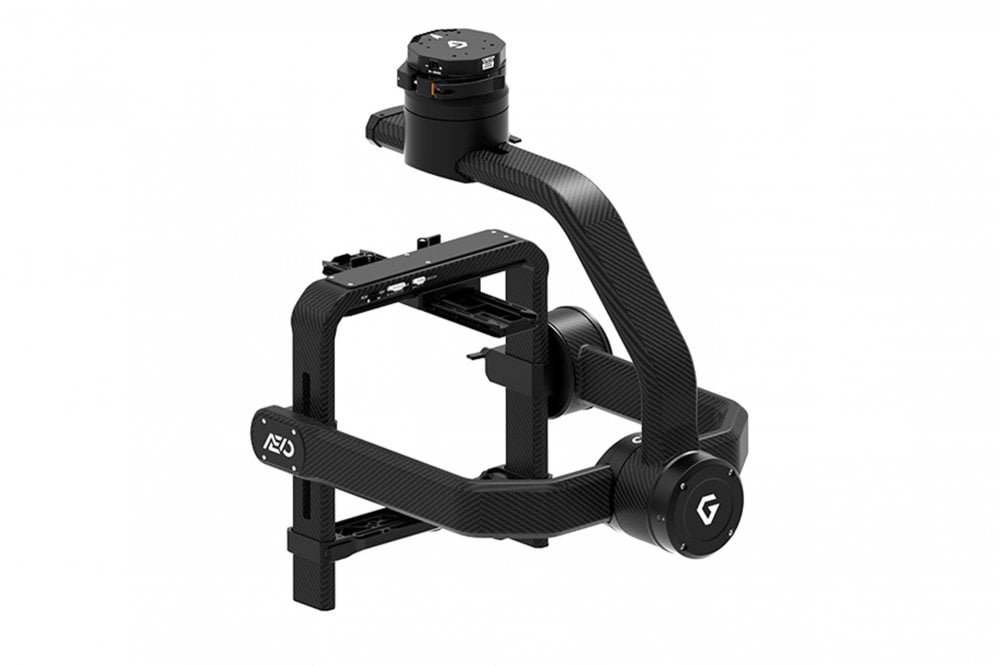

Aevo is the next generation of heavy-lifting gimbal boasting a sturdy carbon frame construction, high encoder resolution, and high-torque brushless motors to handle massive sensors for industrial uses.

AEVO Manual

Specifications

• Product NameAEVO

• System Type3-Axis Camera Stabilizer

• Weight5.8 lbs (2.63kg)

• ConstructionCarbon & Aluminum

• Input Voltage24-52VDC

• ConnectionUSB 2.0, CAN, UART, S-bus, Spektrum, PPM, Bluetooth 4.0

• OS Platform SupportedWindows 10 or above; macOS 12.0 or above

• Single Operator On/OFF, Lock Mode, Follow Mode, Mapping Mode

• Pan RangeNo limit

• Tilt Range±120°

• Roll Range± 45°

Package contains

• 1 x AEVO Gimbal

• 1 x AEVO Quick Release

• 1 x USB-C Cable

• 1 x PWT Cable

• 2 x Auxiliary Cable

• 2 x COM2/COM3 Cable

• 1 x Sbus Cable

• 1 x Power Supply Cable

• 1 x DJI A3 Cable

• 1 x Allen key 3mm

• 1 x Allen key 2.5mm

• 1 x Allen key 2mm

• 1 x Allen key 1.5mm

• 6 x M4 x 10

LIGHT AND STURDY CARBON CONSTRUCTION Aevo features a sturdy carbon frame construction and improved mechanical design, which helps to boost the gimbal's rigidity while keeping it as light and compact as possible.

BUILT FOR MASSIVE LOAD With large camera cage and high-torque brushless motors, Aevo can effortlessly carry massive load up to 9 kg, ideal for industrial cameras of HySpex, Specim, iXM series.

OPERATION MODE -Load can be installed on either the top or bottom of the gimbal depending on your specific applications.

RELIABLE AND SECURE QUICK RELEASE- Incorporating both mechanics and electronics, Aevo's quick release not only provides a secure way to install the gimbal under your RC model, but also enables seamless data transmission throughout the entire system.

360° CONTINUOUS PANNING CAPABILITY- Allowing the camera to instantly capture every possible angle of the object, Aevo boasts a high-speed 360° infinite panning capability.

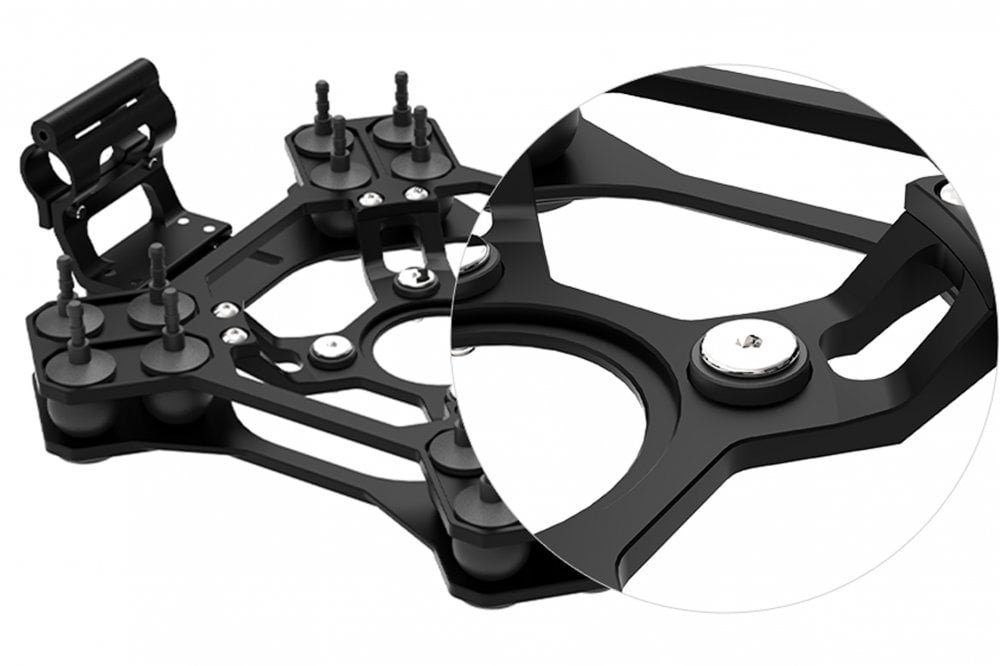

SUPPORT M600 AND CUSTOM RC MODELS- Aevo is an easy-to-install camera stabilization designed for M600 and Pixhawk-based RC models using its unique dampening system. Click HERE for further information regarding Aevo's damping dimension.

SDK INTEGRATION Aevo supports SDK and MAVSDK via COM 2 port connection, allowing users to manage the gimbal and seamlessly integrate it into their solutions and applications.
