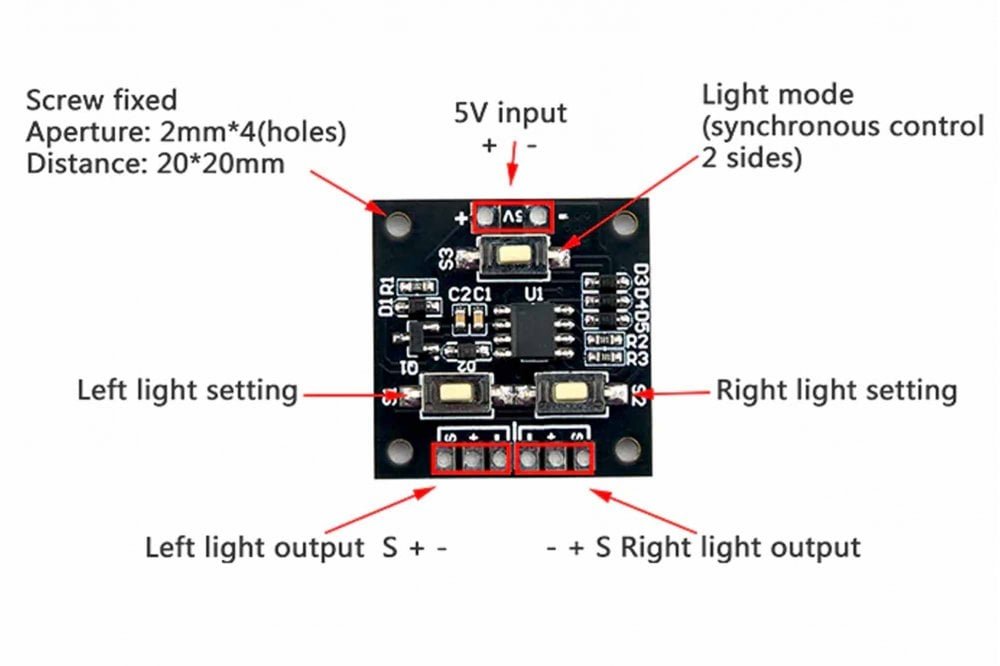

Hee Wing T1 Ranger/F01 RGB 1.0 Full-colour Driver plate

Code: HW-01-07-RGB-Driver-Plate

Specification

• Product name: Full-colour Driver plate

• Dimension: 25MM * 25MM

• Installation Distance: 20MM*20MM

• Fixed aperture: 2MM * 4 (holes)

• Operating voltage:

• Input: 4V~12V

• Output: 4V~12V

• Drive capability: 200 light bead (Left 100 / Right 100)

Light mode: 5 modes to set by press button

1. Always bright mode. Left and Right button can individual setting different colour for corresponding side in Always on mode. Total 8 colour options (Including off)

2. Slow flash mode. Left and Right button can individual setting different colour for corresponding side in Slow flash mode. Total 8 colour options (Including off)

3. Burst Flash Mode. Left and Right button can individual setting different color for corresponding side in Burst flash mode. Total 8 color options (including off)

4. Breathing light mode. Left and Right button can individual setting different colour for corresponding side in Breathing light mode. Total 8 colour options (including off)

5. Flowing Water mode. Left and Right button can individual setting different colour for corresponding side in Flowing Water mode. Total 8 colour options (including off)

Left and Right button can individual setting different colour for corresponding side, totally 8 kinds of colour are: White, purple, indigo, blue, yellow, red, green, off.

Note:The driver plates input voltage and output voltage are the same, so please choose the same voltage RGB light to avoid any equipment injury or anomaly working

Package contains:

• 1 x Full-colour RGB Driver plate
