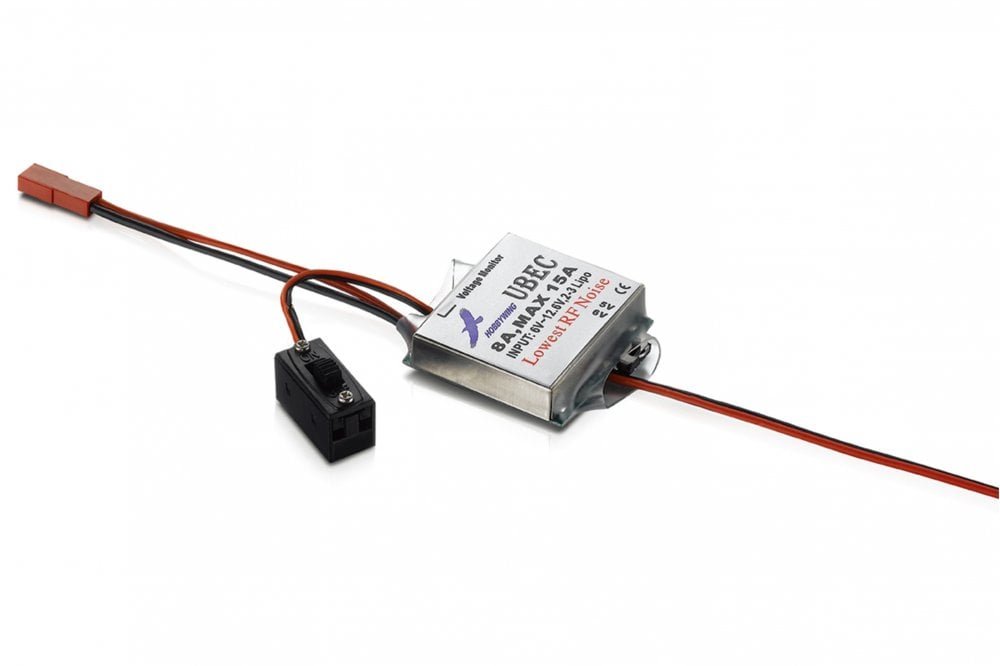

Hobbywing - 8A UBEC 5V/6V switchable (2-3S)

Code: HBW-01-08-UBEC-8A-3S

Hobbywing 8A (max 15A) UBEC 2-3S switchable 5v or 6v

This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from 2-3S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and keeps providing the stable current output of up to 8Amp. As the UBEC has such a powerful output capability, so it’s particularly applicable for 30+ Class nitro helicopters and large RC plane.

Specifications

Output Voltage/Current (Cont./Peak): 5V@8A /15A or 6V@8A/15A (adjust via control switch)

Quiescent Current：60mA

Input Voltage：6－12.6V (2-3S LiPo)

Size：42x39x9mm (LxWxH)

Weight：36g
