Hobbywing - Platinum 150A- V5

Code: HBW-03-06-Platinun-150A-V5

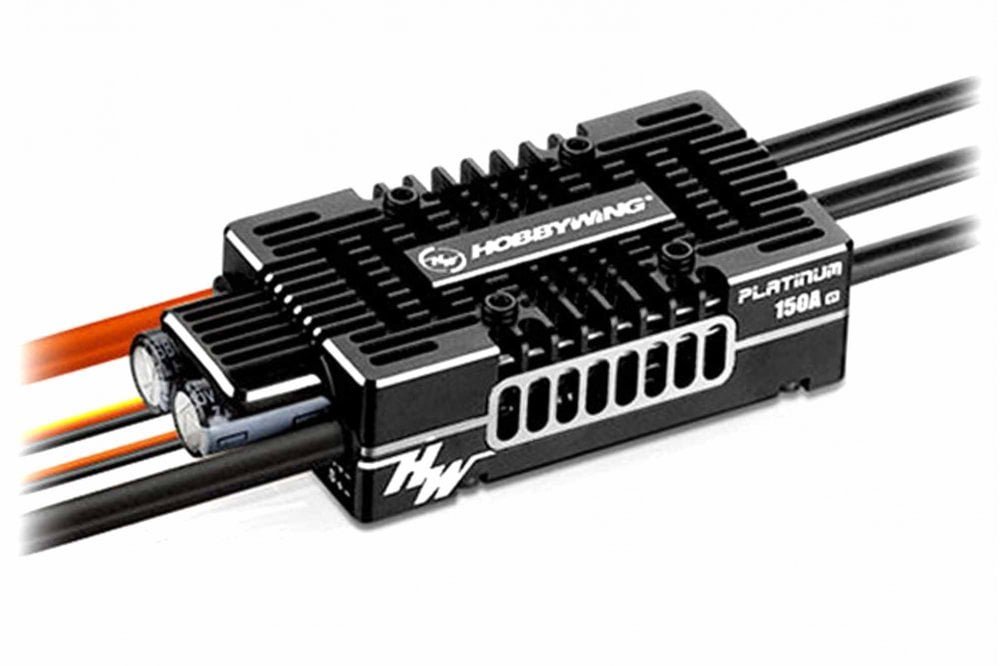

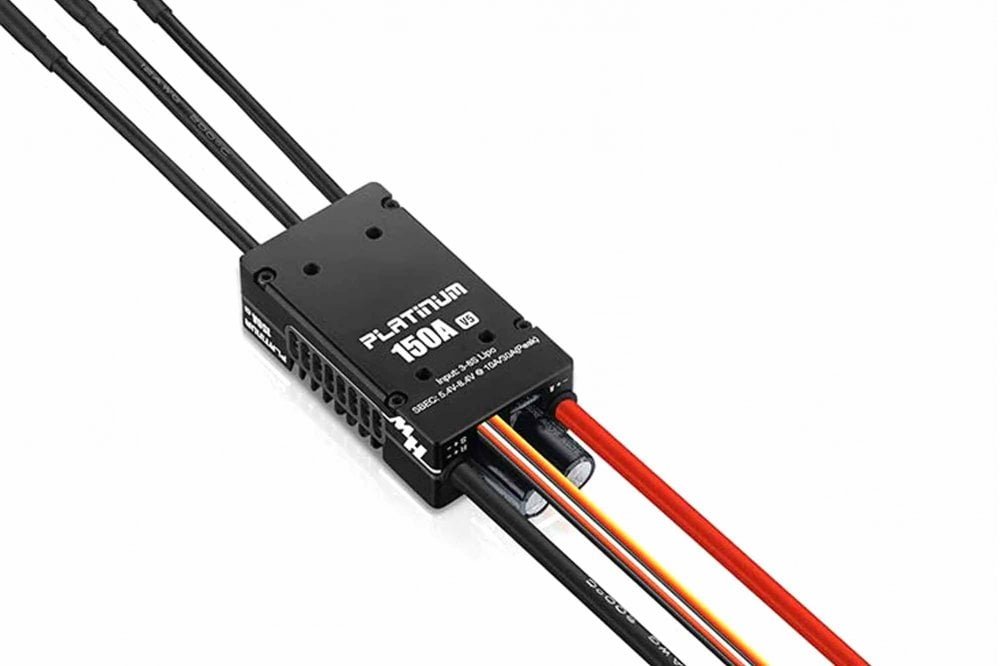

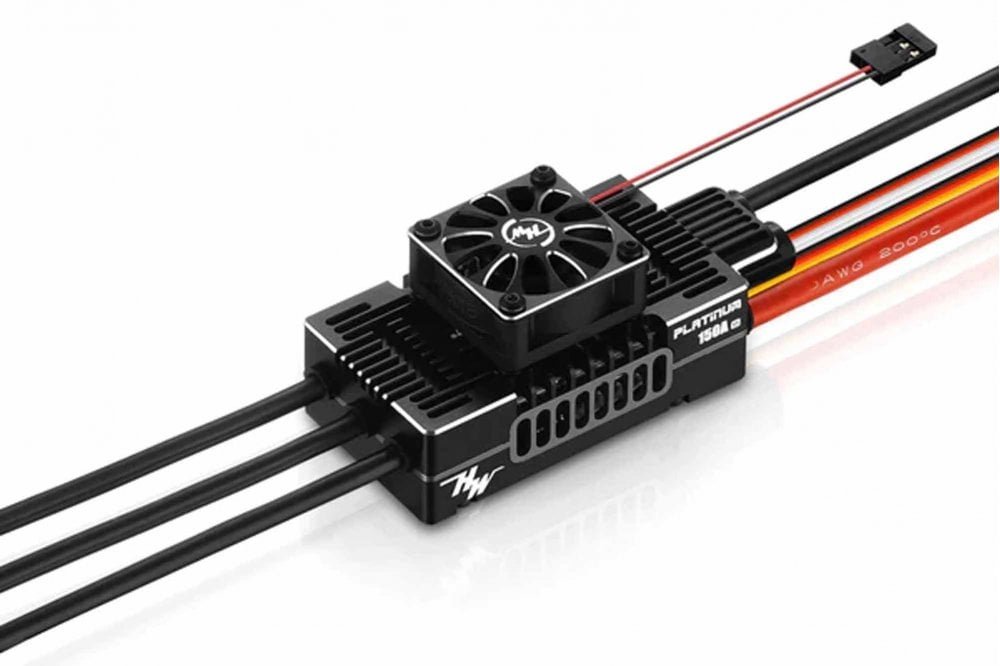

Hobbywing Platinum 150A V5 ESC

Specification

• Brushed/Brushless: BL

• High Voltage/Regular: Regular

Specifications

• Cont./Peak Current: 150A/180A

• Input Voltage: 3-8S LiPo

• BEC Output: Switch Mode:5-8V,10A

Wires & Connectors

• Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1

• Output Wires: Black-12AWG-120mm*3

• Input Connectors: No

• Output Connecotors: 4.0mm Gold Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

• Transmitter: Not Supported

• LED Program Card: Not Supported

• LED Program Box: Not Supported

• LCD Program Box: Supported

• WiFi Module: Supported

• Program Port: Separate Program Port

Firmware

• Firmware Upgrade: Supported

Size & Weight

• Size: 83x37x21mm

• Weight: 140g
