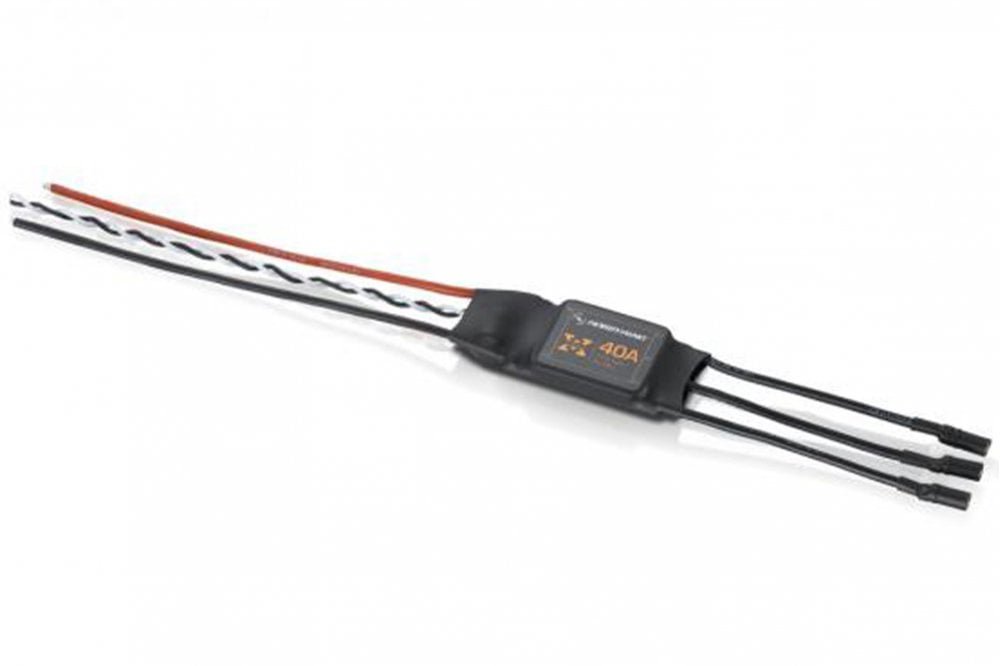

Hobbywing - XRotor 40A 2-6S WIRE - Asia Edition

Code: HBW-02-04-XRotor-40A-WIRE-Asia-Edition

Hobbywing - XRotor 40A 2-6S Asia Edition-Wire Leaded ESC OPTO Great all round ESC for RC model and Plane (no BEC its OPTO) WIRE - Bullet connectors on Wire

The Hobbywing X-Rotor series ESC are good quality speed controllers that have been widely proven to be reliable and deliver great performance. They have been specifically designed for RC models and come preconfigured so that they are ready to use out of the box after a simple throttle calibration. They are compatible with all of the leading flight controllers, including Naza, APM, Pixhawk etc. and brushless motors including those with high pole counts and low Kv ratings. Finally, the firmware on these ESCs is tuned to deliver a very smooth linear throttle curve that is ideal for RC model applications. HobbyWing XRotor Features: Special core program for RC model controllers greatly improves throttle response Specially optimized software for excellent compatibility with disc-type motors Settings are preset, making usage simple, highly intelligent and adaptive The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) MOSFET with extra-low resistance brings high performance and great current endurance

Specification:

• Continuous 40A, Burst 60A up to 10 seconds

• Input Voltage: 2-6cells lithium battery

• BEC: NO BEC

• Refresh rate of the throttle signal: at least 400Mhz

• Timing: High or Intermediate

• Red Black cable length: 120mm

• Signal cable length: 260mm

• Bullet Connector: 3.5mm

• Size: 68 x 25 x 8.7mm

• Weight: 26g

Package contains:

• 1x Hobbywing XRotor 40A OPTO ESC

• 1x English Manual
