Holybro - Kopis Cinematic X8 7''

Code: HB-Kopis-Cinematic-X8

Kopis Cinematic X8 7'' is available in the following packages:

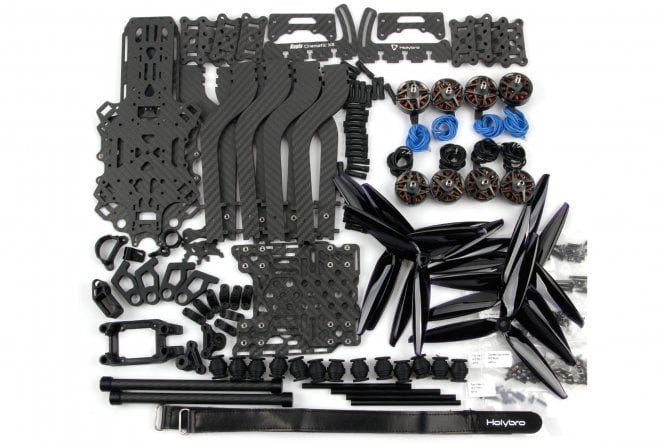

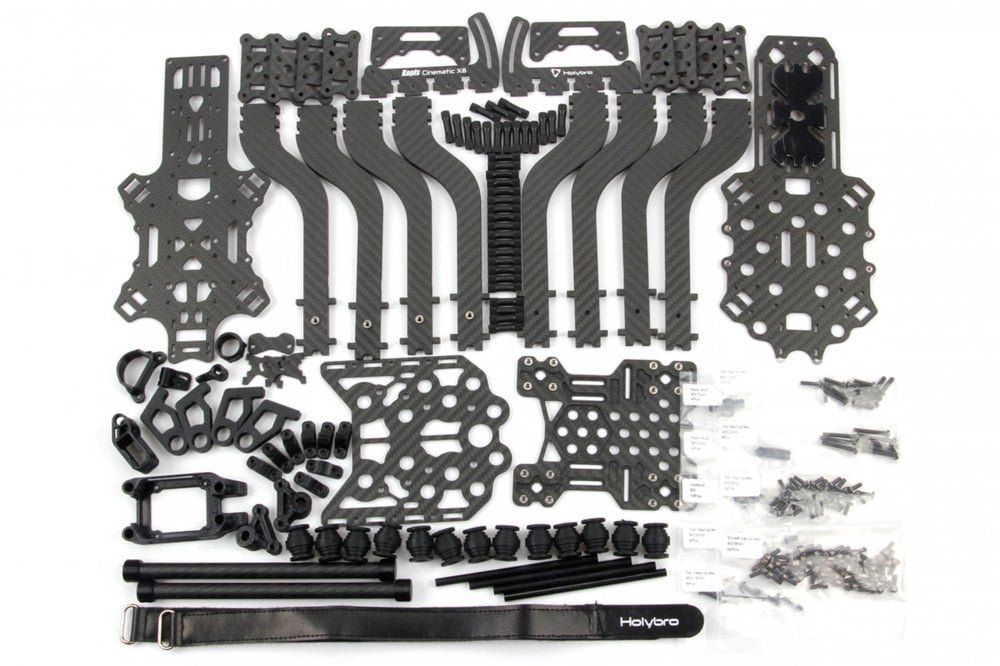

1. 'Frame Kit' only (contains frame only excluding motors/props)

2. 'ARF Kit' which includes:

• 1x Kopis Cinematic X8 Frame Kit

• 8x T-motor F90 KV1300 Motors

• 12x Gemfan 7040 7 Inch 3-Blade Propeller

Holybro Kopis Cinematic X8 is a powerful and heavy-duty model designed for professionals. With a full carbon fiber frame which provides a good shock absorption performance, Kopis Cinematic X8 offers a perfect platform with adjustable installation angle available from 0 to 25 °. For both SLR and HD cameras such as Comodo; zcam-e2; Sony a7s3 and Panasonic S5, etc. With redundant configurations of ESC and motor supported, best performance and security are both ensured. DJI FPV air unit digital VTx system installation seat has been reserved.

Two pieces of 5mm carbon fiber arms provide reliable structural support for this powerful quad. We also have new vesion Holybro KAKUTE F7 V1.5, KAKUTE F7 HDV,KAKUTE F7 Mini V3 which are compatible with X8.

Features:

• Propeller: Gemfan 7040 7 Inch 3-Blade Propellers

• Motor: T-Motor F90 KV1300 Motors

• Arm: 16mm wide x 10mm thick (with 5mm thick carbon fiber boards overlaid)

• Landing gear: TPU bracket combined with 10 mm carbon fiber tube

• Compatible with DJI Air Unit & Caddx Vista HD Digital System

• Compatible with multiple mounting holes: 30.5x30.5mm & 20x20mm

• Professional camera installation supported: Komodo, ZCAM, BMPCC, etc

• Camera platform shock absorption structure with 10 silicone damping balls

• Spacing between top and bottom plates: 22mm

• Camera platform elevation: 0 ~ 25 ° Adjustable

• Wheelbase: 396mm

• Weight: 1124g

• Frame weight: 640g

Suggested equipment:

• FC：KAKUTE H7

• ESC：Tekko32 F4 4in1 50A ESC / Tekko32 F4 Metal 4in1 65A ESC

• VTx: DJI FPV Air Unit / CADDX Vista Kit

• Battery Recommendation: 6s 5000mAh

• Load Capacity: 1.5kg

• Flight Time: 5 minutes (with 1.5kg load); 11 minutes (without load)

• Note: Flight time was tested using 6s 5000mAh battery with 2806.5 1300kv motor & 7040 props. Flight time may vary depending on load and battery size.

Guides:

Kopis Cinematic X8 Quick Start Guide

Kopis Cinematic X8 Assembly Guide
