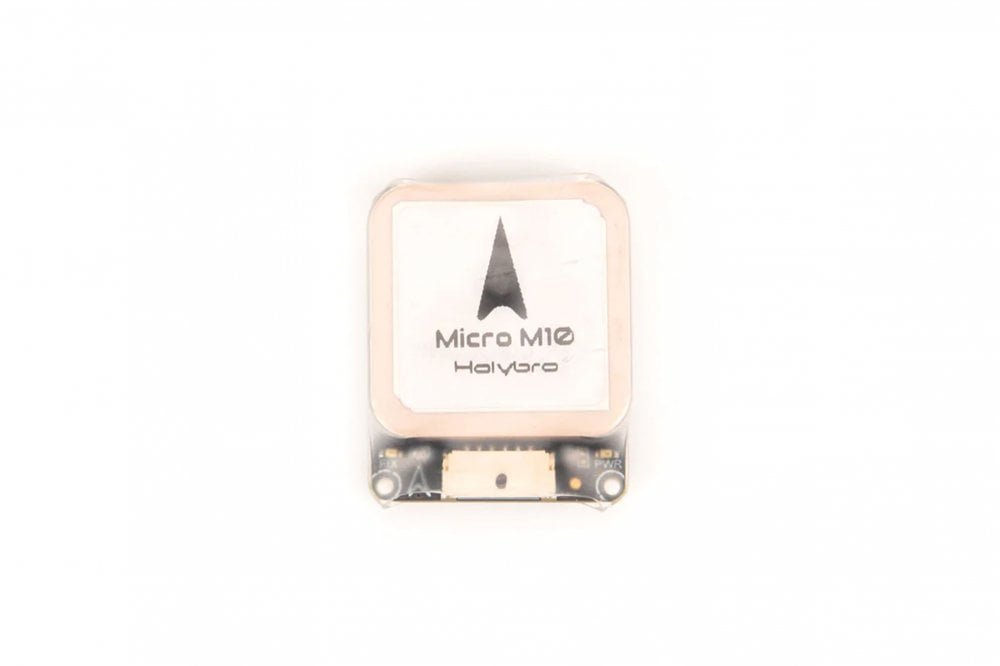

HOLYBRO - Micro M10 GPS

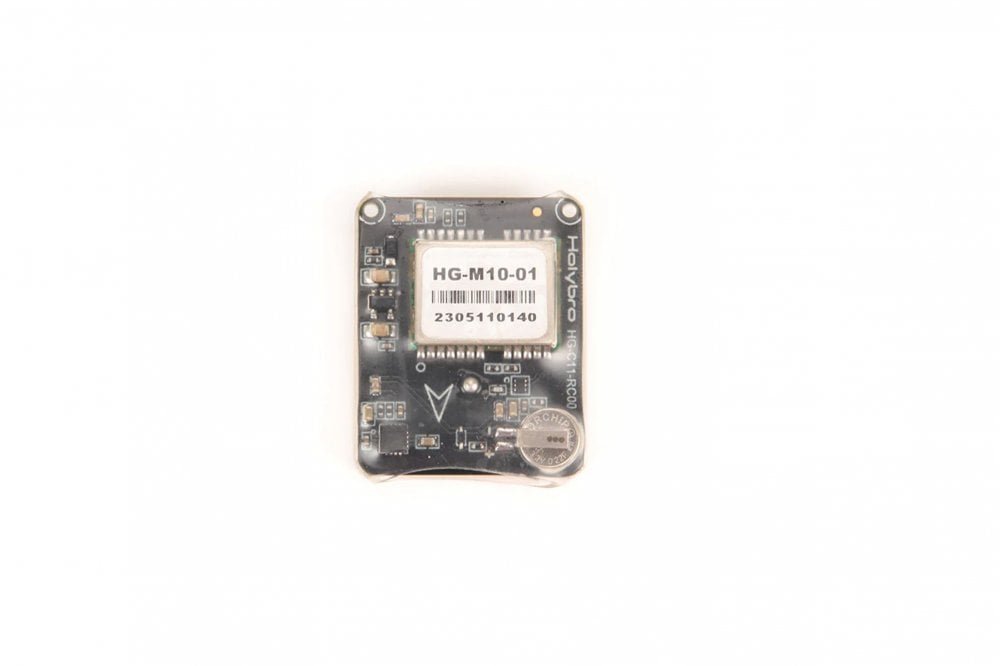

This new design incorporates the Ublox latest 10 Generation GNSS Chip and IST8310 digital compass, providing a convenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Features:

• Newest Ublox 10th Gen GNSS

• Fast & Accurate Positioning

• IST8310 Compass

• Small Form Factor

Specifications

GNSS Receiver

Ublox M10

Number of Concurrent GNSS

Up to 4 GNSS
BeiDou
Galileo
GLONASS
GPS
QZSS

Frequency Band

GPS L1
Galileo E1
GLONASS L1
BeiDou B1
SBAS L1
QZSS L1

Compass

IST8310

Output Protocol

UBX (U-blox)
NMEA

Accuracy

2.0m CEP

Nav. Update Rate

Up to 25 Hz (single GNSS),
Up to 10 Hz (4 concurrent GNSS)

GNSS Augmentation System

EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S

Default Baud Rate

115200

Input Voltage

4.7-5.2V

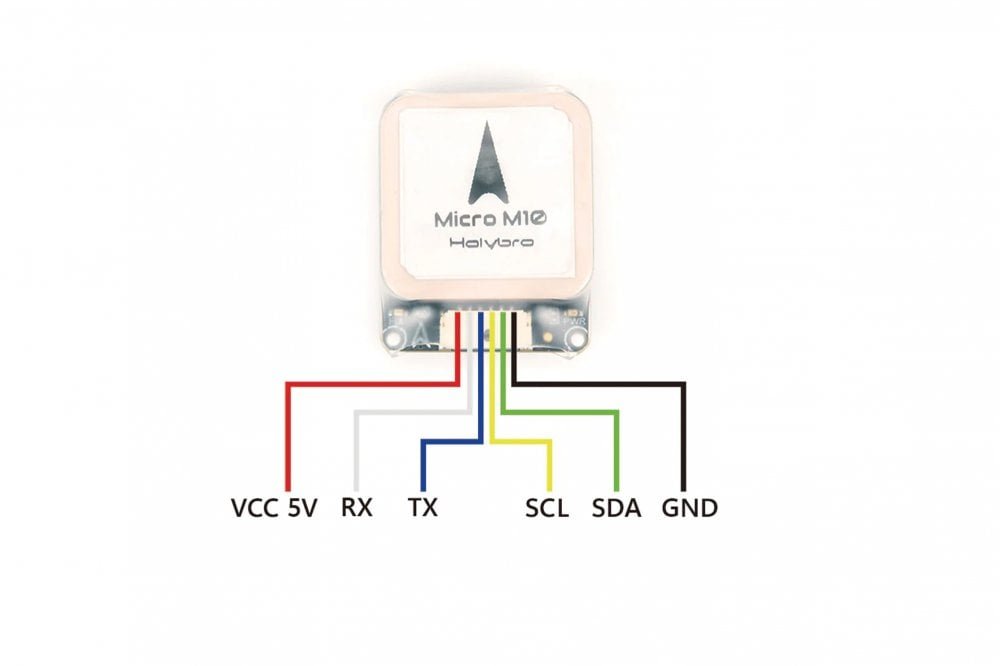

Port Type

JST-GH-6P

Antenna

25 x 25 x 4 mm ceramic patch antenna

Power consumption

Less than 200mA @ 5V

Operating Temperature

40~80C

Dimension

32 x 26 x 9mm (w/o Case)
34 x 28 x 11mm (With Case)

Weight

14g (w/o Case)
16g (With Case)

Other

LNA MAX2659ELT+ RF Amplifier
Rechargeable Farah capacitance
Low noise 3.3V regulator

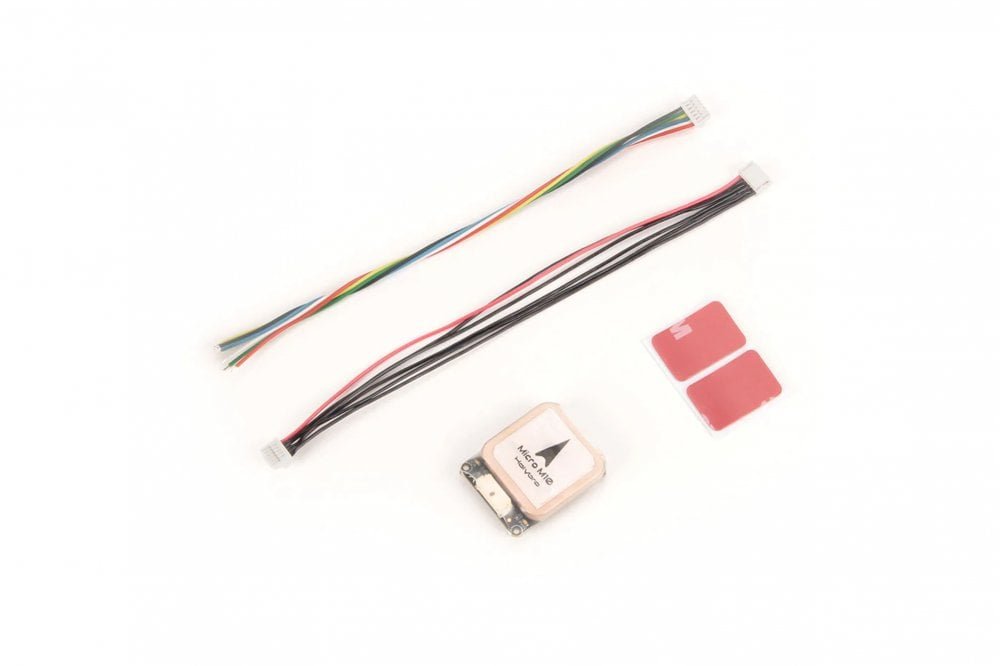

Package contains:

• 1x Micro GPS module *1

• 1x JST GH 6 Position Connector 15 cm

• 1x JST-GH 6pin Coloured Silicon Cable 15 cm
