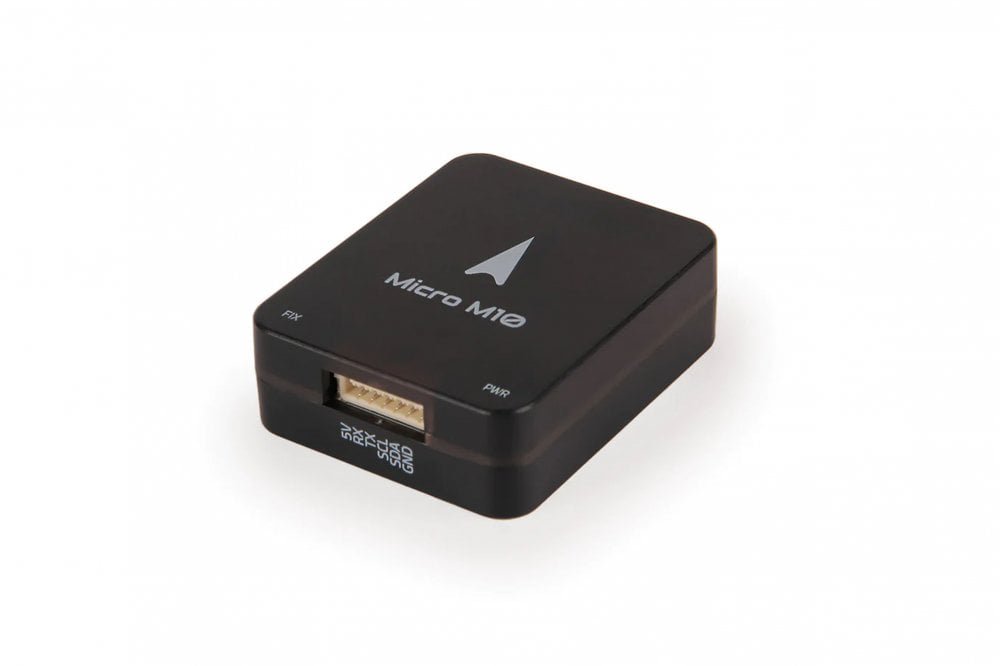

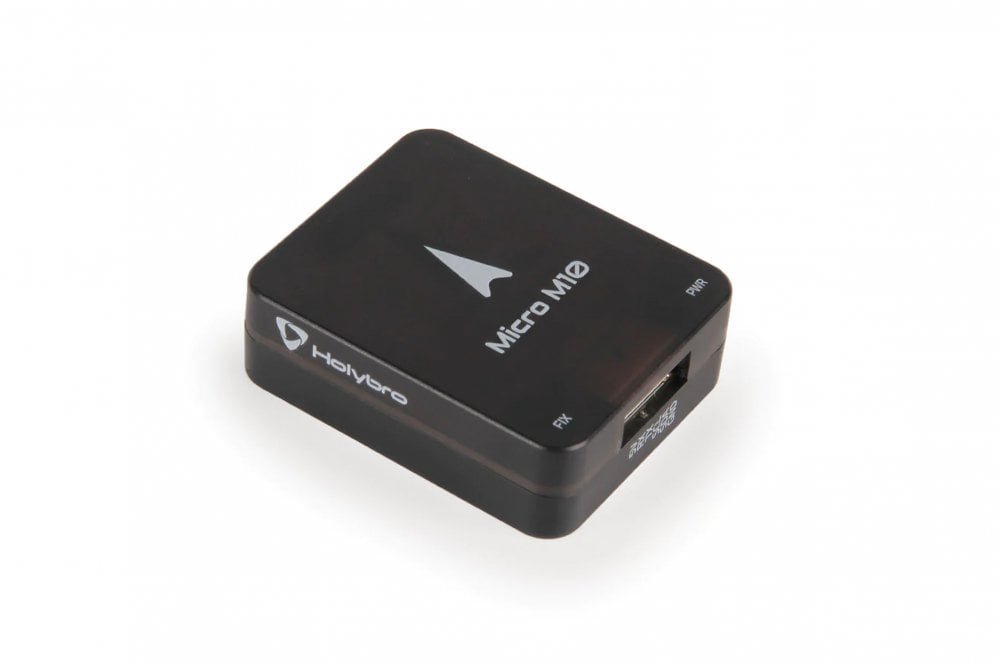

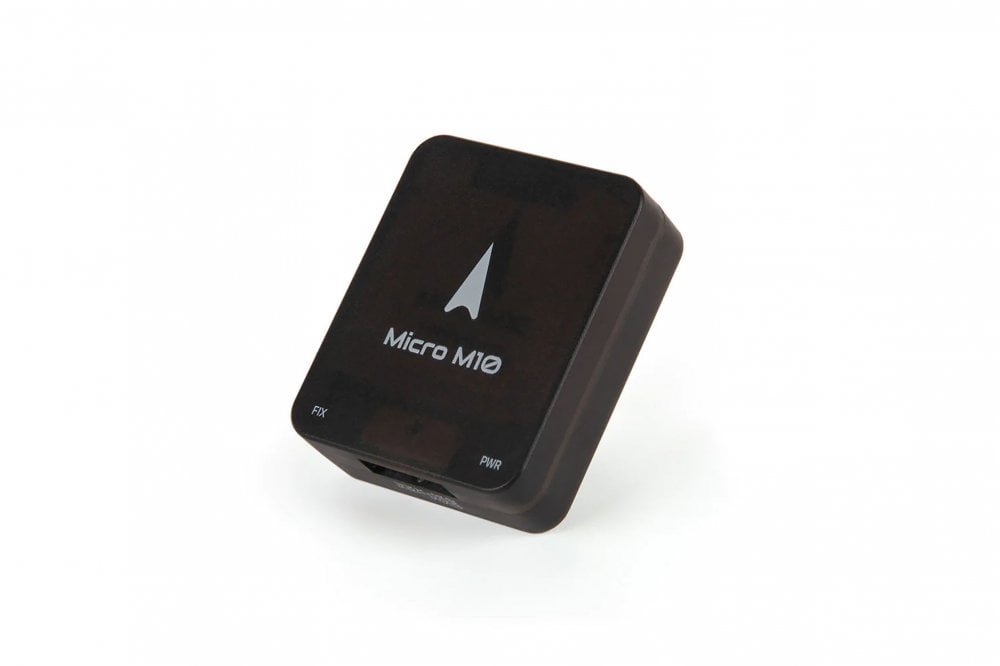

HOLYBRO - Micro M10 GPS - With Case

These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features:

• Newest Ublox 10th Gen GNSS

• Fast & Accurate Positioning

• IST8310 Compass

• Small Form Factor

Specifications

GNSS Receiver

Ublox M10

Number of Concurrent GNSS

Up to 4 GNSS
BeiDou
Galileo
GLONASS
GPS
QZSS

Frequency Band

GPS L1
Galileo E1
GLONASS L1
BeiDou B1
SBAS L1
QZSS L1

Compass

IST8310

Output Protocol

UBX (U-blox)
NMEA

Accuracy

2.0m CEP

Nav. Update Rate

Up to 25 Hz (single GNSS),
Up to 10 Hz (4 concurrent GNSS)

GNSS Augmentation System

EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S

Default Baud Rate

115200

Input Voltage

4.7-5.2V

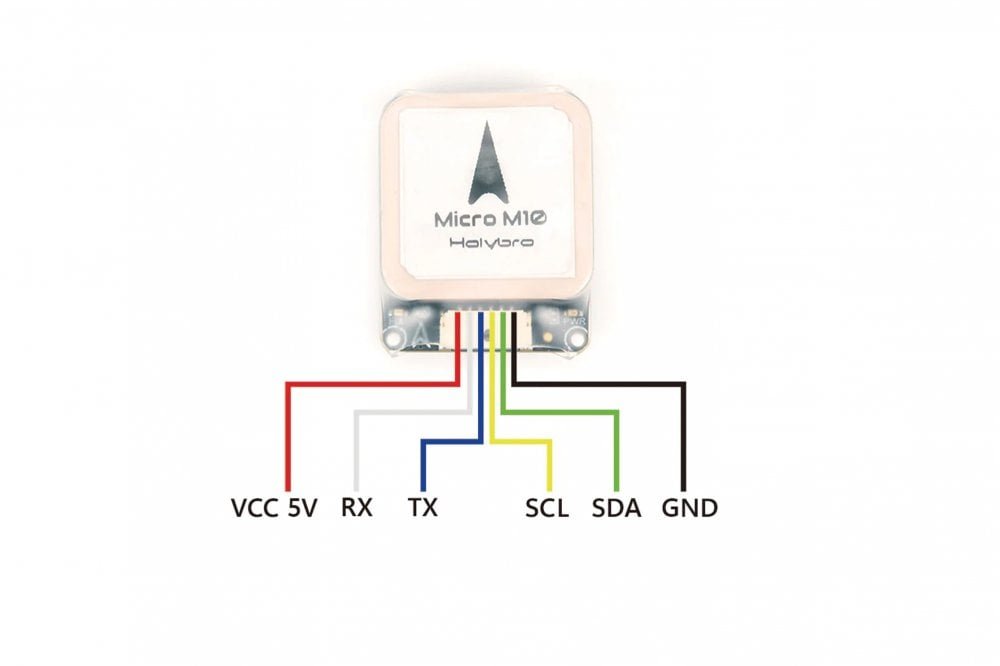

Port Type

JST-GH-6P

Antenna

25 x 25 x 4 mm ceramic patch antenna

Power consumption

Less than 200mA @ 5V

Operating Temperature

40~80C

Dimension

32 x 26 x 9mm (w/o Case)
34 x 28 x 11mm (With Case)

Weight

14g (w/o Case)
16g (With Case)

Other

LNA MAX2659ELT+ RF Amplifier
Rechargeable Farah capacitance
Low noise 3.3V regulator

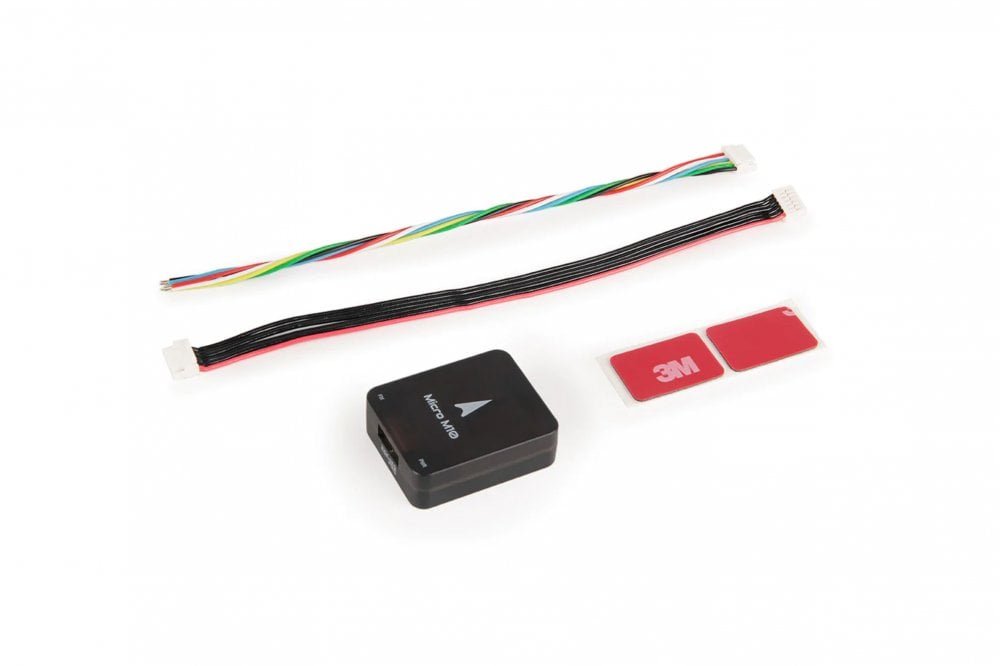

Package contains:

• 1x Micro GPS module

• 1x JST GH 6 Position Connector 15 cm

• 1x JST-GH 6pin Coloured Silicon Cable 15 cm
