Holybro - Micro OSD V2

Code: HB-03-15-Micro-OSD-V2-13013

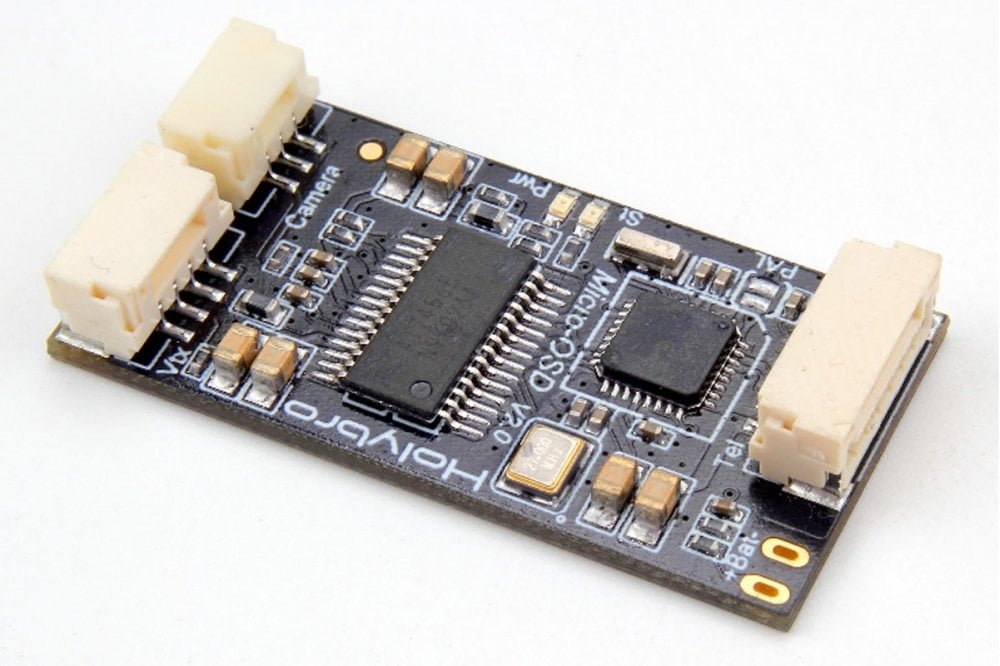

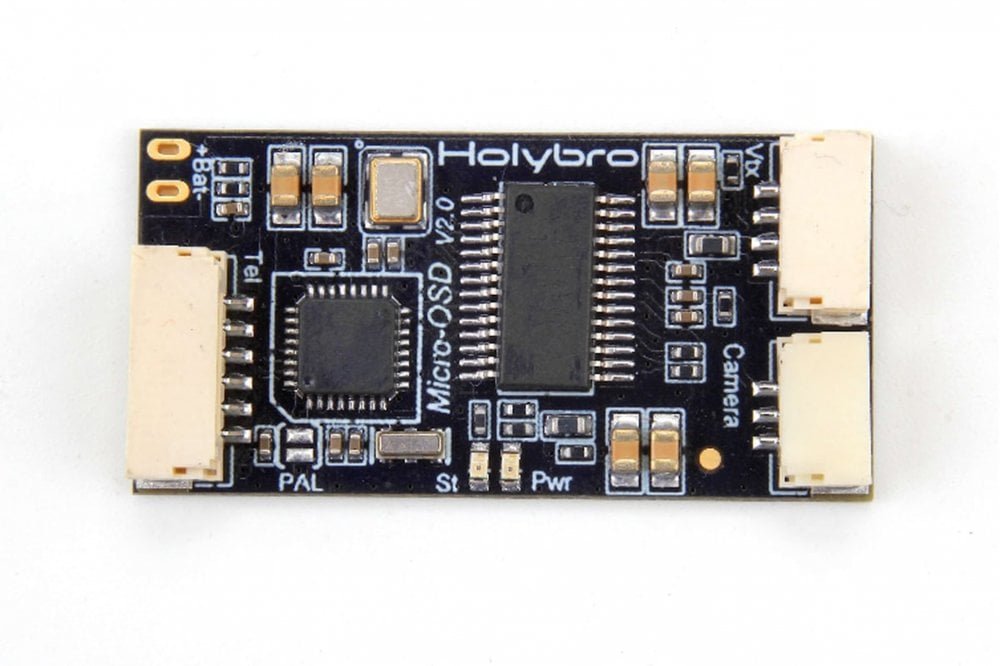

Holybro Micro OSD V2

Package includes

• 1 x Micro OSD

• 1 x GH 6P cable

• 1 x GH 4P cable

• 1 x GH 3P cable

Specifications

• ATmega328P with Arduino bootloader

• MAX7456 monochrome on-screen display

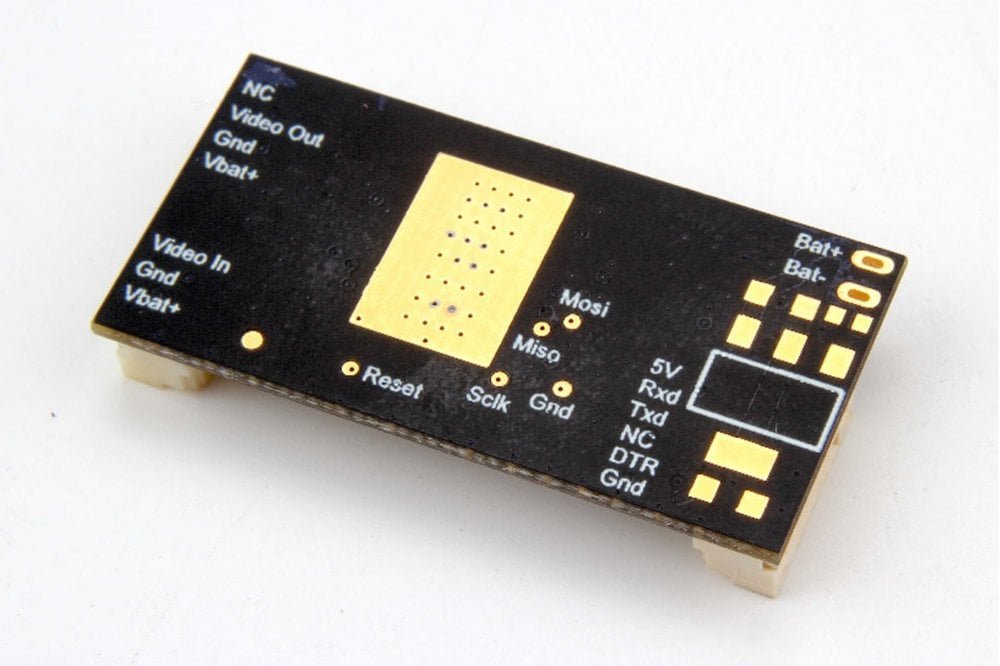

• Standard 6-pin ISP header

• Solder jumper for PAL video option

• Exposed test points for HSYNC and LOS

• Dimensions:17.5*35mm

• Weight:3g

Note:BAT+ is direcrly connected with VTx and Camera (Pay attention to the max with stand voltage of your equipment)
