HOLYBRO - Pixhawk M9N 2nd GPS

Holybro - Pixhawk M9N 2nd GPS

Description

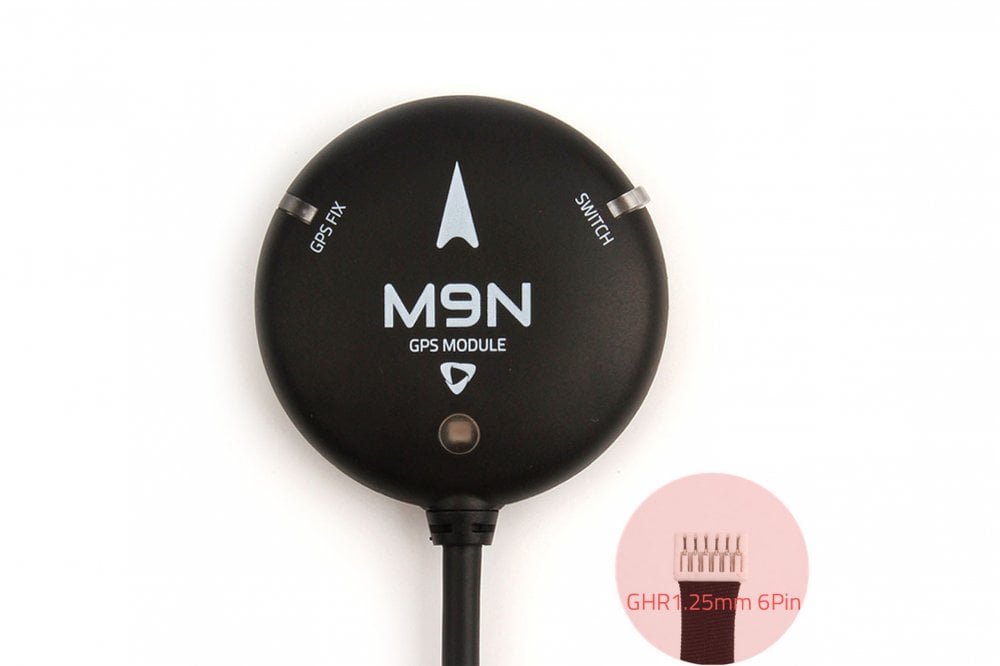

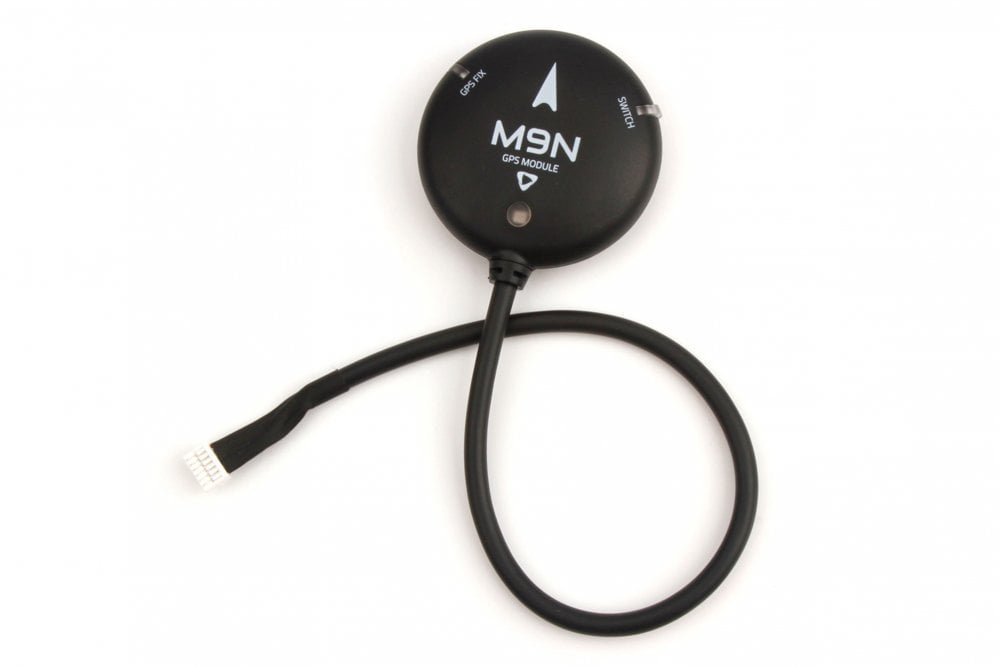

The M9N GPS has an UBLOX M9N module, IST8310 compass, tri-colored LED indicator, and a safety switch.

This module ships with a baud rate of 115200 5Hz

Features and Specifications

• Ublox Neo-M9N module

• Industry leading –167 dBm navigation sensitivity

• Cold starts: 26s

• LNA MAX2659ELT+

• 25 x 25 x 4 mm ceramic patch antenna

• Rechargeable Farah capacitance

• Low noise 3.3V regulator

• Current consumption: less than 150mA @ 5V

• Fix indicator LEDs

• Protective case

• 26cm cable included

• Diameter 50mm total size, 32 grams with case.

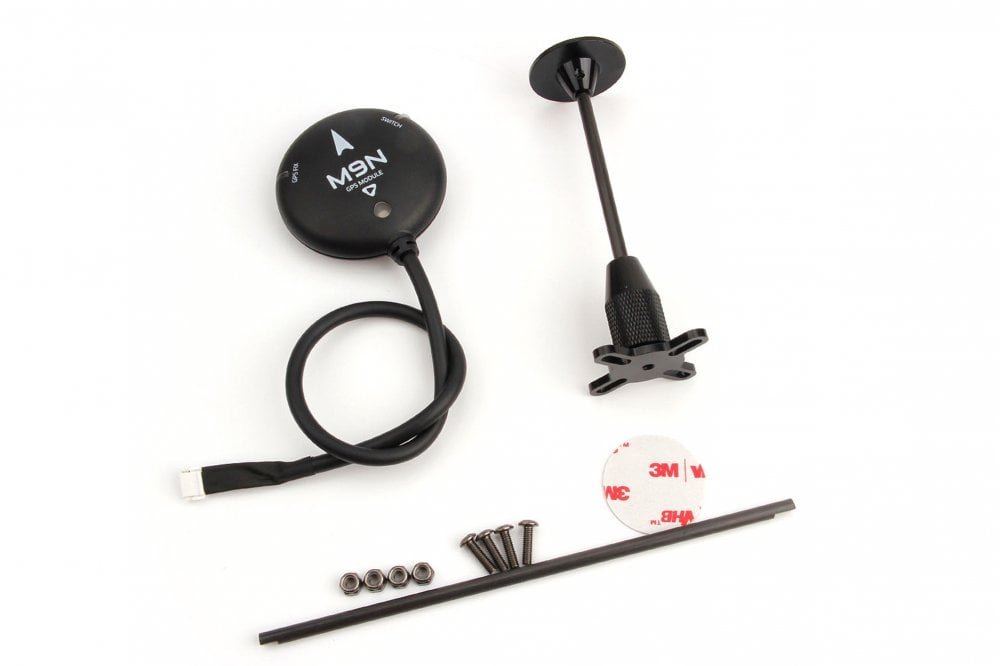

Package Includes:

1 x M9N 2nd GPS Module

1 x ‘X’ type folding pedestal mount

1 x Carbon rod 70mm & 140mm
