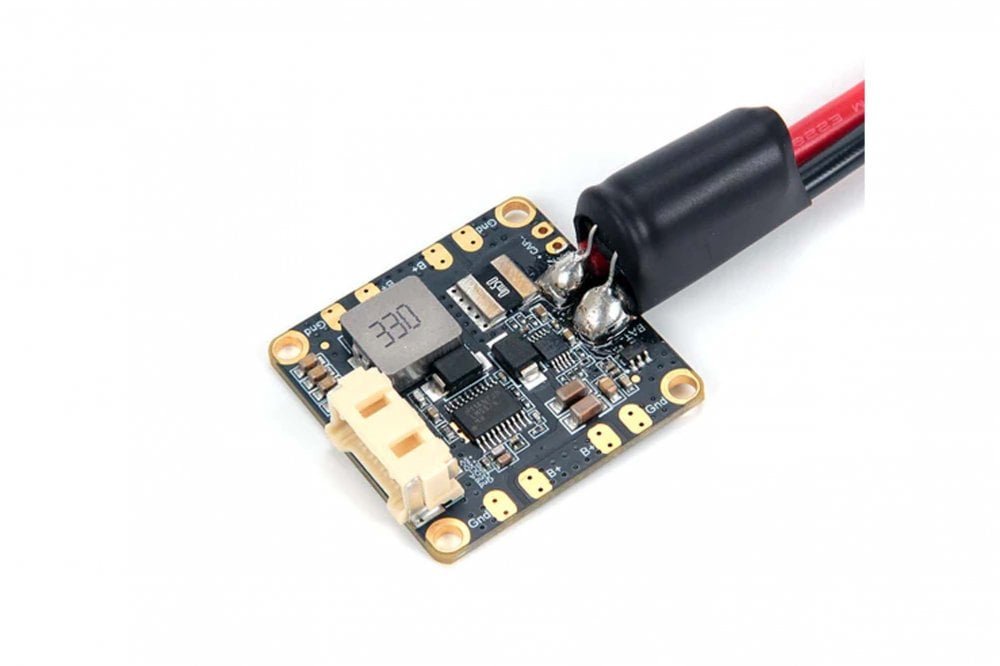

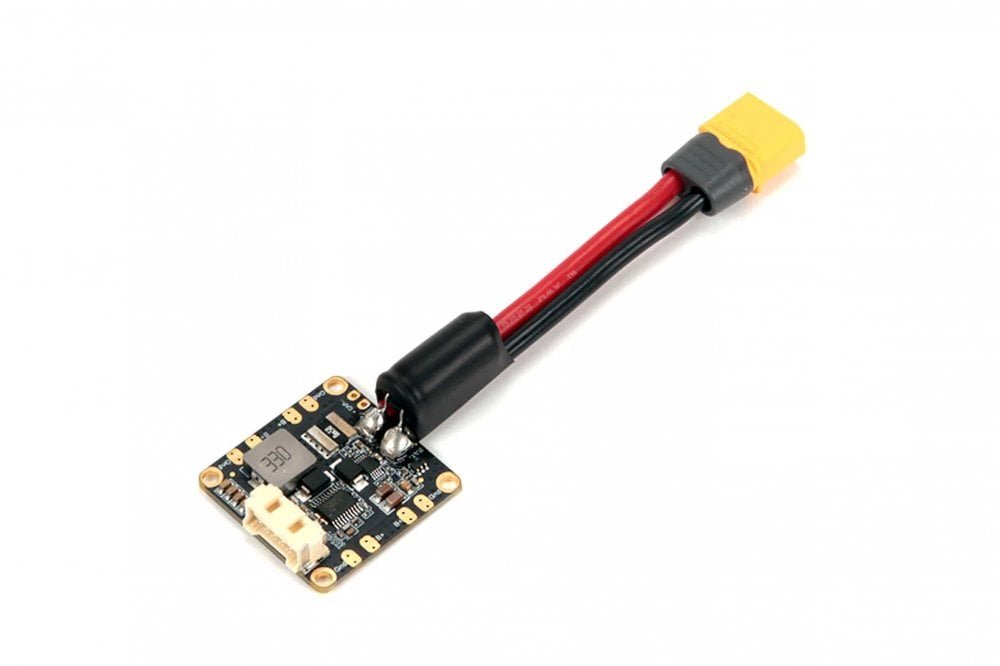

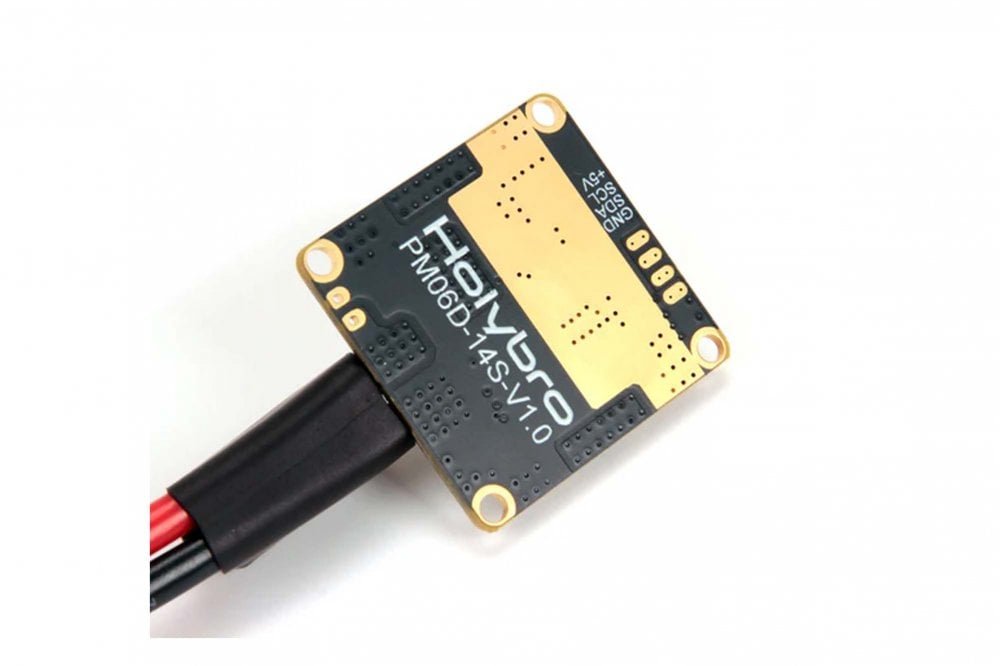

HOLYBRO - PM06D Power Module 14S

PM06D provides regulated power supply for your Pixhawk® 5X & 6X from the battery, as well as current consumption and battery voltage measurements, all through a 6pin cable. It has built-in power distribution, allowing you power your ESC and FC with the same board.

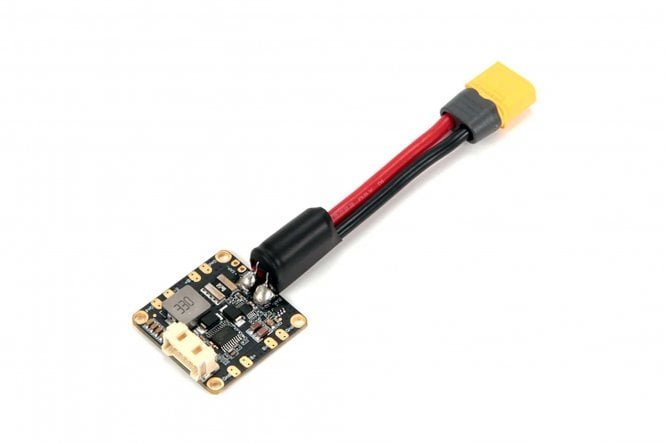

The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 14S. The Power Module comes completely assembled with a XT60 connector and a capacitor. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact.

Specification:

• Input voltage: 2S- 14S

• PCB Cont. Current Rating: 70A

• PCB Burst Current Rating: 120A (

• Max current sensing: 327A

• Voltage and current monitor with I2C compatible interface

• Connector Outputs: 5.2V and 3A max

• Weight: 24.5g

Current Rating:

The PM06D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current

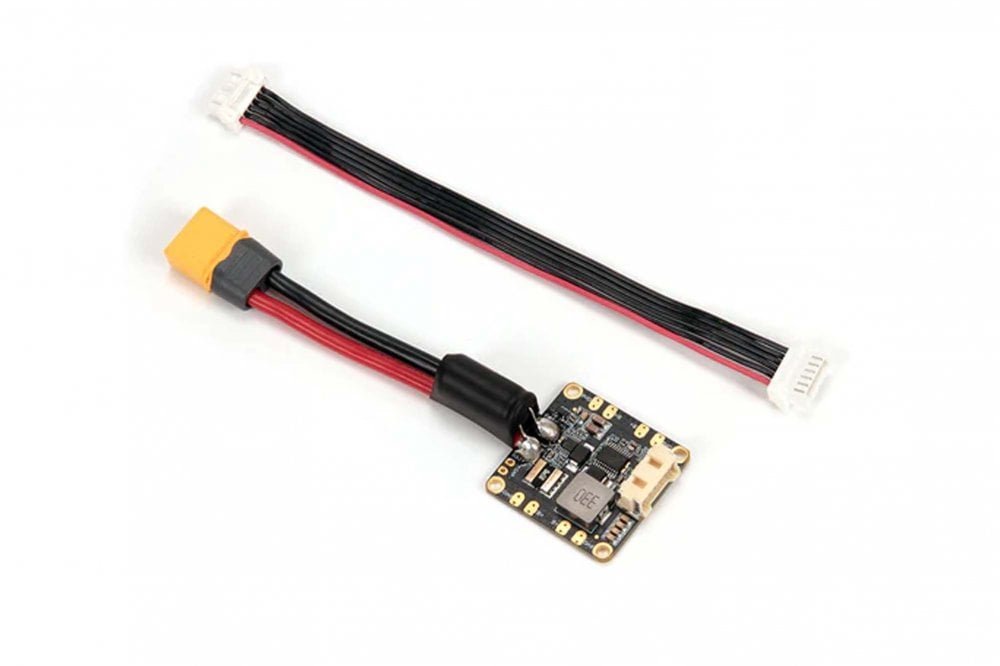

Package contains:

• 1x PM06D Power Module

• 1x 6pin 2.00mm pitch cable
