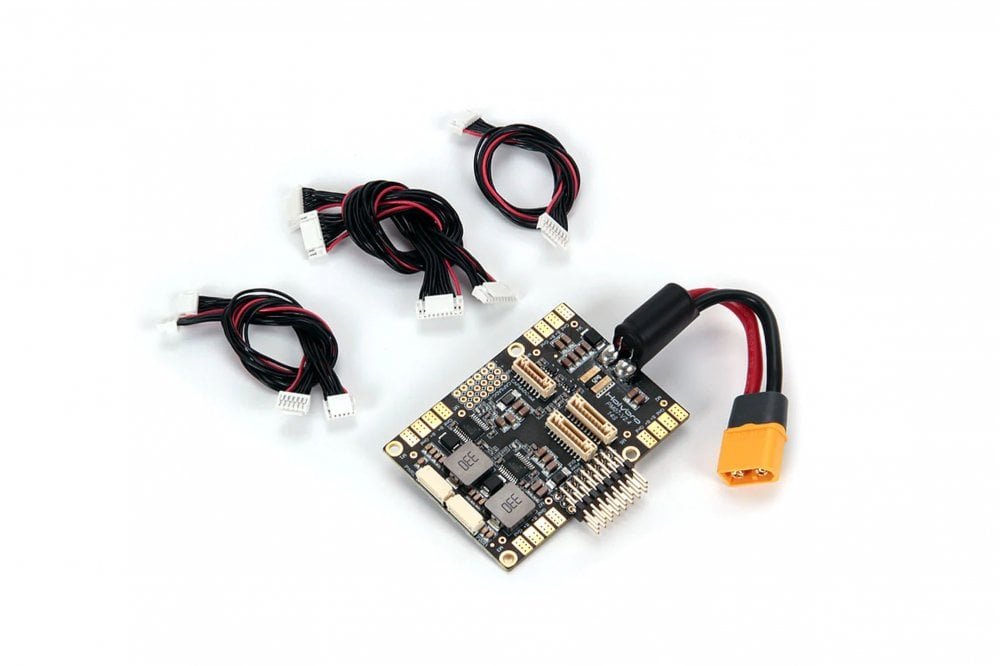

Holybro - PM07 Power Module (14S) HOLYBRO - PM07 Power Module (14S)

This PM07 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated esc power & signal distribution for up to 8 ESCs. It is designed specifically for flight controller that do not have built-in servo header pins like the Pixhawk 6C & Pixhawk 4. It comes with pre-soldered wires, capacitor, and XT60 connector. It has two power output port with independent BEC and circuitry.

Specifications：

• Input voltage: 2S-14S

• PCB Cont. Current Rating: 90A

• PCB Burst Current Rating: 140A (

• Output: DC 5.2V & 3A Max

• Voltage Divider: 18.182

• Amperes per Volt: 36.364

Note:

• The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.

• This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

Mechanical Specification:

• Dimensions:68*50*10 mm

• Mounting Holes:45*45mm

• Weight: 43.8g

Package Include：

• 1x PM07 board

• 1x 80mm XT60 connector wire (installed)

• 1x Electrolytic capacito: 220uF 63V (installed)

• 2x JST GH 10P Cable

• 1x JST GH 8P Cable

• 2x JST GH 6P Cable
