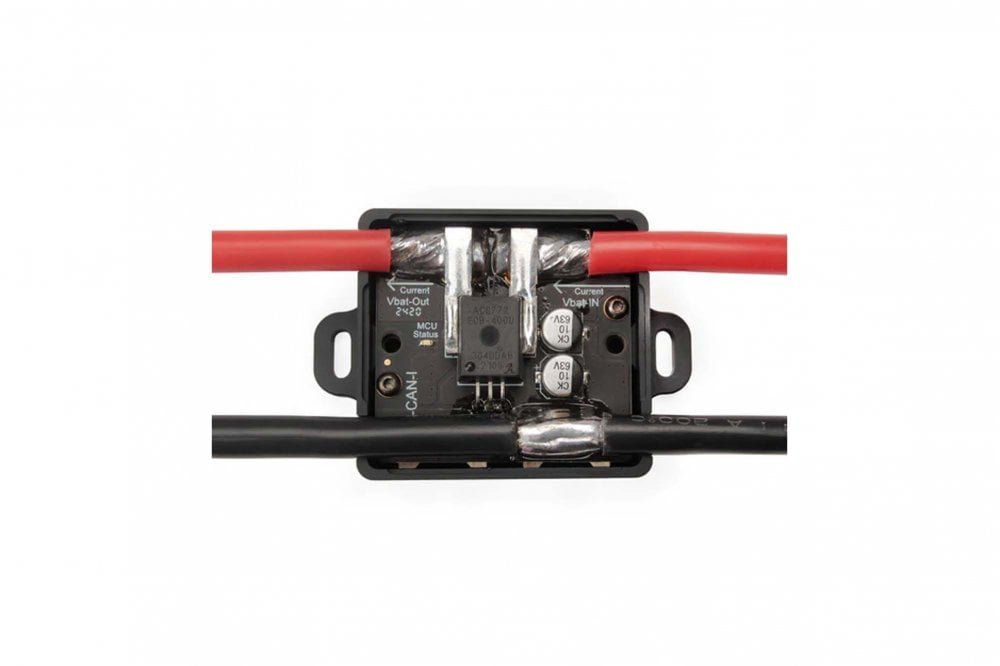

HOLYBRO - PM08 CAN Power Module 14S 200A

Feature:

• Supports 2-14S & 200A Cont, 400A Burst

• DroneCAN Communication Protocol

• Small & Compact Design

• Two 5V Output with Independent BEC IC and Circuitry

• Separated Sensor and BEC Board to Minimize Electrical Noise Interference

• Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)

• High Accuracy Temperature Sensor for Temperature Monitor

• High-Efficiency Aluminum Heat Dissipation Shell

Specifications:

• Processor：STM32F405RG 168MHz 1024KB Flash 196KB RAM

• Voltage input: 7~60.9V (2S~14S)

• Continuous current:200A

• Burst currentMax current sensing: 376A

  • 400A @ 25℃ 1 sec

  • 1000A @ 25℃ < 1 sec

• Voltage accuracy: ±0.1V

• Current accuracy: ±5%

• Temperature accuracy:±1℃

• Power port output: 5.3V/3A each port

• Protocol: DroneCAN

• Operating temperature:-25℃~105℃

• Firmware upgrade: Support

• Calibration: Support

Package contains:

• 1x PM08 CAN Power Module 14S 200A either XT90 Connectors / Tinned Wires / XT90 & Ring Terminal (Pick from drop down options)
