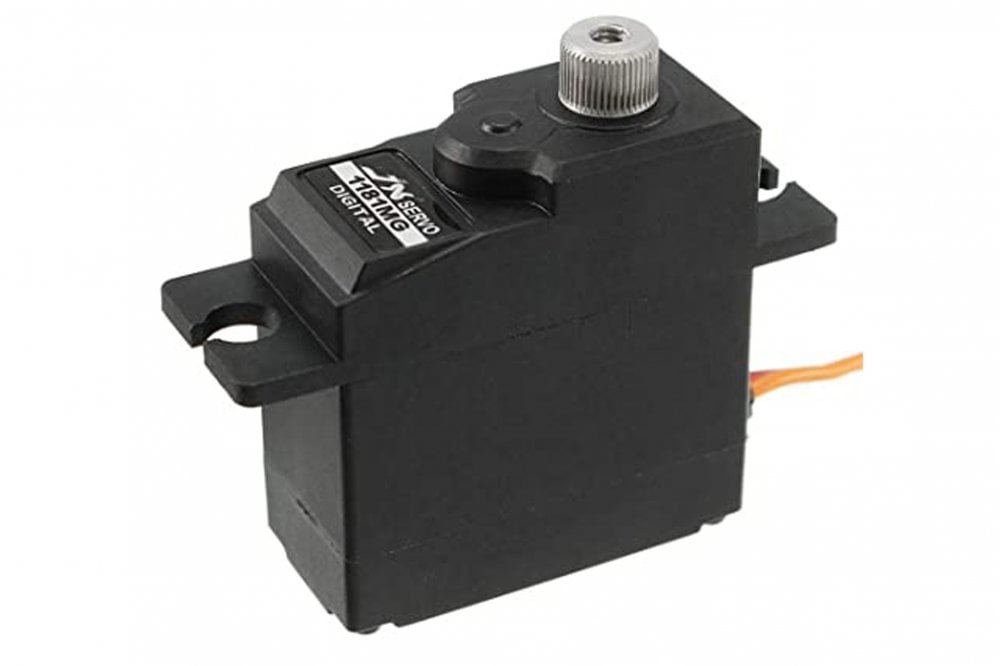

JX Servo JX PDI-1181MG

Code: JX-01-03-PDI-1181MG

Description:

Name: Digital Servo
Brand: JX
Gear: Metal Gear

Transmitter Angle: 90°-120°
Frequency: 300hz
Dead band: 2μs
Middle band: 1500μs
Control board: 0.5ms-2.5ms(200°)
Motor: core motor
Operating Speed: 0.13sec / 60 degrees (4.8V no load)

Operating Speed: 0.11sec / 60 degrees (6.0V no load)
Operation Voltage: DC 4.8 - 6.0V
Stall torque:3.0kg.cm(4.8V)
3.6kg.cm(6.0V)
Weight: 17.5g
Cable: JR 180mm
For: RC helicopter/ RC Car/ RC Boat/ RC Airplane

Package Contains:
1x JX Digital Servo
1x Servo arms set
