JX Servo JX - PDI-2504MG 25g Metal Gear Digital Servo

Code: JX-01-04-PDI-2504MG

High performance digital coreless servo

High-precision Taiwan-made aluminium gears with hard anodizing

Dual ball bearings

Dead band: 1μs

Working frequency: 1520μs / 330hz

Operating Speed (4.8V): 0.12sec/60°

Operating Speed (6V): 0.10 sec/60°

Stall Torque (4.8V): 3.35kg.cm(46.52 oz/in)

Stall Torque (6V): 4.52kg.cm(62.7oz/in)

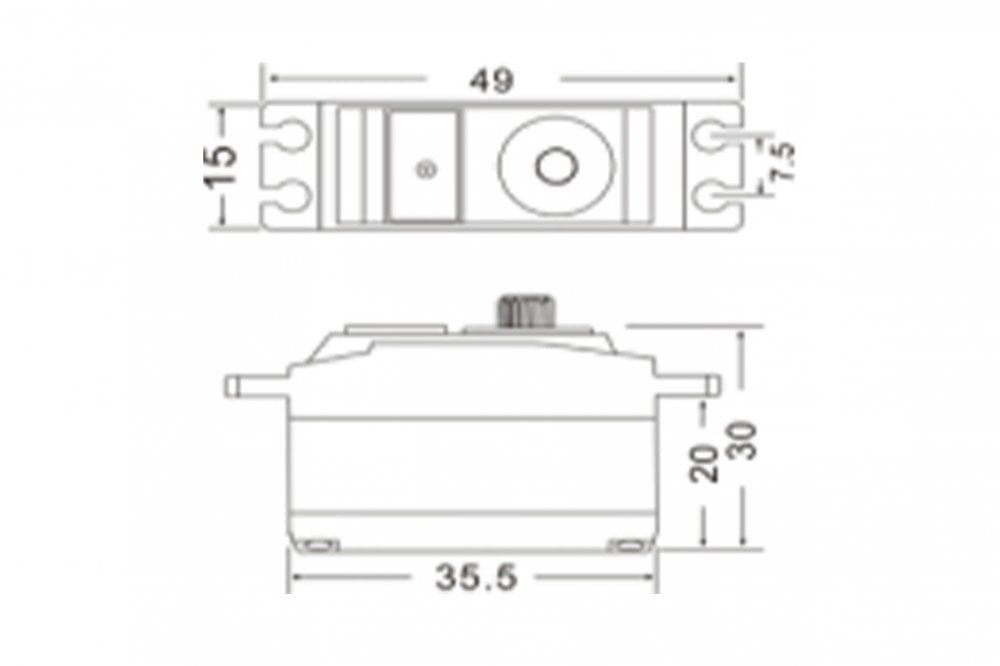

Dimensions: 36X15X32.4 mm /1.42 X0.59X1.28 in

Weight: 25.65 g (0.90oz)

Connector Wire Length: JR 180 mm (7.09in)

Bearing: 2BB Tooth Count: 25
