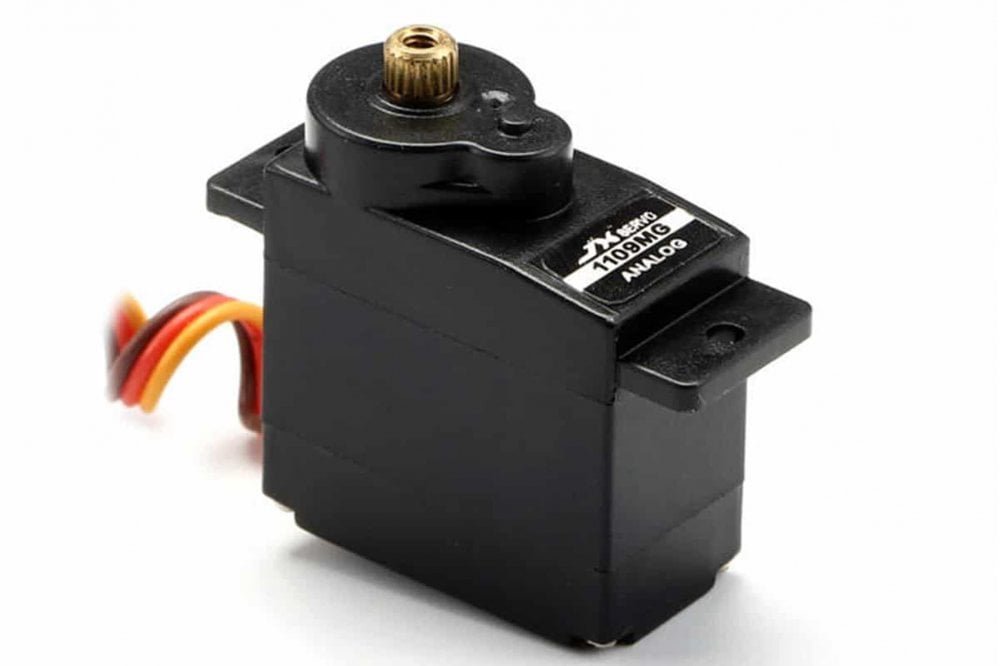

JX Servo JX - PS-1109MG 9g Analog Metal Gear Servo (2.5KG at 6V)

Code: JX-02-03-PS-1109MG

PS 1109MG 9g Metal Gear Analog Servo 4.8 - 6v 2.5kg at 6v

Dead band: 1μs

Working frequency: 1520μs / 50hz

Motor: core motor

Operating Voltage: DC4.8~6.0 V

Operating Speed (4.8V): 0.12sec/60°

Operating Speed (6V): 0.10 sec/60° Stall Torque (4.8V): 2.2kg/cm Stall Torque (6V): 2.5kg/cm Dimensions: 23.2x12.0x24.8mm

Weight: 10.0g Connector Wire Length: JR 180 mm

Tooth Count: 20
