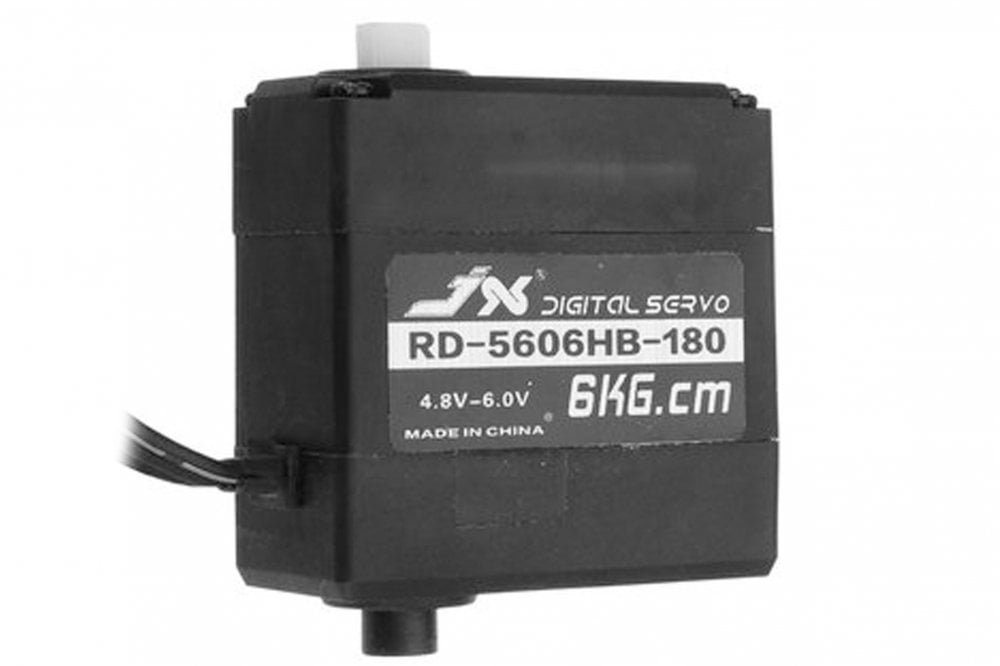

JX Servo JX - RD-5606HB-180 6kg 180 degree Servo

Code: JX-02-05-RD-5606HB-1801

- High performance robot servo -- High quality core motor -- 180° angle

Dead band: 4μs

Neutral point: 1500μs

Pulse width：500μs-2500μs

Motor: Core

Max angle：180°±2°

Frequency: 330hz

Operating Voltage：4.8V-6V

Operating Speed(4.8V): 0.14sec/60°

Operating Speed(6.0V): 0.12sec/60°

Stall torque(4.8V):5.50kg.cm

Stall torque(6.0V):6.20kg.cm

Dimension: 40.5X20.3X40mm

Weight: 47 g

Connector Wire Length: JR 200mm

Spline Count: 25T
