JX Servo PDI-4410MG

Code: JX-03-09-PDI-4410MG

JX Servo PDI-4410MG 44.30g Large Torque 120 Degree Digital Servo For RC Models

Features

• High-performance standard digital servo

• High-precision metal gear

• High-quality brushed motor

• Dual ball bearing

Specifications

• Dead band: 1μs

• Maximum Pulse Width: 900-2100us

• Maximum Angle: 120°

• Working frequence: 1520μs / 330hz

• Motor: coreless

• Operating Voltage: DC4.8~6.0 V

• Operating Speed (4.8V): 0.11sec/60°

• Operating Speed (6.0V): 0.09sec/60°

• Stall Torque (4.8V): 8.58kg.cm

• Stall Torque (6.0V): 9.53kg.cm

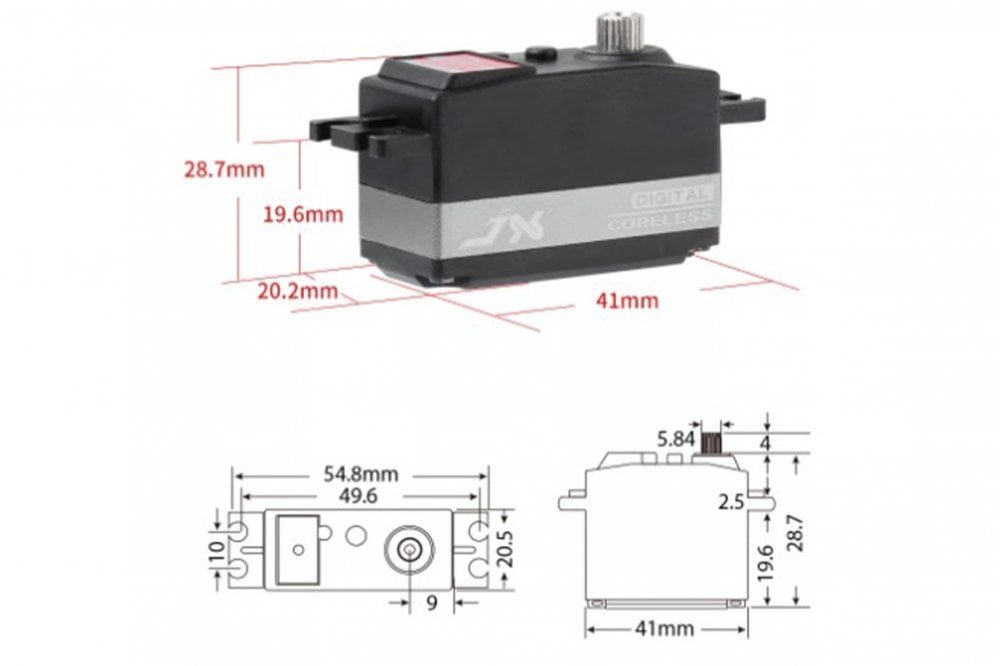

• Dimensions: 40.9×20.3×26.5mm

• Weight:44.30g

• Connector Wire Length: JR265mm

• Tooth Count: 25
