JX Servo PDI-HV0903MG 9.4g High Torque Digital Servo

Code: JX-03-04-PDI-HV0903MG

Description:

Brand name: JX

Item number: PDI-HV0903MG 9.4g High Torque Digital Standard Servo

Dead band: 2μs

Control System: +Pulse Width Control

Working frequency: 1520μs / 330hz

Operating Voltage: DC6~7.4 V

Operating Temperature Range: -10 to + 60°C

Operating Speed (6V): 0.09sec/60°

Operating Speed (7.4V): 0.07sec/60°

Stall Torque (6V):2kg.cm

Stall Torque (7.4V):2.6kg.cm

Potentiometer Drive: Direct Drive

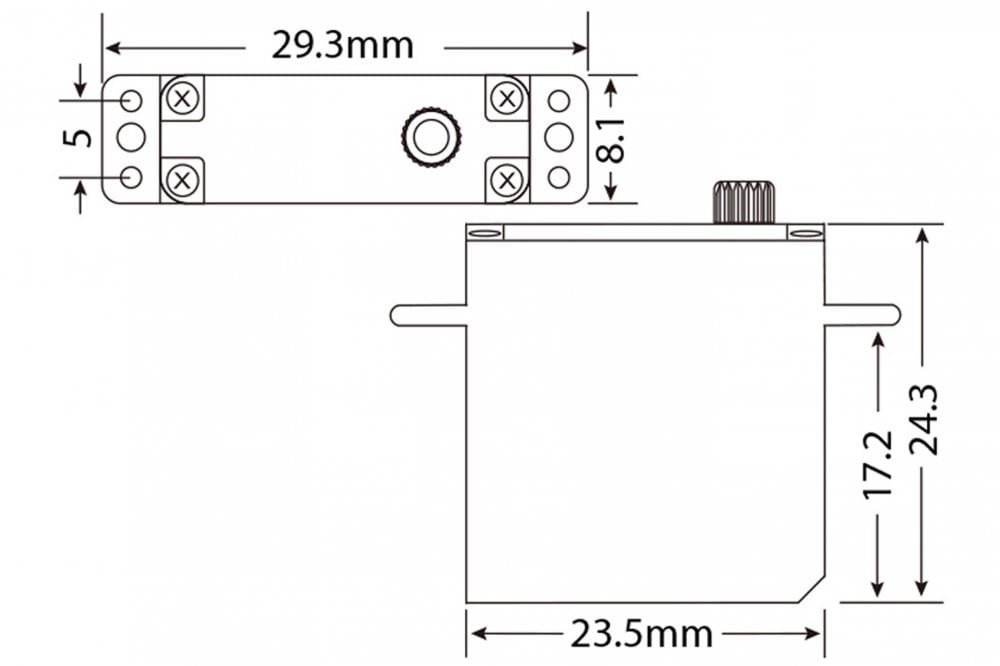

Dimensions: 23.5X8X24mm

Weight: 9.4g (0.33oz)

Connector Wire Length: JR/Futaba 150 mm

Bearing: 2BB

Tooth Count：14

Package Included:

1X JX PDI-HV0903MG 9.4g High Torque Digital Standard Servo
