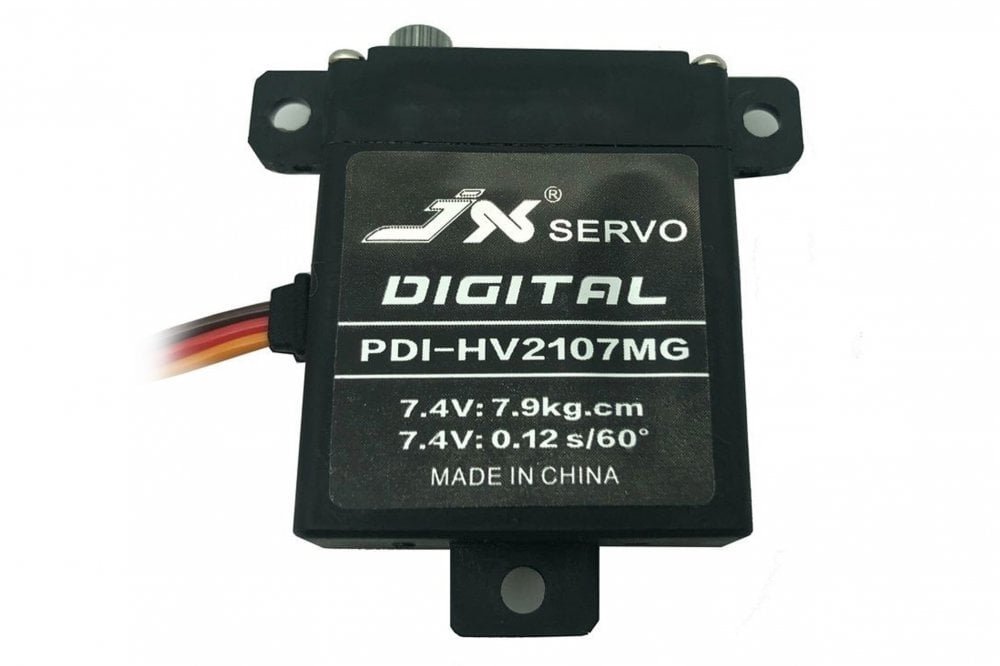

JX Servo PDI-HV2107MG 21g High Torque Digital Slim Servo

Code: JX-03-06-PDI-HV2107MG

Description:

Brand name: JX

Item name: PDI-HV2107MG 21g High Torque Digital Standard Servo

Dead band: 2μs

Control System: +Pulse Width Control

Working frequency: 1520μs / 330hz

Operating Voltage: DC6~7.4 V

Operating Temperature Range: -10 to + 60°C

Operating Speed (6V): 0.14sec/60°

Operating Speed (7.4V): 0.12 sec/60°

Stall Torque (6V): 6.8kg.cm

Stall Torque (7.4V): 7.9kg.cm

Potentiometer Drive: Direct Drive

Dimensions: 30.0X10.0X35.5mm /1.18 X0.39X1.40 in

Weight: 21g (0.74oz)

Connector Wire Length: JR/Futaba 220 mm

Bearing: 2BB

Tooth Count：25

Features:

* High performance digital standard servo

* High-precision aluminium gears with hard anodizing

* CNC aluminium middle Shel

* Dual ball bearings

Package Included:

1 x PDI-HV2107MG 21g High Torque Digital Standard Servo
