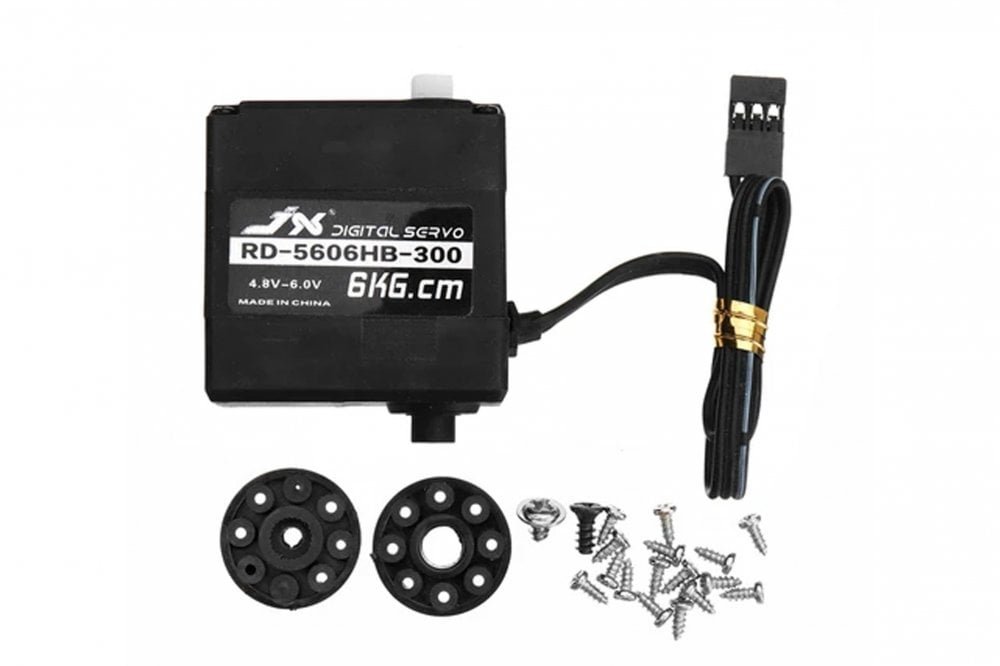

JX Servo RD-5606HB 6kg 300

Code: JX-03-02-RD-5606HB-300

FEATURE:

- High performance robot servo

- High quality core motor

- 300° angle

SPECIFICATIONS:

Dead band: 4μs

Neutral point: 1500μs

Pulse width：500μs-2500μs

Motor: Core

Max angle：300°±2°

Frequency: 330hz

Operating Voltage：4.8V-6V

Operating Speed(4.8V): 0.14sec/60°

Operating Speed(6.0V): 0.12sec/60°

Stall torque(4.8V):5.50kg.cm

Stall torque(6.0V):6.20kg.cm

Dimension: 40.5X20.3X40mm

Weight: 47 g

Connector Wire Length: JR 200mm

Spline Count: 25T
