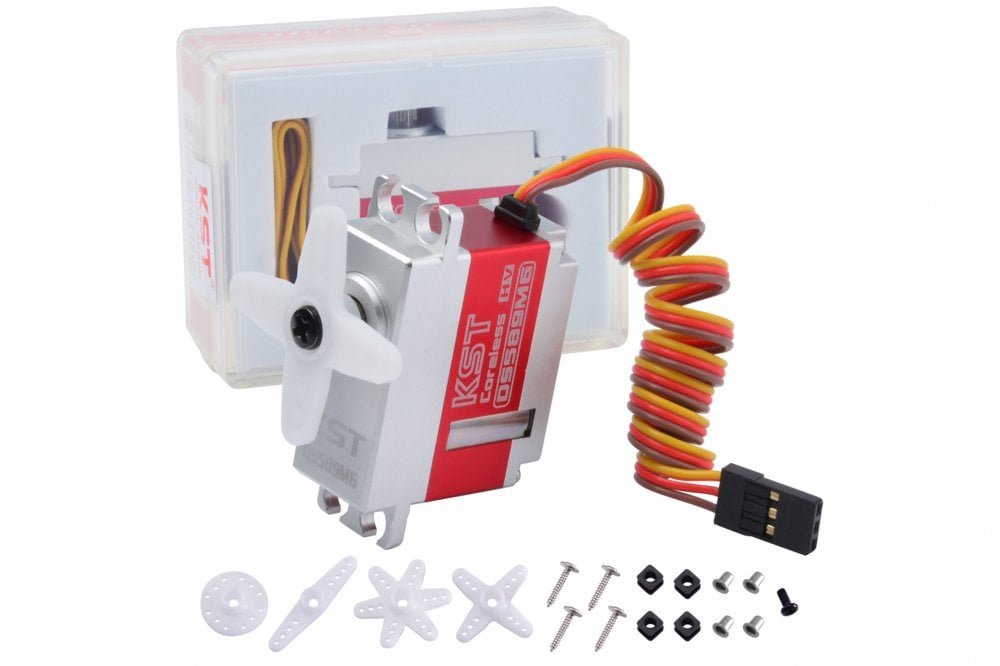

KST DS589MG 9.2KG 0.08sec Digital HV Metal Gear Servo

Code: KST-02-03-DS589MG-9.2KG

KST Servos are renowned for Quality at realistic prices.

From Hobby helicopters and gliders to Industrial and applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a performance-critical RC model or operate industrial grade machinery or robotics KST has a solution for you.

Specification

Operating Voltage: DC6.0V-8.4V

Dimension: 35.50*15*32.70mm

Weight: 40g

Torque:

6.50Kg.cm@ 6.0V

8.00Kg.cm@ 7.4V

9.20Kg.cm@ 8.4V

Speed:

0.10sec/60° @ 6.0V

0.09sec/60° @ 7.4V

0.08sec/60° @ 8.4V

Working Frequency: 1520us/333Hz, 900us-2100us
