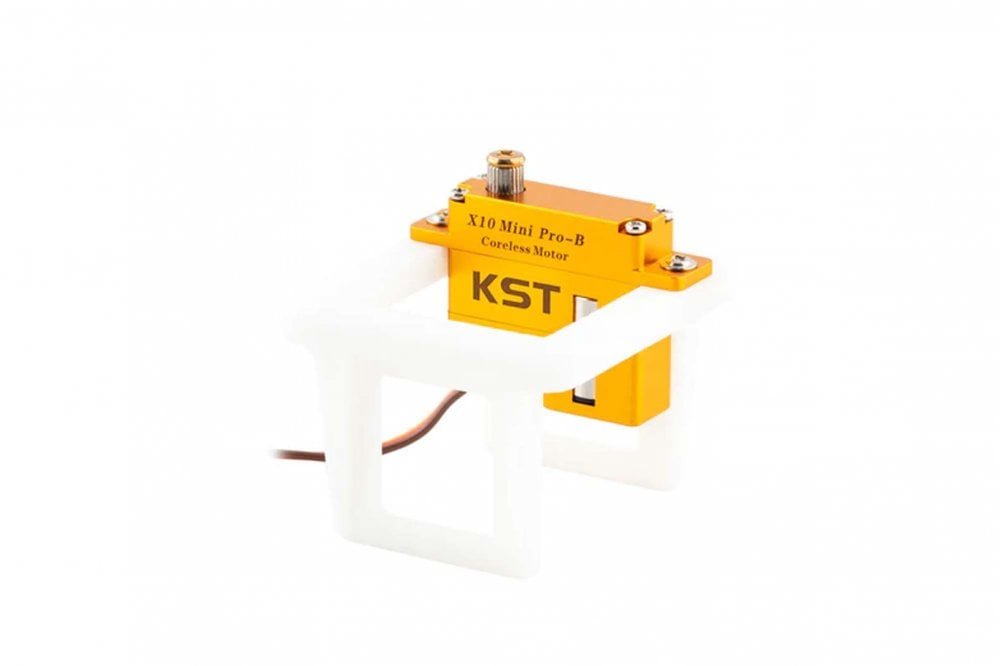

KST - X10 Mini Pro-B Digital Metal Gear Servo 8.0Kgf.cm

Code: KST-03-03-X10-Mini-Pro-B

The new X10 Mini Pro servo is a brilliant mini servo for competition gliders, such as F5J and F5B and large scale gliders.

Compared to the regular X10 Mini servo, it has a higher torque, faster speed with a larger travel angle. X10 Mini Pro servo has an outstanding8.0Kgf.cmtorque and an amazing 0.08sec speed.

Support is available for customizing the servos for a unique flight experience via the programming feature. Moreover, this servo is equipped with a CNC aluminum case and hardened steel gear to improve durability and precision. It is definitely a superb micro servo for a fantastic flight.

Specification:

Item: X10 Mini Pro Servo

Rated Voltage: DC7.4V

Voltage Range: DC4.8V-8.4V

Torque:4.5Kgf.cm@4.8V,6.0Kgf.cm@6.0V,7.2Kgf.cm@7.4V,8.0Kgf.cm@8.4V

Speed: 0.13sec/60°@4.8V, 0.11sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V

Working Frequency: 1520μs/333Hz

Default Travel Angle: ±60°=120° Total

Temperature Range: -10℃.......+65℃

Soft Start: Programmable

Programmable: Yes

Case Material: Aluminium Alloy

Motor Type: Coreless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Case Dimensions: 30mm*10mm* 28mm±0.2mm

Weight: 20g±10%

Package Contains:

1x X10 Mini Pro Servo

1x Servo Horn Screw

2x Plastic Servo Horn

4x Mounting Screw
