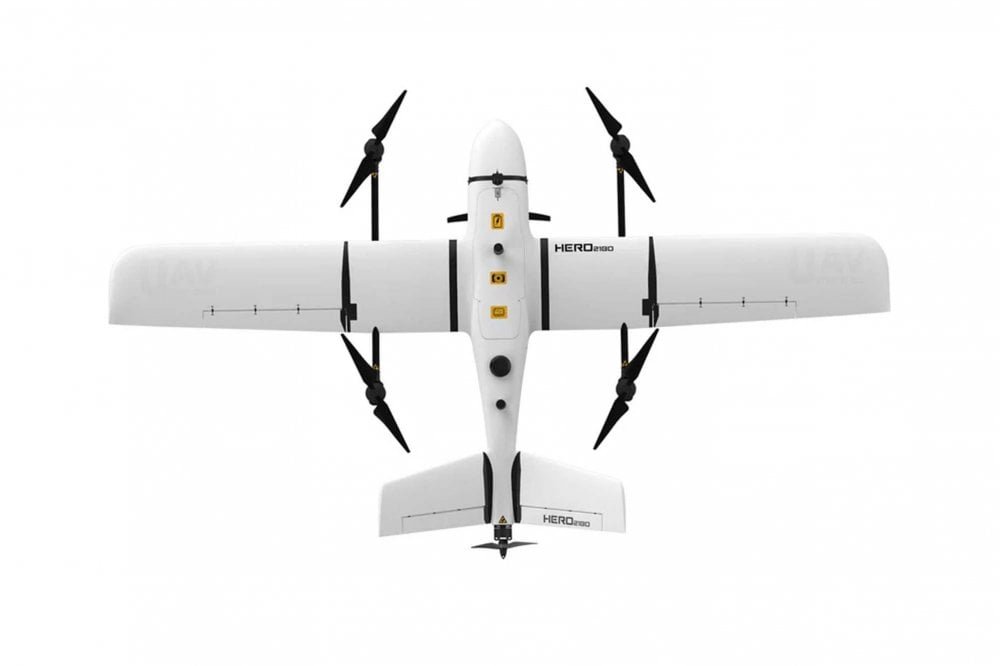

Make Fly Easy MFE Hero 2180mm Wingspan - VTOL

Code: MFE-Hero-VTOL

MFE HERO 2180mm Wingspan Kits

Packages available:

MFE HEROVTOL KIT(With hardware fittings, no electronics):

• 1x HERO left wing root section

• 1x HERO left wing tip section

• 1x HERO right wing root section

• 1x HERO right wing tip section

• 2x HERO Pendant Boom (with fixing parts)

• 4x HERO Pendant Motor Block

• 1x HERO Fuselage (Double Nose)

• 1x HERO Fuselage Accessories

• 1x HERO V-Tail

• 1x HERO PartsKit

• 1x HERO Foam Box

• 1x HERO Carton

MFE HERO - VTOL PNP KIT(Thisis the same as 'VTOL KIT' but also supplied with the following):

• 1x X3520 KV500 motor

• 1x MFE6S 100A Brushless ESC

• 1x Propeller APC1510

• 4x MFE5008 KV450 disc motor

• 4x MFE 6S 50A Brushless ESC

• 2x Carbon Fibre Forward and Reverse Propeller 1555

• 4x Plane Servo MFE 3054

• 1x MFE 3S-14S UBEC 6V10A

• 2xWing Terminal Blocks

• 1xPNP special wire kit

Recommended additional parts: (This is our example of possible build)

• Cube Orange and Here GPS

• Power management and monitoring

• RC controller

• Airspeed Sensor

• Battery suggestion 6S 16000mAh

Features:

The Makeflyeasy HEROVTOL is aversatile and advanced vertical take-off and landing (VTOL) plane designed for multiple applications, including inspection, surveying, mapping, and monitoring. With a wingspan of 2180mm and a wing area of 53dm², it offers stable and efficient flight performance. The HERO VTOL operates at a cruising speed of 17-22m/s and can reach a ceiling altitude of 6500m, making it suitable for high-altitude applications.

Key specifications include a take-off weight of less than 7kg, a load capacity of up to 1kg, and impressive endurance capabilities: 136 minutes for mapping and 125 minutes for monitoring, with a respective range of 144km and 126km. The RC model is built from durable materials such as EPO, carbon fiber, aviation aluminum alloy, and engineering plastics, ensuring robustness and reliability.

The HERO VTOL features quick disassembly without tools, a vertical take-off and landing capability, and excellent wind resistance up to Level 5. The innovative interchangeable nose design allows for the integration of various camera systems, including orthophoto and tilt cameras, enhancing its adaptability and reducing operational costs.

Overall, the Makeflyeasy HEROVTOL is an ideal choice for professionals in need of a reliable and multifunctional for complex tasks.

Specification:

• Wingspan - 2180mm

• Wing area 53dm²

• Cruisingspeed - 17-22m/s

• Stall airspeed - 12m/s

• Maximum climb angle - 3.5°

• Maximum roll angle - 30°

• Take off weight - <7kg

• Ceiling altitude - 6500m

• Vtail angle - 28° up, 20° down

• Working temperature - -10°C-50°C

• Packing box size - 1100x350x430mm

• Vertical arm - 755mm (includingmotor base)

• Body height - 255mm (includingtripod)

• Body length - 1140mm

• Wingmounting angle - 2.9°

• Conversion airspeed - 14m/s

• Maximum dive angle - 5°

• Payload - <1kg

• Take off altitude - <3000m

• Wind resistance - Level 5 (normal operation)

• Disassembly method - Quick disassembly without tools

• Aileron rotation - Up 22°, Down28°

• Take off and landing method -Vertical take off and landing

• Material - EPO, carbon fibre, aviation aluminum alloy, engineering plastic, etc.

• Mapping endurance - 136min/144km (speed 19m/s, load 600g, Battery 6S@22000mah, take-off weight 6.65kg)

• Monitoring endurance - 125min/126km (speed 18m/s, load 450g, Battery 6S@22000mah, take-off weight 6.5kg)
