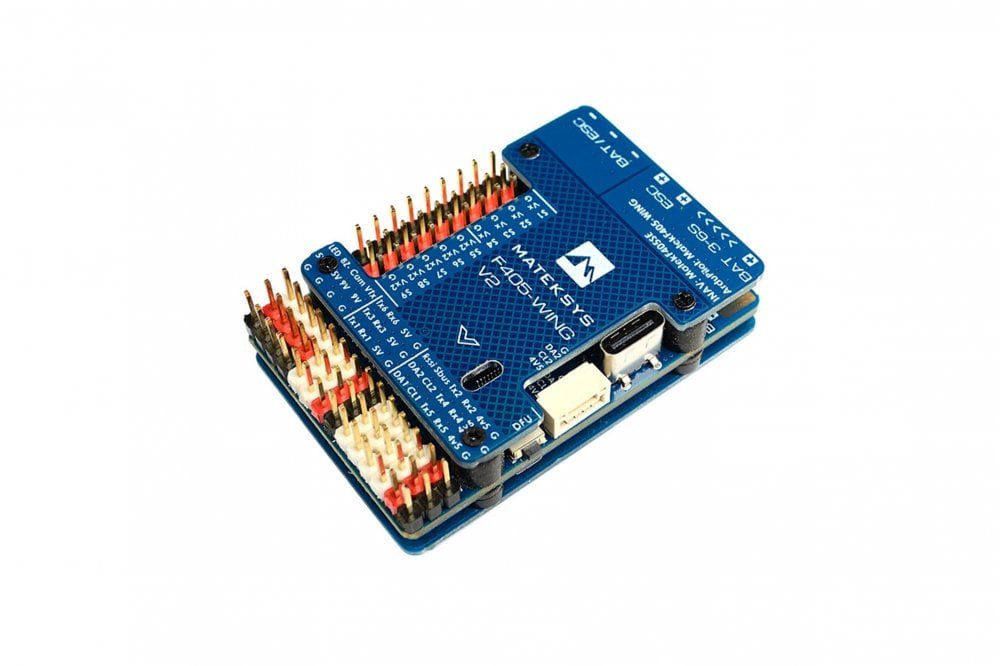

Matek Systems - Flight Controller F405-WING-V2

Package Includes

• 1x F405-Wing-V2

• 1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port

• Dupont 2.54 pins (Board is shipped unsoldered)

FC Specifications

• MCU: STM32F405RGT6, 168MHz, 1MB Flash

• IMU: ICM42688-P

• Baro: DPS310

• OSD: AT7456E

• Blackbox: MicroSD card slot

• 6x UARTs, 1x Softserial_Tx option(INAV)

• 10x PWM outputs

• 2x I2C

• 3x ADC (VBAT, Current, RSSI)

• Built in inverter for SBUS input

• USB Type-C(USB2.0)

FC Firmware

• ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)

• INAV: MATEKF405SE (INAV 6.0 or newer)

PDB

• Input voltage range: 9~30V (3~6S LiPo) w/TVS protection

• Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A/V)

• Sense resistor: 100A continuous, 220A peak

• Battery Voltage divider 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)

BEC 5V output

• Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed

• Continuous current: 2 Amps

BEC 9V /12V output

• Designed for Video Transmitter, Camera, Gimbal ect.

• Continuous current: 2 Amps

• 12V option with Jumper pad

• for stable 9V/12V output, input voltage should > output voltage +1V

BEC Vx output

• Designed for Servos

• Voltage adjustable, 5V Default, 6V or 7.2V options

• Continuous current: 5 Amps, 6A Peak

• for stable Vx output, input voltage should > Vx voltage +1V

BEC 3.3V output

• Designed for external 3.3V peripherals

• Linear Regulator

• Continuous current: 200mA

Physical

• Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

• Dimensions: 54 x 36 x 13 mm

• Weight: 25g
