Matek Systems - Hall Current Sensor 150A

Code: MTS-04-02-HCS-150A

Specifications

• Hall effect current sensor

• No voltage drop and heat on current sensor components

• Offset and Sensitivity are calibrated in factory

• Continuous current rating: 0~150A DC

• Sensitivity: 20mV/A, INAV/BF scale = 200, ArduPilot BATT_AMP_PERVLT = 50

• VBAT voltage sense: 0~69V, INAV scale = 2100, BF scale = 210, ArduPilot BATT_VOLT_MULT = 21.0

• Power Consumption: 17mA

• Voltage offset error at zero current: +-10mV

• Curr output voltage error: 5%

• Operating Temperatures: -30~80 °C

• 23 * 20* 23mm, 7g

• step file HCS-150A_step.zip

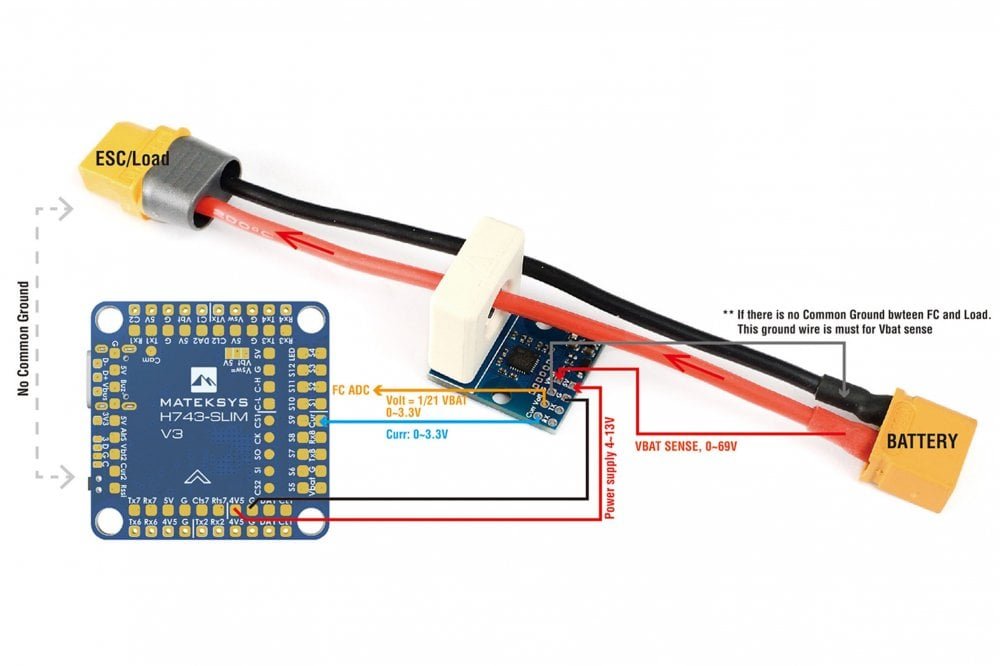

Soldering pads

• Vbat: for voltage sense, support 0~69V IN

• Volt: = 1/21 Vbat, 0~3.3V out

• Curr: Current signal, 0~3.3V out

• 5V: power supply for HCS-150A board, support 4~13V IN, 17mA

• G: GND

• TX/RX: for firmware update and configure (to be supported)

Tips

• mount Hall sensor far from iron and magnetic material

Package contains

• 1 x Hall Current Sensor 150A
