MATEK SYSTEMS - mR900-22 Receiver

Matek Systems- mR900-22 Receiver

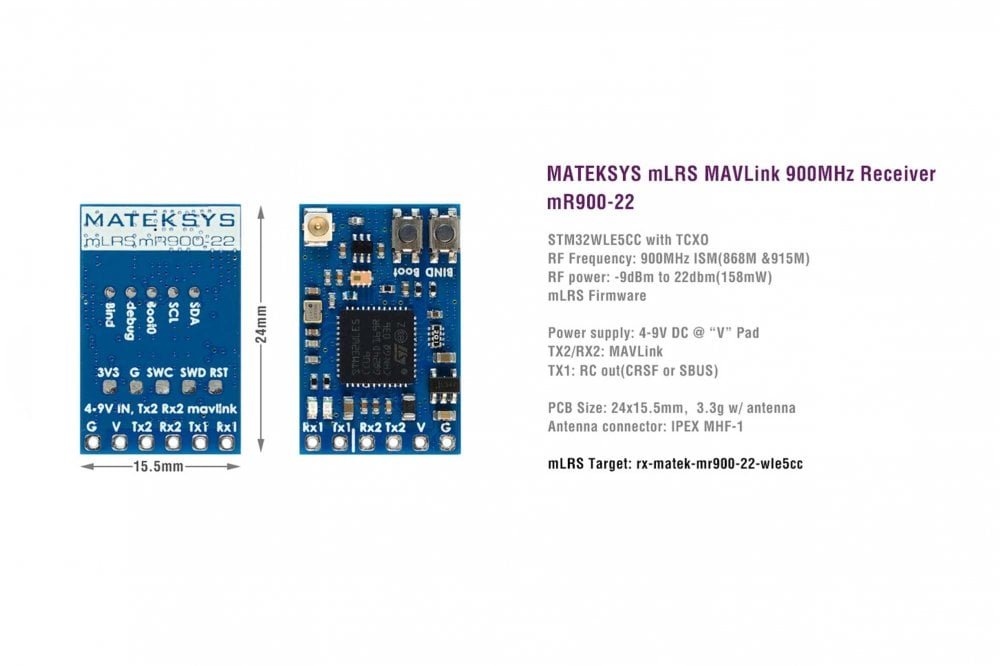

Specification:

mR900-22

• STM32WLE5CC with TCXO, mLRS firmware

• RF Frequency: 900MHz (868MHz, 915MHz FCC)

• RF power: -9dBm(min) / 0dBm / 10dBm / 20dBm / 22dBm(158mW)

• Antenna connector: IPEX MHF-1

• TX2/RX2: Bi-directional Serial MAVLink

• TX1: RC out(CRSF or SBUS)

• 2x buttons for Boot mode and Bind

  • Power supply: 4-9V DC @ “V” Pad

  • Power dissipation: 67mA@5V IN(31Hz, 22dbm)

  • PCB Size: 24 x 15.5 mm

  • Weight: 2.3g w/ antenna

Package contains:

• 1x mR900-22

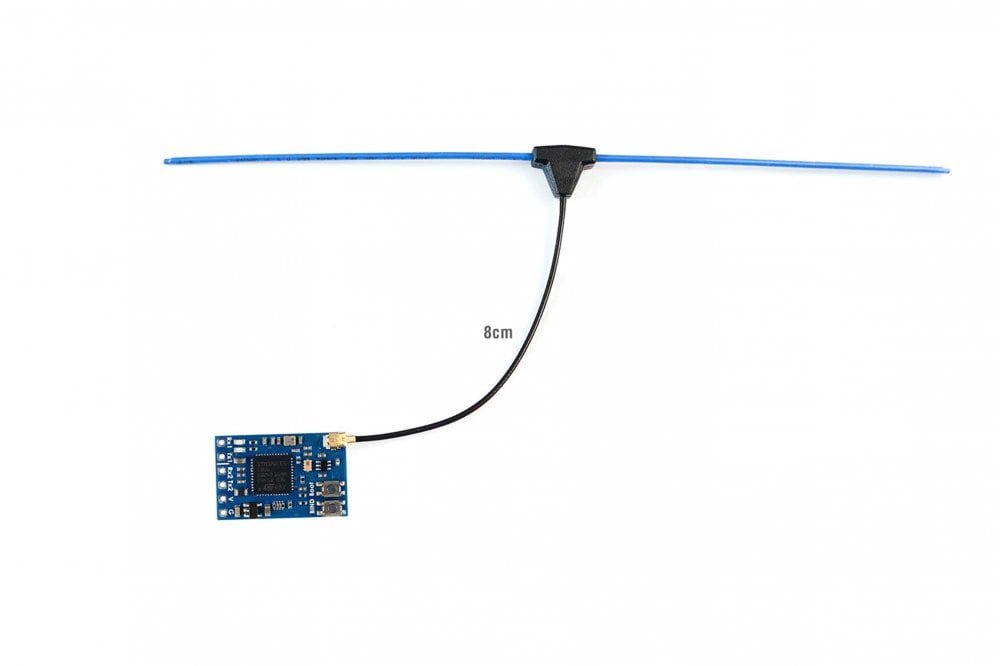

• 1x IPEX MHF1 dipole antenna. 8cm
