MATEK SYSTEMS - mR900-30 Receiver

Matek Systems- mR900-30 Receiver

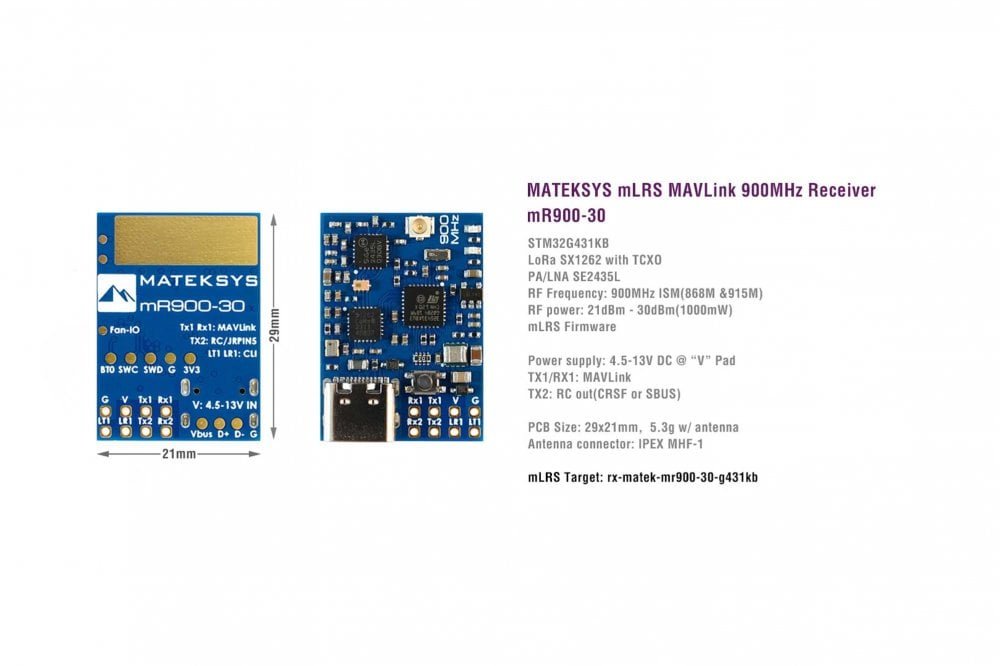

Specification:

mR900-30

• STM32G431KB, mLRS firmware

• LoRa SX1262 with TCXO

• PA/LNA SE2435L

• RF Frequency: 900MHz (868MHz, 915MHz FCC)

• 915MHz RF power: 21dBm(min) / 22dBm / 24dBm / 27dBm / 30dBm(1000mW)

• 868MHz RF power: 24dBm(min) / 24dBm / 24dBm / 27dBm / 30dBm(1000mW)

• Antenna connector: IPEX MHF-1

• TX1/RX1: Bi-directional Serial MAVLink

• TX2: RC out(CRSF or SBUS)

• one buttom for DFU mode and Bind

  • Power supply: 4.5-13V DC @ “V” Pad

  • Power dissipation: 340mA@5V IN(31Hz, 30dbm)

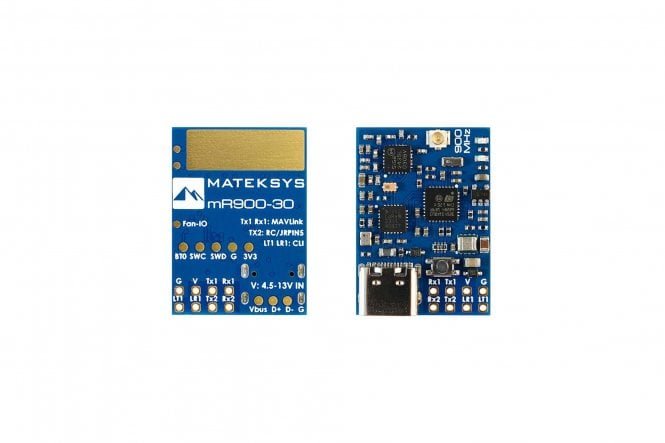

  • PCB Size: 29x21mm

  • Weight: 5.3g w/ antenna

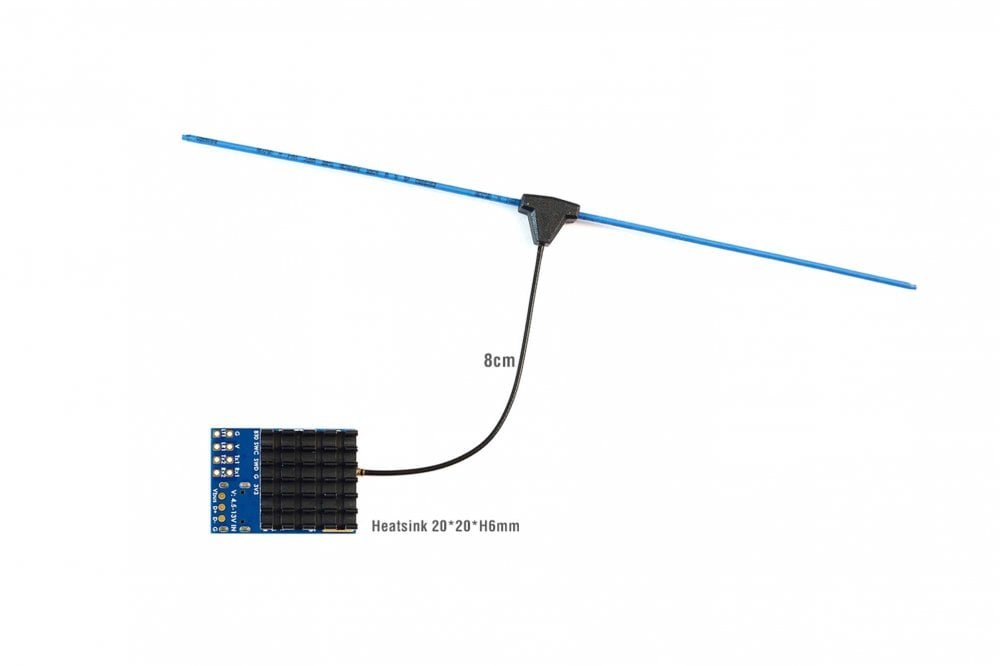

Package contains:

• 1x mR900-30

• 1x IPEX MHF1 dipole antenna. 8cm

• 1x Heatsink 20*20*6mm
