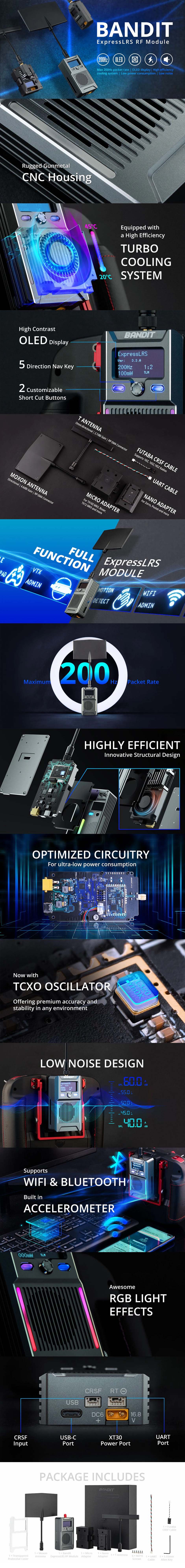

RadioMaster - Bandit ELRS 915MHz RF Module

Code: RM-07-03-Bandit-ELRS-915MHz-RF-Module

The all-newBandit ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance and reliability for your long-range and applications.

It's also built to endure, it is rugged CNC machined aluminum case not only exudes a sleek and modern aesthetic but also serves as a heat sink, efficiently dissipating heat and maintaining optimal operating temperatures under even the most strenuous conditions.

Features an OLED display, a five-directional navigation key, and customizable shortcut buttons, providing you with immediate access to all the essential controls. Easily adjust settings and tailor the module's behavior to your specific needs, ensuring an unparalleled flying experience.

Comes equipped with a RadioMaster T Antenna for general-purpose flying and a RadioMaster Moxon antenna for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional and operations.

Whether you're an experienced enthusiast or a professional operator, the Bandit ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range and technology.

Features:

• Up to 1 Watt power output

• Packet rates up to 200Hz

• Optimized circuitry for ultra-low power consumption

• Built-in TCXO oscillator

• Low noise, high comfort

• High contrast OLED display

• Rugged gunmetal CNC housing

• Awesome RGB light effects

• High efficiency cooling system

• Wifi and Bluetooth support

• Built-in ExpressLRS backpack

• Built in accelerometer

• Directional nav key and customizable shortcut buttons

• Micro and Nano adapters included

• 915/868MHz Moxon Antenna and T Antenna included

• Futaba CRSF Cable included

• UART Cable included

Specifications

• Item: Bandit ExpressLRS RF Module

• Regulatory Domain: FCC915

• MCU: ESP32(main), ESP8285(aux, as ESP backpack)

• RF Chip: SEMTECH SX1276

• Refresh Rate Min/Max: 25Hz/200Hz

• RF Output Power: 1000mW/30dBm

• Module Bay Adapters: Micro standard 5pin socket & Nano standard 8pin socket

• Built-in RGB lights

• Built-in OLED screen

• G-sensor Support: Yes

• XT30 Power Supply Voltage: DC 6V ~ 16.8V

• Weight: 155 grams (with antenna）

• Dimension: 90*51*24mm

Package contains:

• 1x Bandit ExpressLRS RF Module

• 1x T Antenna

• 1x Moxon Antenna

• 1x Micro Adapter

• 1x Nano Adapter

• 1x Transparent Protective Cover

• 1x UART Cable

• 1x Futaba CRSF Cable

• 1x 1.55mm Allen Key

• 6x M2*6 Screws

• 1x Manual
