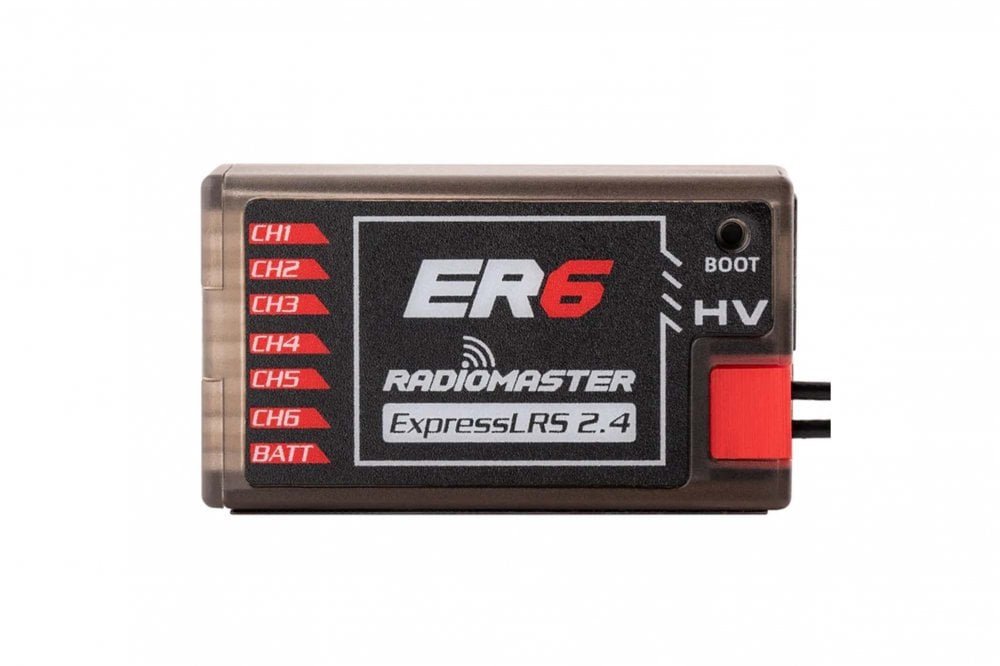

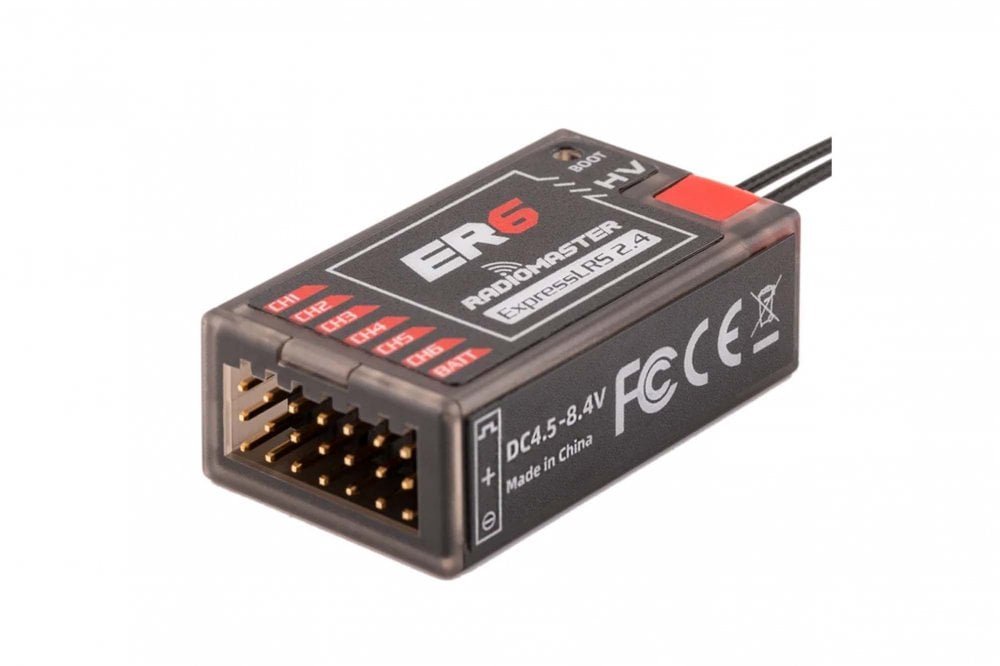

RadioMaster RM-ER6-Receiver

Code: RM-02-06-ER6-Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The ER6 ELRS receiver has been specially designed for plane users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

Features:

· Based on the Revolutionary ExpressLRS System

· High performance, high reliability, flexible configuration, fast response speed and ultra-long range

· Support 6 PWM Channels

· Optimized ground up PCB design

· Automatically voltage telemetry of external battery voltage or built-in receiver voltage

· Supports Wi-Fi updates and WEBUI configuration

· High quality 2.54 mm connector

· Standard 20 cm High Sensitivity Antenna

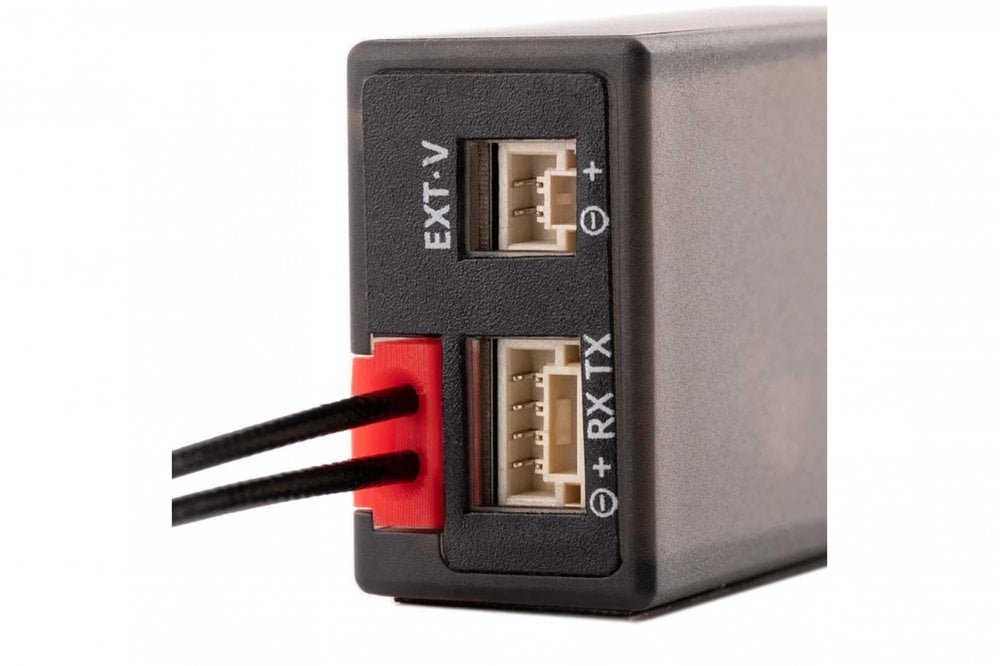

· Reserve 4pin CRSF input port

· The shell adopts one-piece molding process with high structural strength

· For RC plane and more

· Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification:

· Item: ER6 2.4GHz ELRS PWM Receiver

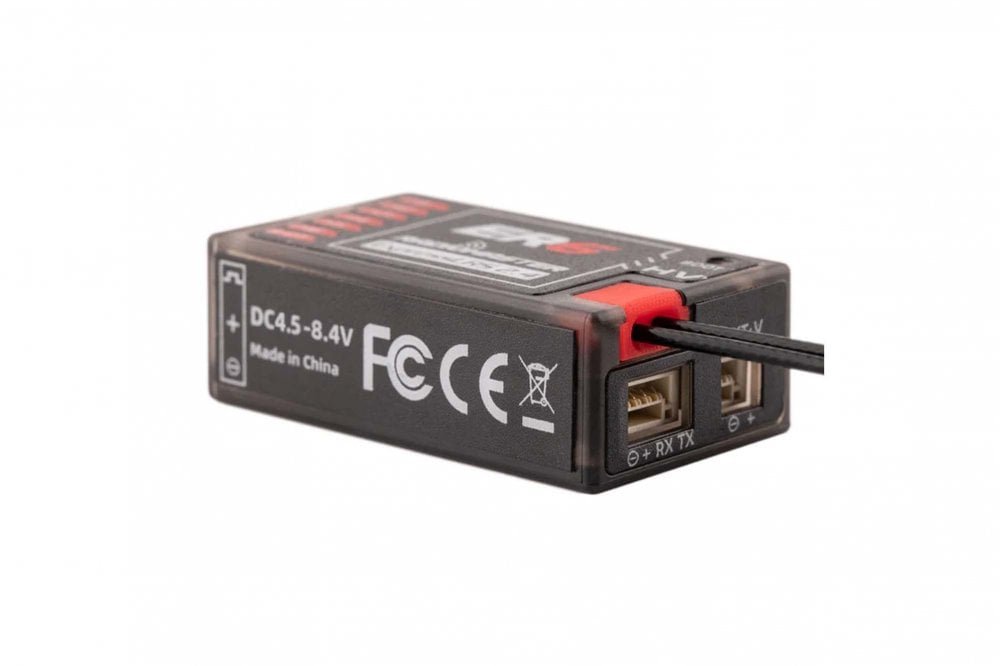

· Power supply: DC 4.5 - 8.4V

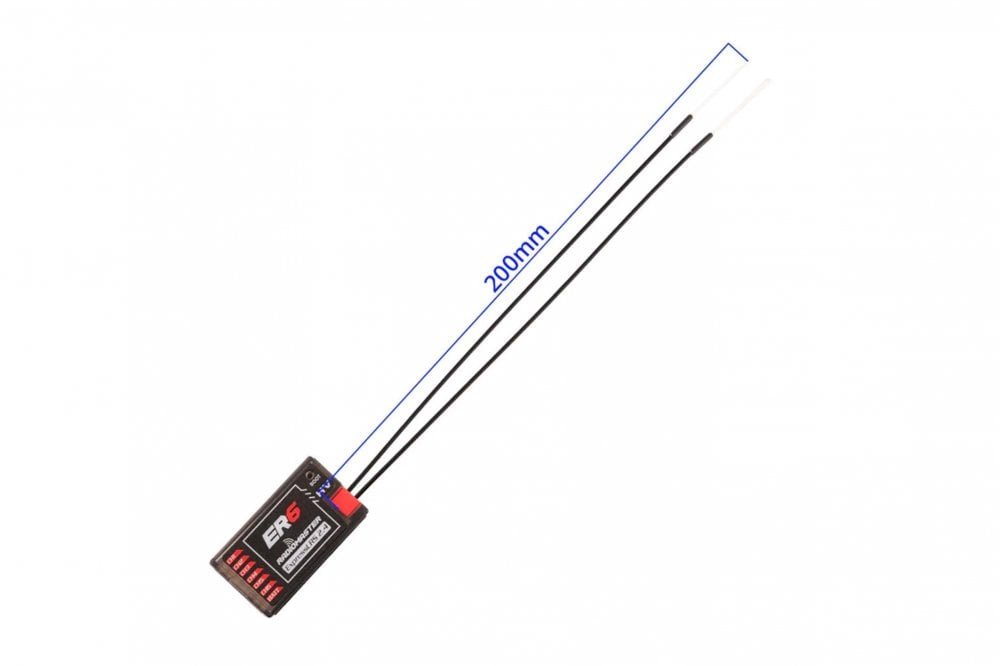

· Antenna type: 20cm high sensitivity dual antenna

· Wireless protocol: ExpressLRS 3.3.0 pre-installed

· Output channel: 6CH PWM

· Serial Output: CRSF / Sbus

· Telemetry power: maximum 100mw (LUA Adjustable)

· Telemetry Battery voltage detection range: DC 4.0 - 35V

· Bus interface: CRSF

· Weight: 14.5 grams

· Dimensions: 43*25*15mm

· Firmware: Device Category: Radiomaster 2.4Ghz / Device: ER6 2.4GHz Diversity+6xPWM RX

Package Contains:

· 1x ER6 2.4GHz ELRS PWM Receiver

· 1x Voltage telemetry wire (Type-B)

· 1x CRSF wire

· 1x ELRS- RX- SBUS wire
