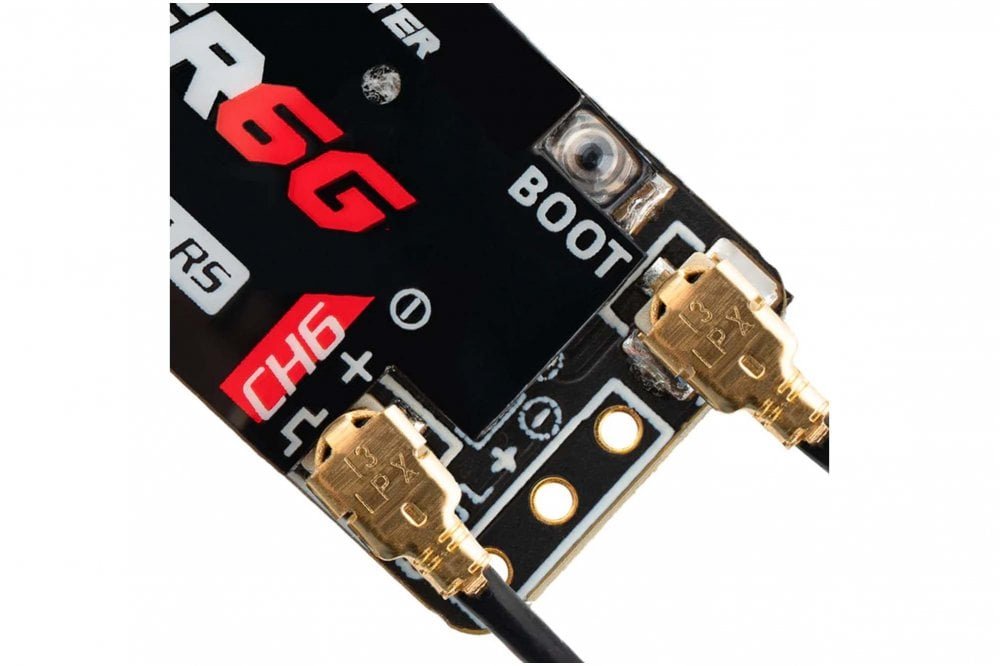

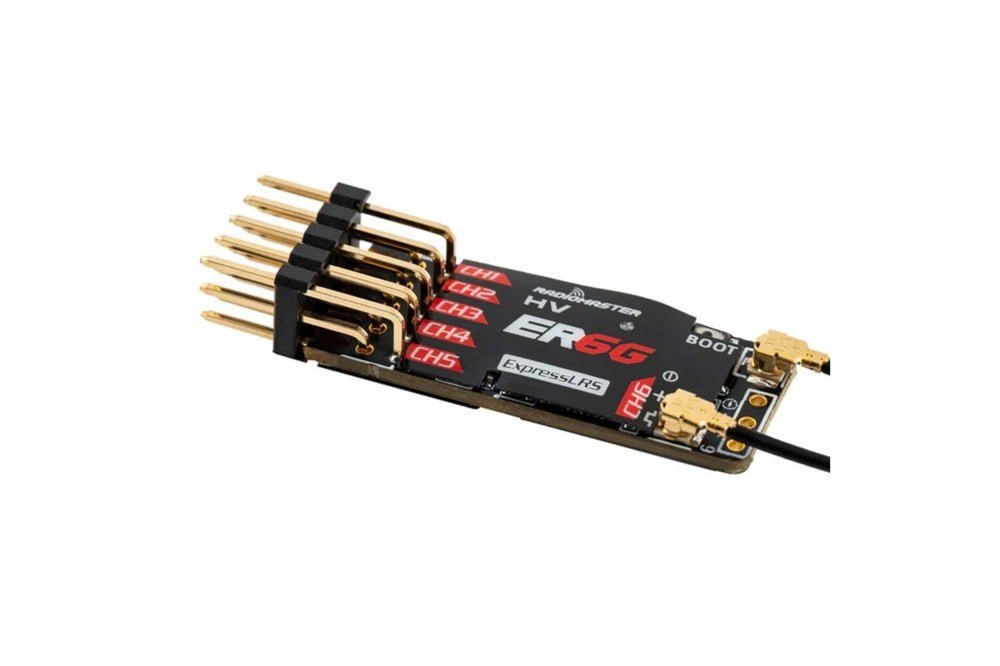

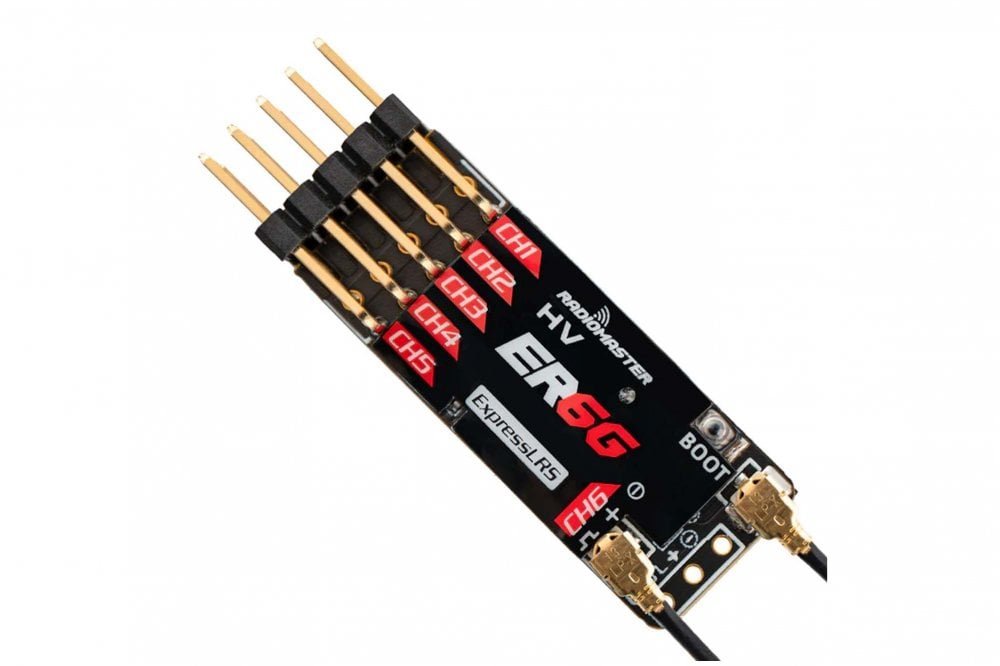

RadioMaster RM-ER6G-Receiver

Code: RM-02-05-ER6G-Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The ER6G receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.

Features:

· Based on the Revolutionary ExpressLRS System

· High performance, high reliability, flexible configuration, fast response speed and ultra-long range

· Support 6 PWM Channels

· Optimized ground up PCB design

· Automatically voltage telemetry of external battery voltage or built-in receiver voltage

· Supports Wi-Fi updates and WEBUI configuration

· High quality 2.54 mm connector

· Standard 15 cm High Sensitivity Antenna

· For plane model and gliders

· Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification (ER6G):

· Item: ER6G 2.4GHz ELRS PWM Receiver

· Power supply: DC 3.5 - 8.4V

· Antenna type: 15cm high sensitivity antenna

· Wireless protocol: ExpressLRS 3.3.0 pre-installed

· Output channel: 6CH PWM

· Serial Output: CRSF / Sbus

· Telemetry power: maximum 50mw (LUA Adjustable)

· Battery voltage detection range: DC 3.0 - 26V

· Weight: 5.0 grams

· Dimensions: 42*13*8mm

· Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-G 2.4GHz Diversity+6xPWM RX

Package Contains:

· 1x ER6G 2.4GHz ELRS PWM Receiver

· 1x Voltage telemetry wire (Type-A)

· 2x Heat-shrink tube

· 1x User Card
