RadioMaster RM-ER8-Receiver

Code: RM-01-04-ER8-Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

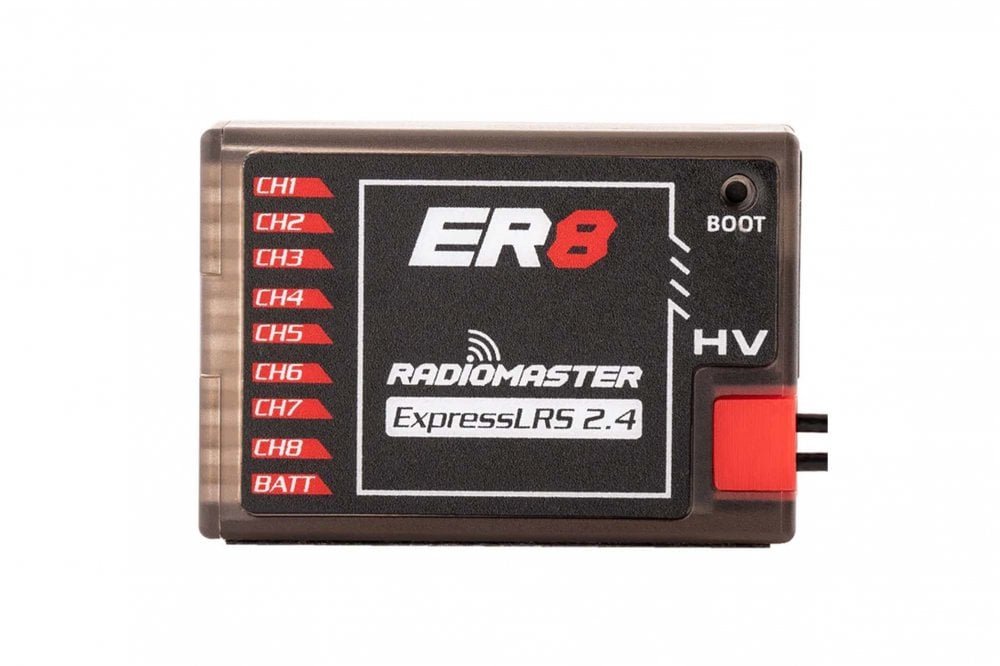

The Radiomaster ER8 receiver has been specially designed for plane users. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER8 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

Features:

· Based on the Revolutionary ExpressLRS System

· High performance, high reliability, flexible configuration, fast response speed and ultra-long range

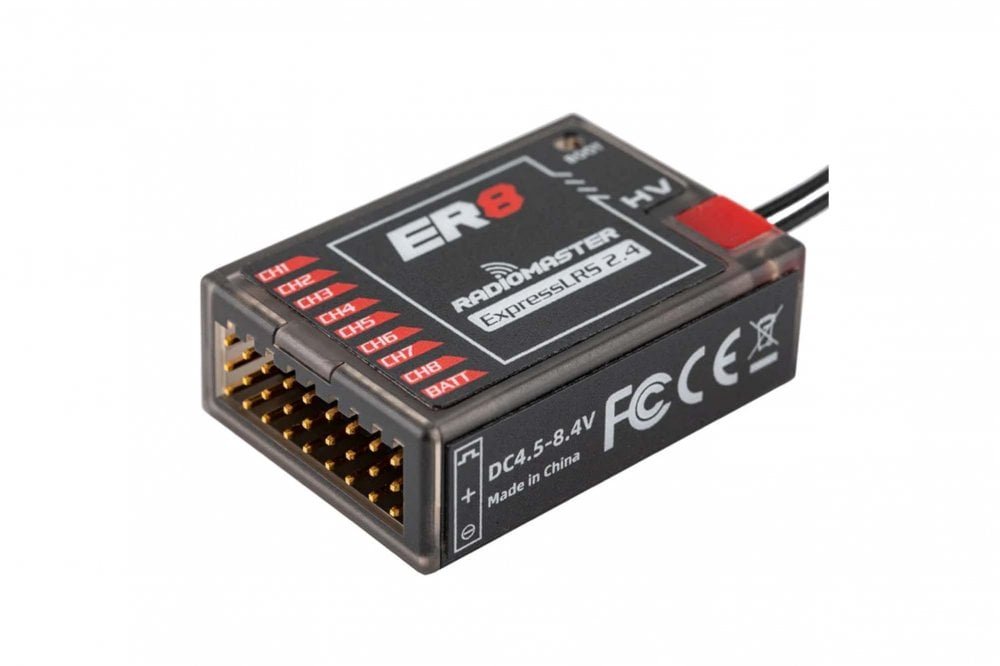

· Support 8 PWM Channels

· Optimized ground up PCB design

· Automatically voltage telemetry of external battery voltage or built-in receiver voltage

· Supports Wi-Fi updates and WEBUI configuration

· High quality 2.54 mm connector

· Standard 20 cm High Sensitivity Antenna

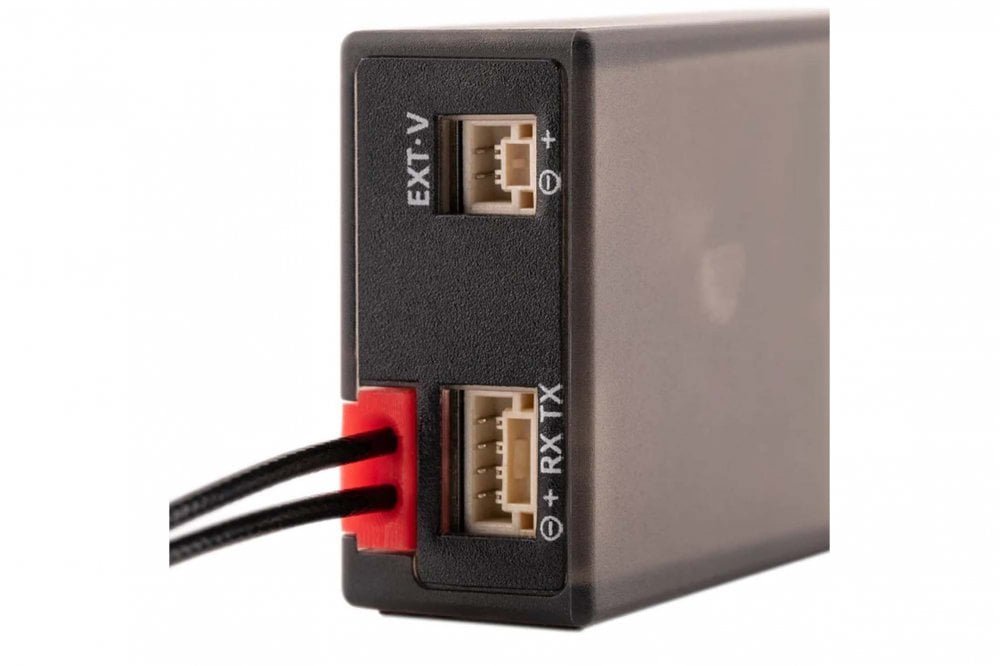

· Reserve 4pin CRSF input port

· Shell adopts one-piece molding process with high structural strength

· For RC plane and more

· Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification:

· Item: ER8 2.4GHz ELRS PWM Receiver

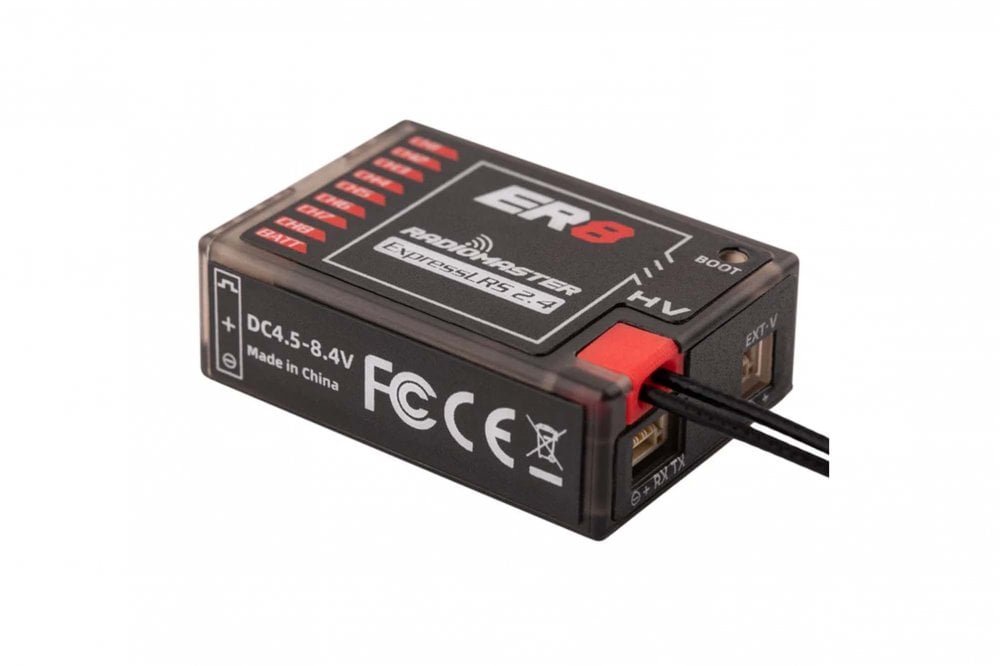

· Power supply: DC 4.5 - 8.4V

· Antenna type: 20cm high sensitivity antenna

· Wireless protocol: ExpressLRS 3.3.0 pre-installed

· Output channel: 8CH PWM

· Serial Output: CRSF / Sbus

· Telemetry power: maximum 100mw (LUA Adjustable)

· Battery voltage detection range: DC 4.0 - 35V

· Bus interface: CRSF

· Weight: 16.5 grams

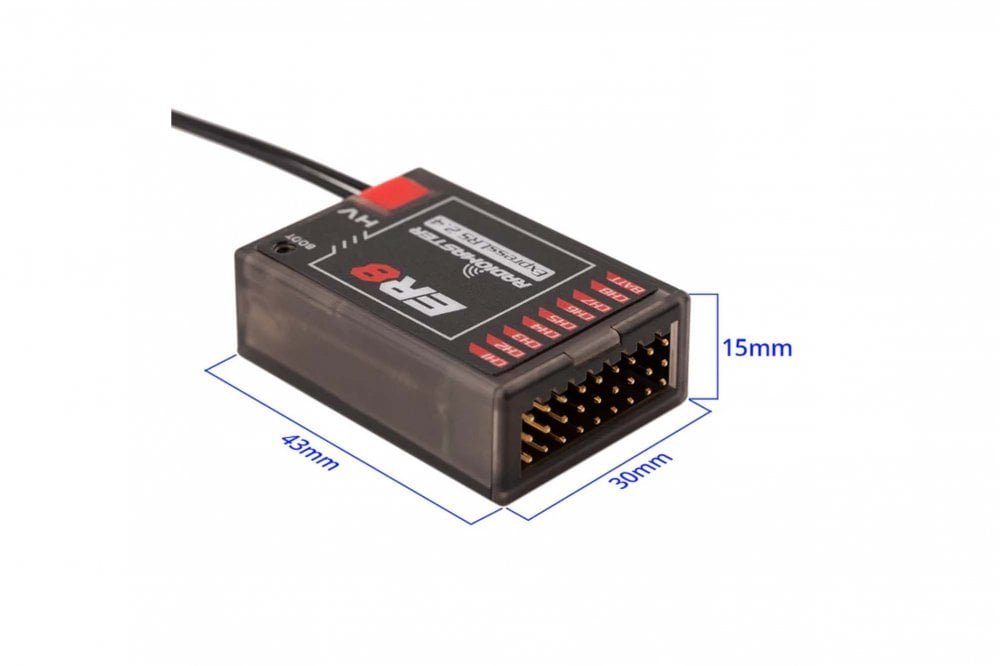

· Size: 43*30*15mm

· Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER8 2.4GHz Diversity+8xPWM RX

Package Contains:

· 1x ER8 2.4GHz ELRS PWM Receiver

· 1x Voltage telemetry wire (Type-B)

· 1x CRSF wire

· 1x ELRS- RX- SBUS wire

· 1x User Card
