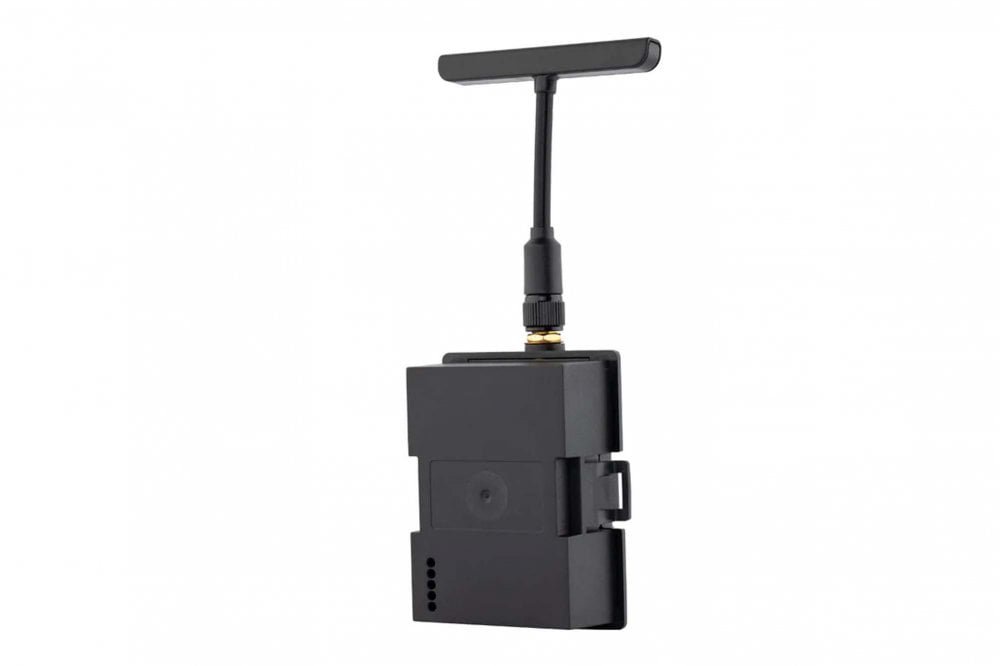

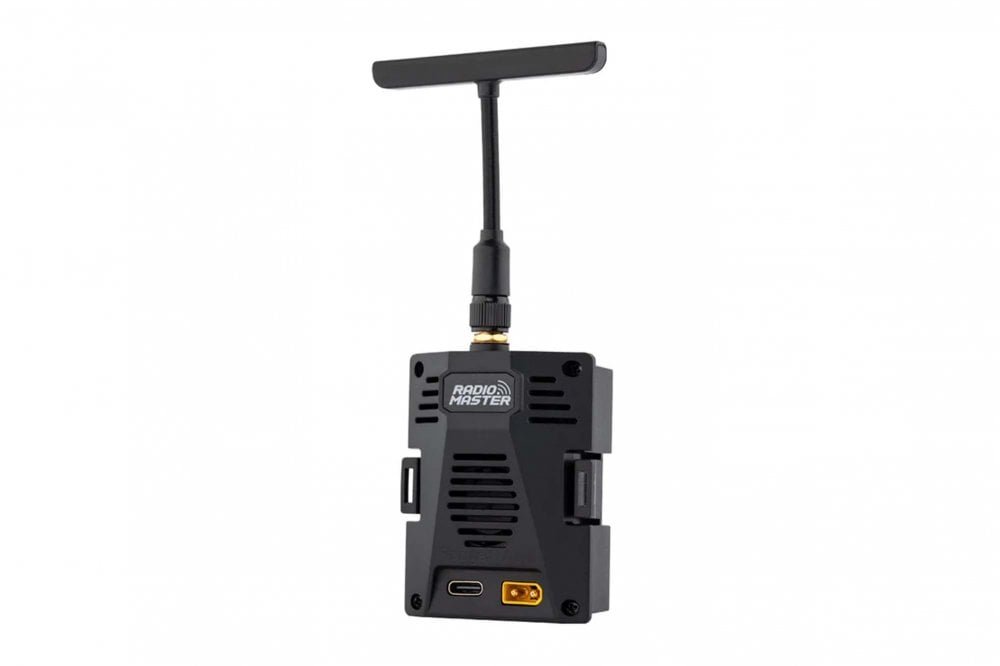

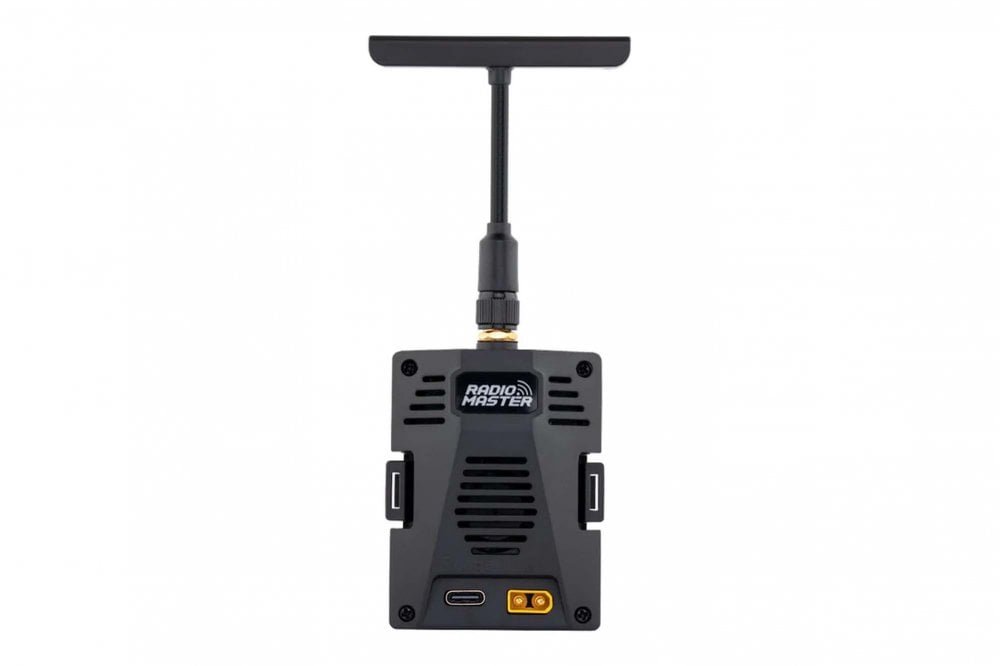

RadioMaster RM Ranger-Micro-LBT

Code: RM-01-07-Ranger-Micro-LBT

Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkIITX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Features:

· Built-in ExpressLRS Backpack

· High-efficiency cooling system

· Wifi and Bluetooth support

· Packet rates up to F-1000Hz

· T-antenna included

· With the Micro connector, support TX16S MKII and TX12 MKII radio

Specification:

· Item: Ranger Micro Module

· Regulatory Domain: ISM2400

· MCU: ESP32(main), ESP8285(aux,as ESP backpack)

· RF chip: SX1281IMLTRT

· Frequency Range: 2400 MHz - 2480 MHz

· Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)

· Minimum receiver refresh rate: 25Hz

· RF Output Power: Default 100mW

· Wifi Support: Yes

· Bluetooth support: Yes

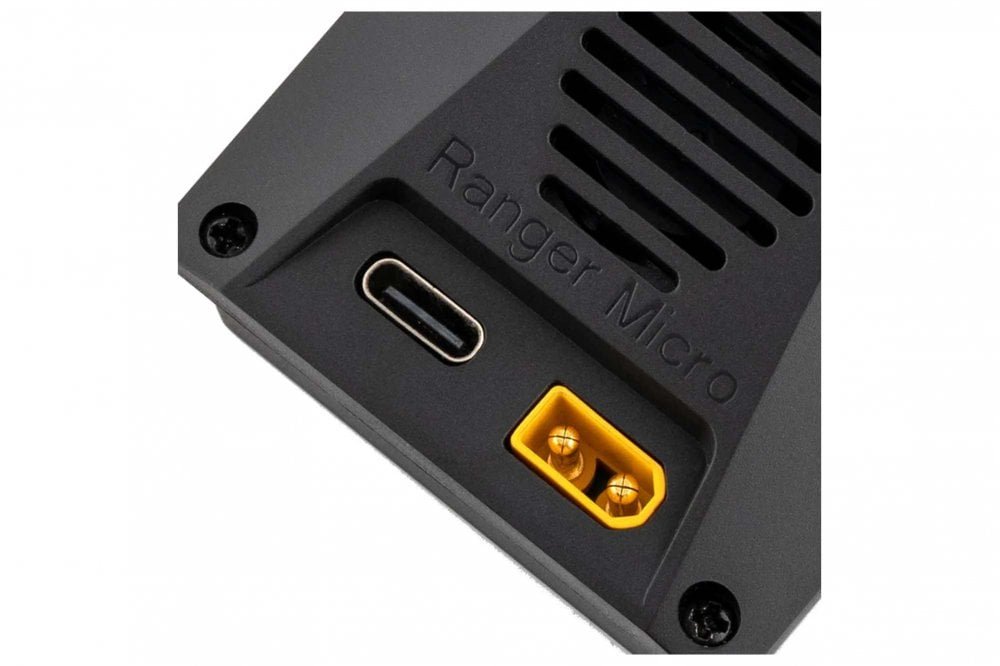

· XT30 Power supply voltage: DC 6V - 16.8V

· Weight: 50g (with antenna) / 40.5g (without antenna)

· Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)

Package Contains:

· 1x Ranger Micro Module

· 1x T Antenna
