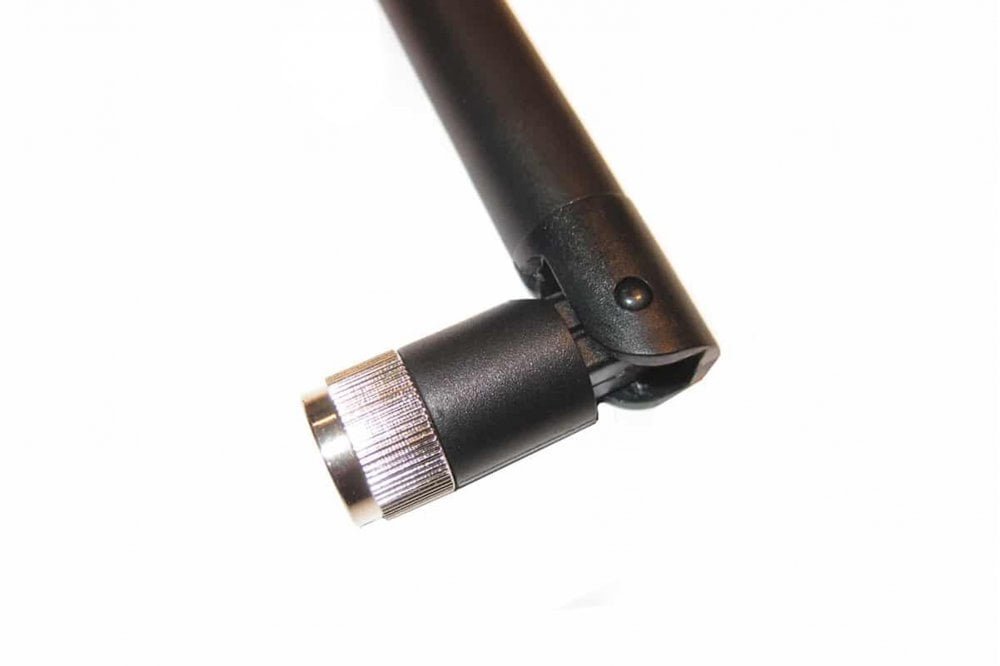

RF Design Antenna 868MHz 3dBi Dipole (RPSMA)

Code: RFD-05-01-868-3dBi-Ant-RPSMA

This antenna is a half wave dipole antennas with a base connector that can swivel up to 90 degrees. It is well suited to ground station, or fixed installation applications. An additional feature of this type of antenna is reduction of local noise introduced into the antenna from electronics connected to the modem.

868MHz half wave dipole antenna with RPSMA connector.

This antenna is a half wave dipole antennas with a base connector that can swivel up to 90 degrees. It is well suited to ground station, or fixed installation applications. An additional feature of this type of antenna is reduction of local noise introduced into the antenna from electronics connected to the modem.

Specifications:

• Frequency range: 860-900MHz

• Gain: 3 dBi

• VSWR: < 1.5

• Impedance: 50R

• Polarisation: Vertical

• Size: 175+23mm long, 12mm diameter

• Weight: 28g
