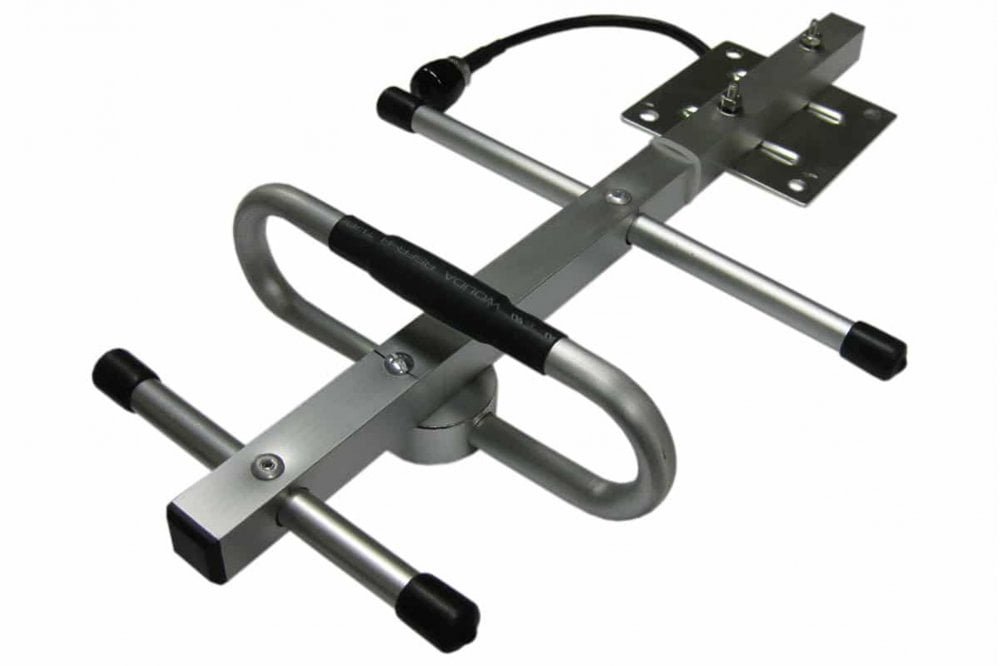

RF Design - Antenna 900MHz 6dBi Yagi

Code:RFD-03-13-6dBi-Yagi-Antenna-900MH

This is a 3 element, yagi antenna operating in the 900MHz band. It is a great antenna for ground control stations or basestations.

Product Description

This is a 3 element, yagi antenna operating in the 900MHz band. It is a great antenna for ground control stations or basestations.

Specifications:

• Antenna Type: Yagi

• Elements: 3

• Frequency range: 902-928MHz

• Gain: 6dBi

• Horizontal beam width: 60 deg

• Vertical beam width: 50 deg

• Front/Back ratio: >13dB

• VSWR: < 1.5

• Impedance: 50 R

• Maximum Power: 100W

• Connector: N-type, female.

• Cable length: ~250mm

• Mounting mast diameter: 35 - 50mm ( Mounting hardware included )

• Length: 325mm

• Width: 200mm

• Height: 55mm

• Weight: 275 g

To use this antenna with an RFD900 modem with RPSMA connectors, you will also need an N-RPSMA adaptor, and RPSMA(M)-(M) cable.
