RF Design - RF Extension Cable-SMA(F)-MMX - 150mm

Code: RFD-03-04-RF-Extension-Cable-SMA(F)-MMX-150mm

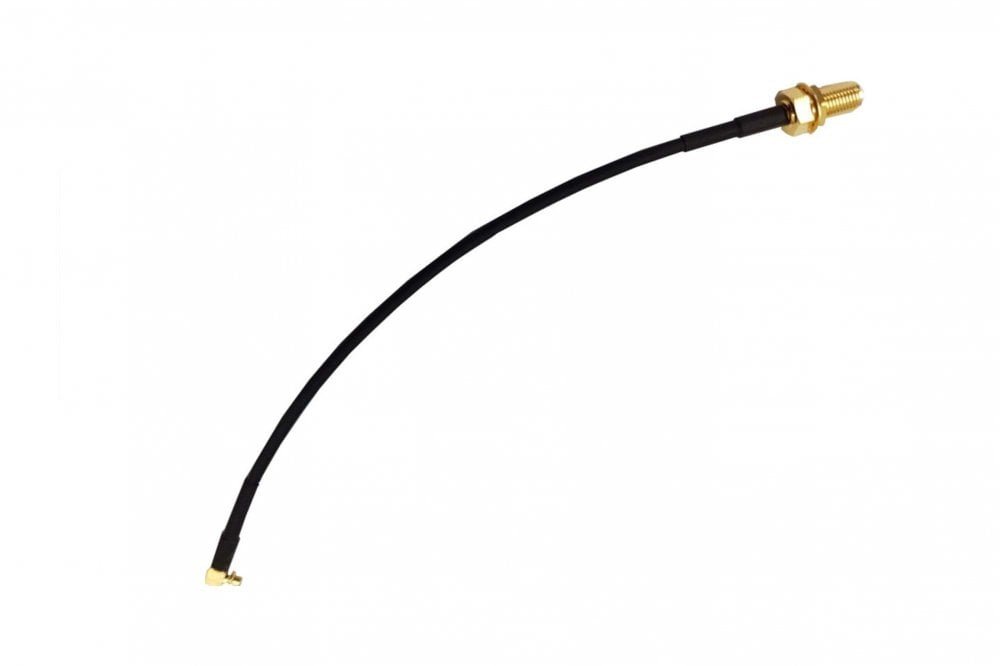

This is anRF extension cable with SMA (F) - MMX Male Right Angle (R/A) terminations.

It has a bulkhead connector on the SMA(F) end to allow mounting through panels to get the best antenna location. The bulkhead will allow connection to all of our antennas in the web store. The bulkhead fitting will allow approximately a 6mm thick wall to be penetrated, with allowance for the lock washer, nut and terminating cable/antenna to be connected on the other side.

It can be connected end to end to make custom lengths (losses will be added together on subsequent cable lengths.

Specifications:

• Total length: 171 mm

• Insertion loss @ 915 MHz: TBA dB - typical

• Insertion loss @ 2450 MHz: TBA dB - typical

• Insertion loss @ 5550 MHz: TBA dB - typical

• Cable type: RG-174/U

• Cable thickness: 2mm

• Cable length: 150 mm

• Weight: 7g ( TBA oz )

Package contains:

1x RF Extension Cable-SMA(F)-MMX (M)R/A-RG-174/U - 150mm
