RF Design - RFD900x TXMOD V2.2 (RC Transmitter Module) - Bundle

Code: RFD-Bundle-TXMOD-900x

Includes:

• 1 x RFD TXMOD 900 V2.2

• 1 x RFD900x Radio Modem

• 1 x Antenna, 900MHz Quarter wave monopole 2.1dBi

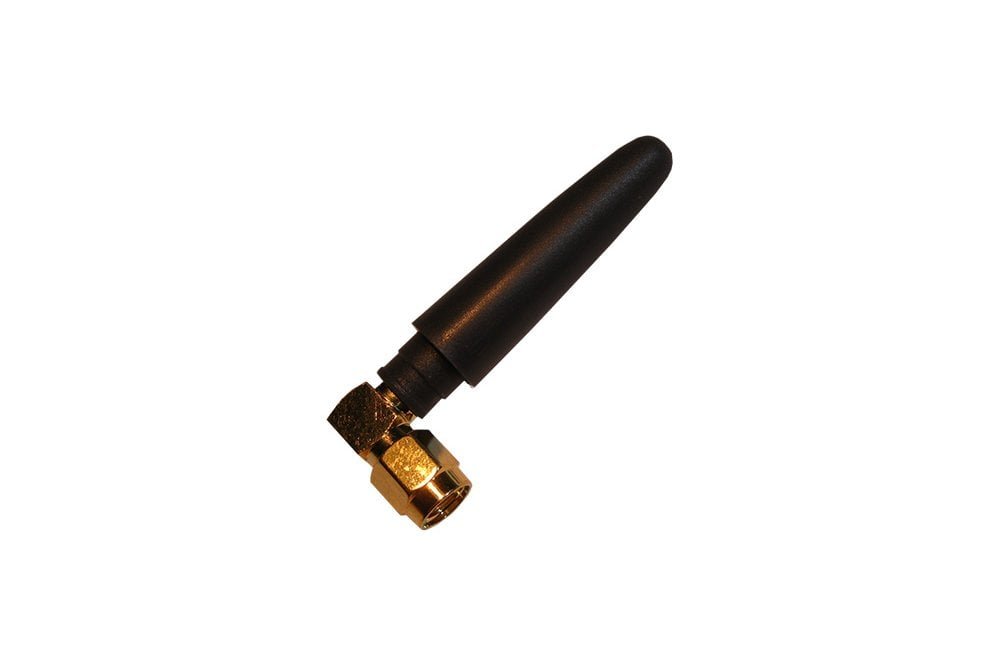

• 1 x Antenna, 900MHz Right Angle Quarter wave monopole 2.1dBi

• 4 x Antennas, 900MHz Half wave dipole 3dBi

Please order connection cable separately

Note: You may wish to add an FTDI cable sold separately here

RFD900 TXMOD V2.2

The RFDesign TXMOD is an all-in-one long-range telemetry data and RC control system.

**Compatibility note: The TXMOD works with X and UX modems only. **

The TXMOD V2 release supports SPORT telemetry data from the vehicle back to the RC transmitter unit.

Designed to work in conjunction with any Radio Controller capable of accepting JR Transmitter Modules, the RFD TX Module can transmit the PPM stream from the controller to the vehicle via the RFD868x long range telemetry modem while also receiving telemetry data received from the model.

The module's built in WiFi link allows for simple webpage-based configuration and broadcasting of telemetry data to a computer or smart device.

It is a JR style module that plugs into most RC transmitter that has CAN accept JR style modules (Frsky Taranis, JR, Frsky Horus, Radio Master TX165).

It provides a bridge between the RC transmitter and model while carrying RC PPM data and mavlink telemetry streams at the same time.

Please see the files.rfdesign.com.au website for datasheets and user documentation.
