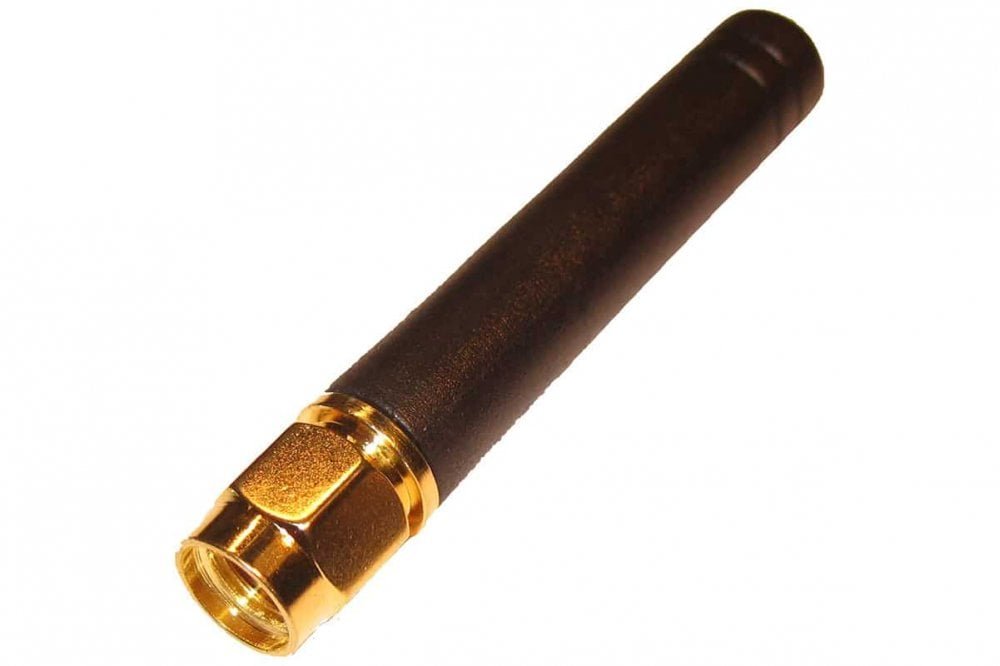

RF Design RFDesign - Antenna 868MHz 2dBi Monopole (RPSMA)
£5.95
In stock — ships from our UK warehouse
- SKU
- SQ1954144
- Category
- Antennas
Description
Code: RFD-02-01-2dBi-Mono-Straight
868MHz quarter wave monopole antenna with RPSMA connector. This antenna is well suited for airborne RC model/FPV applications due to its light weight and small size.
868MHz quarter wave monopole antenna with RPSMA connector. This antenna is well suited for airborne RC model/FPV applications due to its light weight and small size.
It must be mounted on a ground plane to achieve the best performance.
Frequency range: 860-900MHz
Gain: 2.1dBi
VSWR: < 1.5
Impedance: 50R
Polarisation: Vertical
Weight: 10g
Size: 51mm long, 8mm diameter
