RF Design RFDesign - Antenna 868MHz 2dBi Right Angle Monopole (RPSMA)

Code: RFD-02-02-2dBi-Mono-Rt-Angle

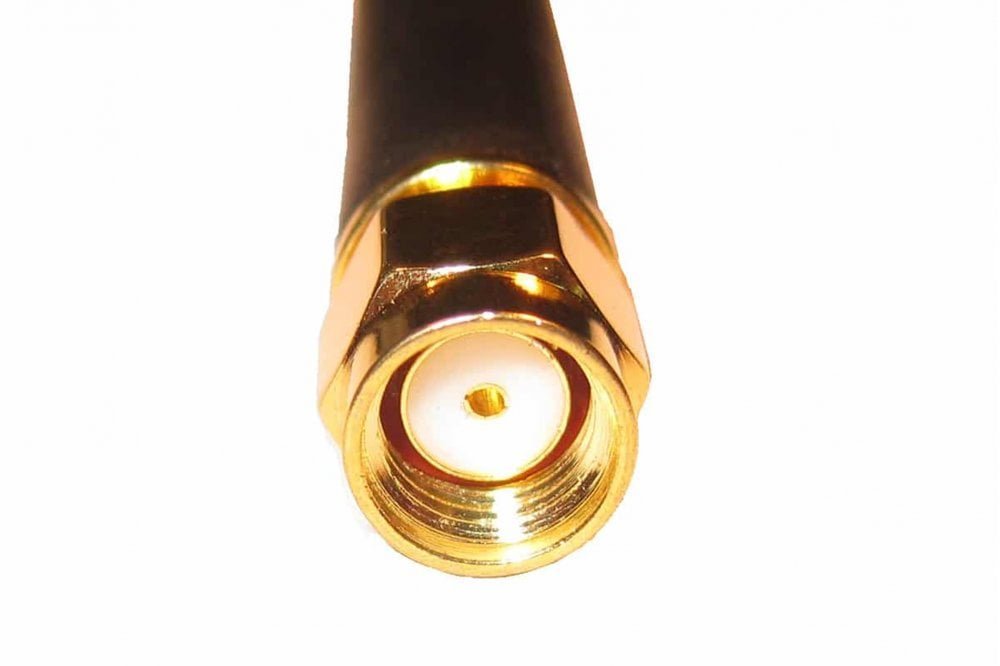

868MHz quarter wave monopole antenna with RPSMA connector. This antenna is well suited for airborne RC model/FPV applications due to its light weight and small size.

868MHz quarter wave monopole antenna with RPSMA connector. 90 degree connector mounting

This antenna is well suited for airborne RC model/FPV applications due to its light weight and small size.

It must be mounted on a ground plane to achieve the best performance. Frequency range: 860-900MHz Gain: 2.1dBi VSWR: < 1.5 Impedance: 50R Polarisation: Vertical Weight: 7.4g Size: 52.2mm long, 10.5mm diameter at base /div>
