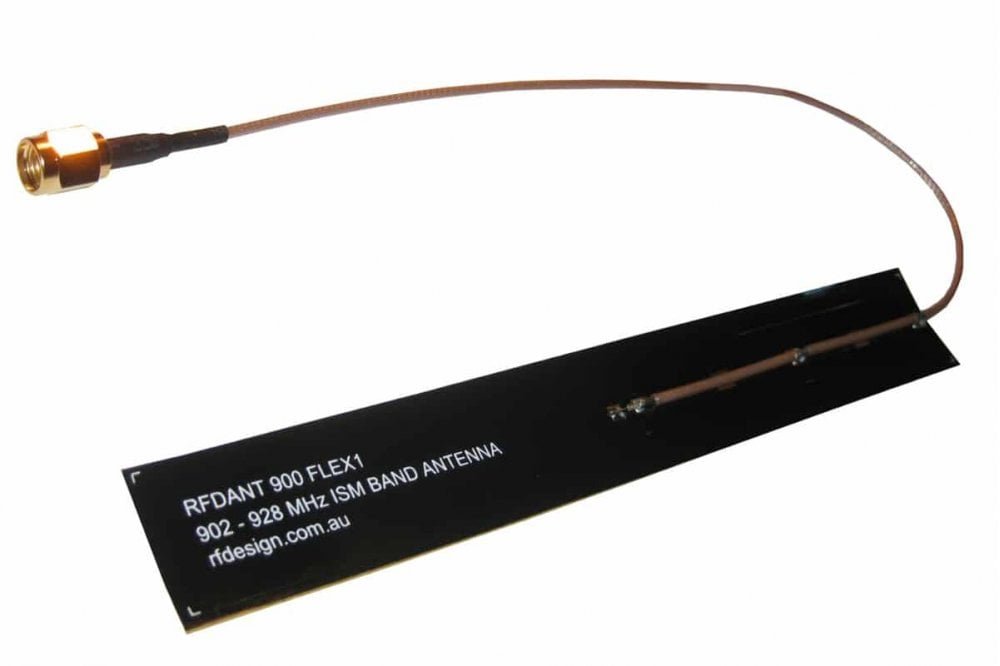

RF Design RFDesign -FLEX1 900MHz Flexible PCB Antenna (300mm RPSMA)

Code:RFD-04-05-FLEX1-900MHZ-300mm

This is one of the lightest and slimmest antennas on the market - Suitable for the 900 MHz ISM band. It is designed to operate in free space, or stuck onto a relatively RF transparent material, eg. Foam wing, fuselage, balsa wing, thin fiberglass.

Product DescriptionThis is one of the lightest and slimmest antennas on the market - Suitable for the 900 MHz ISM band. It is designed to operate in free space, or stuck onto a relatively RF transparent material, eg. Foam wing, fuselage, balsa wing, thin fiberglass. It has better than -10dB return loss when in free space or mounted on foam or balsa. To use this bare antenna - a good quality, thin coaxial cable needs to be soldered on the feed point. We recommend RG316 or better. This antenna is designed to be vertically polarised when mounted vertically. For example, when mounted on a vertical stabiliser of an model, it will radiate the same as a vertically mounted dipole.

Specifications:

• Frequency: 902-928MHz

• Return loss: less than -10dB

• Size: 150 x 21 x 0.1mm

• Weight: 1.3g
