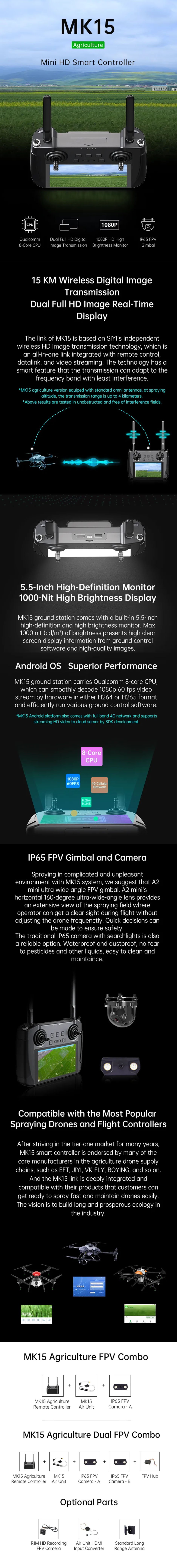

SIYI Technology SIYI MK15 Agri FPV Combo

Code: SIYI-MK15-Agri-FPV-Combo(*UN3481*)

**Note: This product is intended for advanced users. **

Please refer to manufacturer's website for the latest specifications here.

Overall

Max Transmission Range15 km (Unobstructed, free of interference)

Channels

• 13 physical channels

• 16 communication channels

Datalink Compatible Flight Controllers

PX4 / Ardupilot Open-source Flight Controllers: SIYI N7, etc.

Video Stream Compatible Android App

SIYI Original App: SIYI FPV

Open-source GCS: QGroundControl

Applications Planner

Video Stream Compatible Windows GCS

Open-source GCS:

QGroundControl

Applications Planner (H264 only)

Ground Unit (Remote Controller)

Monitor5.5-inch High Definition and High Brightness LCD Touchscreen

SystemAndroid 9.0 OS 2G RAM, 16G ROM

Battery Capacity & Type10200 mAh 7.4V 2S Li-ion, 75.48 Wh

Fast Charging ProtocolPD 20W

Charging Tme5 hours (PD 20W)

Battery Life13 hours

Antenna Gain

• Omni Antenna: 5 dBi

• Long Range Antenna: 11 dBi (included in enterprise edition)

• Lollipop Antenna: 5 dBi (optional)

Interface & Ports

Video Output: Standard HDMI *Enterprise edition only

External Device (Mouse, USB Disk): USB-A

Charging: Type-C Firmware

Upgrade: Upgrade Port (Bottom GH1.25 4Pin)

File Transfer: Type-C / USB-A

Mobile Network: SIM Card Slot

External Storage: TF Card Slot

Tripod Mount: 1/4-inch Standard Screw Hole

Dimensions (Antenna Overlapped)189 x 138 x 41 mm

Weight (Antenna Overlapped)850 g

Waterproof LevelIP53

Working Temperature10℃ ~ 50℃

Air Unit

Signal Output

• 16 channels of SBUS

• 5 channels of PWM

Interface & Ports

S.Bus RC Signal Output: RC (GH1.25 3-Pin)

Datalink (to FC): UART (GH1.25 4-Pin)

PWM Channel 1 to 5: PWM (GH1.25 6-Pin)

Video Input / Network Communication: LAN (GH1.25 8-Pin)

Firmware Upgrade: Type-C

Antenna Gain

• Omni Antenna: 5 dBi

• Lollipop Antenna: 5 dBi (optional)

Working VoltageMK15 Air Unit (included in MK15 agriculture edition): 4S ~ 18S / 16.8 ~ 75.6 V

(Early manufacturing lots support only 6S to 14S, please carefully confirm)

HM30 Air Unit (included in MK15 enterprise edition and MK32): 3S ~ 6S / 12.6 ~ 25.2 V

(Early manufacturing lots of MK15 enterprise edition came with MK15 air unit)

(Early manufacturing lots of HM30 air unit support only 3S to 4S, please carefully confirm)

4S to 18S Power Module (included in MK15 enterprise edition and MK32): 16.8 ~ 75.6 V

Power Consumption

MK15 Air Unit (included in agriculture edition):

Average: 3.2 W

Summit: 12 W

HM30 Air Unit:

Average: 2.8 W

Summit: 12 W

HM30 Air Unit + 4S to 18S Power Module:

Average: 3.2 W

Summit: 12 W

Dimensions (Antenna excluded)70 x 55 x 16 mm (fan included)

Weight (Antenna excluded)

• MK15 Air Unit (included in agriculture edition): 100 g

• HM30 Air Unit: 74 g

• HM30 Air Unit + 4S to 18S Power Module: 109 g

Working Temperature10℃ ~ 50℃
