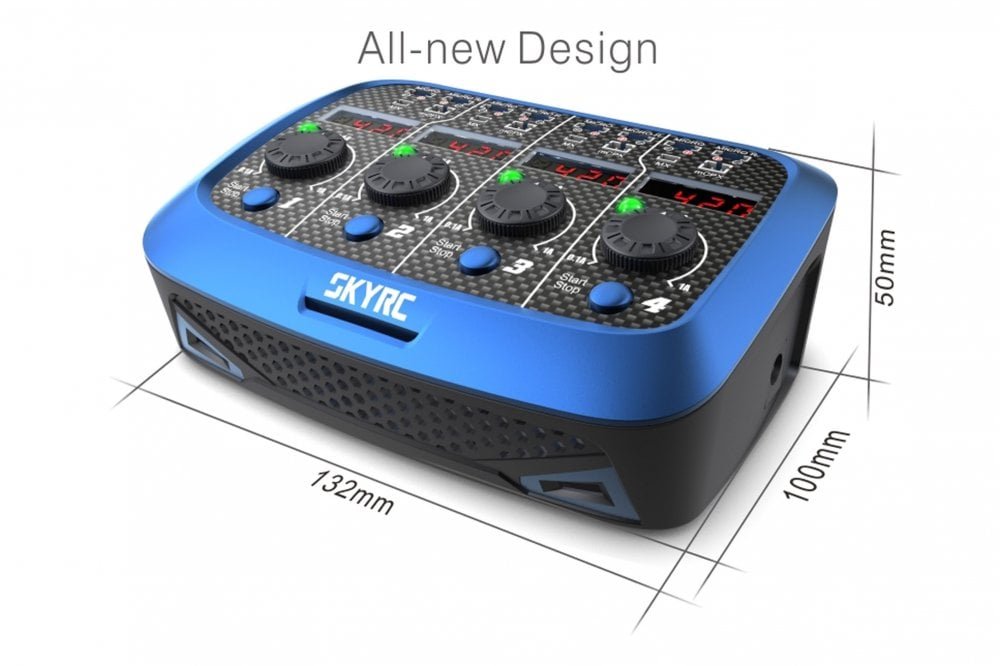

SkyRC - Quattro Micro Battery Charger

Code: SkyRC-Quattro-Micro-Charger

• Quattro Micro Battery Charger employs the circuit that features four totally independent but identical power outputs which are powered 4W each. It is designed for charging single cell LiPo. Insert the lead to the right connector in each port, the charger will charge 4 batteries at the same time.

• Four totally independent but identical power outputs which are powered 4W each are capable of charging four 1S LiPo packs at the same time and fully independently.

• 4 Different Kinds of Battery Connectors.3 connectors for Multiple 1S Micro Heli/Airplane Lipo batteries utilized by E-Flite, LOSI Micro.

• Worldwide operation: need not any alternative switcher, worldwide safe operation, convenient to use at home or at the track.

• Maximum protection: short circuit protection; over current protection; battery reverse polarity protection and DC input voltage protection.

Specifications

AC Input 100-240V

DC Input 11-15V

Charge circuit power 4X4W±10%

Charge current range 0.1-1.0A±10%

Battery type 4X1 cell LiPo

Battery connector type LOSI Micro/Walkera/MX/mCPX

Working temperature 0-50℃

Net weight 280g
