T-Drones VA17

Code: T-Drones-VA17

T-Drones VA17 VTOL RC model

Features:

• Long Flight Endurance The VA17 can achieve up to 120 minutes of flight with an 800g load, making it perfect for long-range applications such as mapping, surveying, and monitoring. The advanced power management system ensures optimal efficiency for extended flight operations.

• Tilt-Rotor VTOL Design Featuring a tilt-rotor design, the VA17 combines the benefits of both vertical take-off and landing (VTOL) with efficient plane cruising, making it adaptable for diverse applications that require both flexibility and endurance.

• Lightweight and Durable Frame Built from a combination of carbon fiber and EPP foam, the VA17 offers excellent rigidity for reliable performance while maintaining flexibility and reducing weight for longer, more efficient flights.

• High-Performance ESC The VA17 is equipped with an 80A 3-in-1 high-performance ESC, providing excellent overload resistance and fast response time. This compact design also achieves a 65% weight reduction compared to traditional single ESCs, enhancing the RC model’s overall performance.

• Enhanced Safety Features The VA17 includes an onboard power management module with dual flight control backup power to ensure a safer flight. Its 8V12A-UBEC provides stable power for the servo system, improving overall flight reliability and simplifying installation.

• High Wind Resistance With a wind resistance level of 5, the VA17 is capable of maintaining stable flight even in challenging weather conditions, ensuring dependable performance in outdoor operations.

The T-Motor VA17 is the ultimate choice for industrial and commercial users seeking a versatile, high-performance plane VTOL that excels in endurance, safety, and adaptability across various applications profiles.

*Required to complete is:

• Flight Avionics such as

• Cube Orange +

• Here 4

• Airspeed Sensor

• RC Equipment

• Battery - 8S - 14500mAh

Specification:

• Model - VA17

• Wingspan - 1680mm

• Frame Length - 1178mm

• Takeoff Weight - 4.3kg

• Load Capacity - 0900g

• Flight Time - 120min (with 800g load)

• Maximum Range - 125km

• Flight Altitude - 100-1000m (typical) 4500m (max)

• Wind Resistance - Level 5

• Max Flying Speed - 25m/s

• Cruising Speed - 15-18m/s

• Control Range - 10-30km

• Recommended Battery - 8S 14500mAh

• Cut off voltage - 24V

• Compatible Flight Control - PIX/CUAV

Included:

• The VA17 comes in a part assembled state with the following electronics installed

• Servos for Ailerons and V-Tail

• Tilting mechanism

• rear locking motor

• Front Tilt motors

• PDB with power to servos (8V) additional 5V and 12V

• All ESCs

• Props included but not fitted

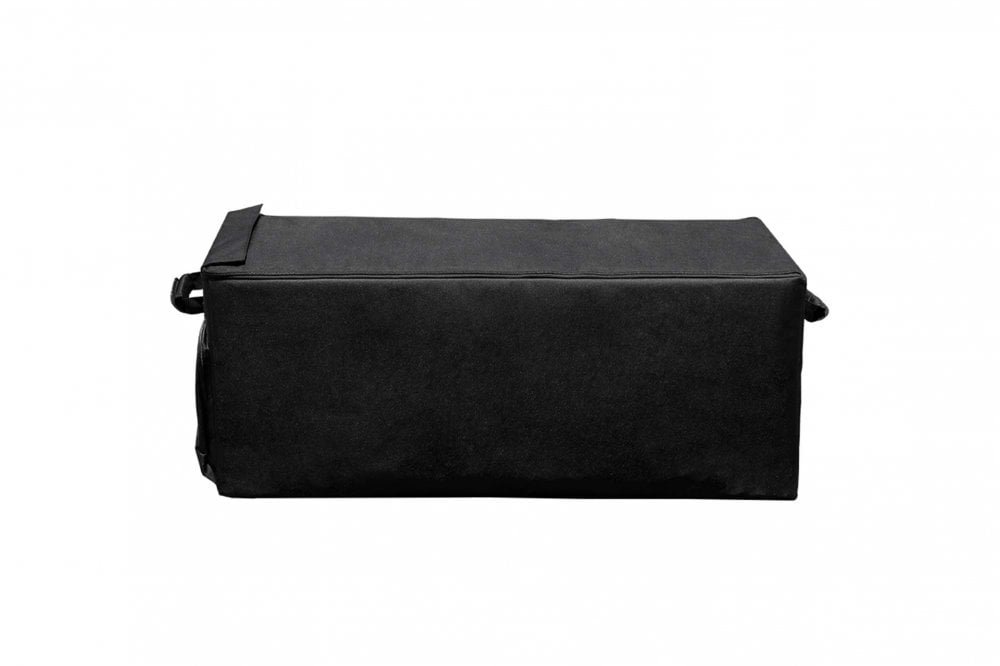

• Fabric and foam carry case

The build of this RC model is suitable for someone with previous experience
